137-332-372 - MTD Lawn Tractor (1987) (Hechinger) Parts Parts Diagram

Lawn Tractor

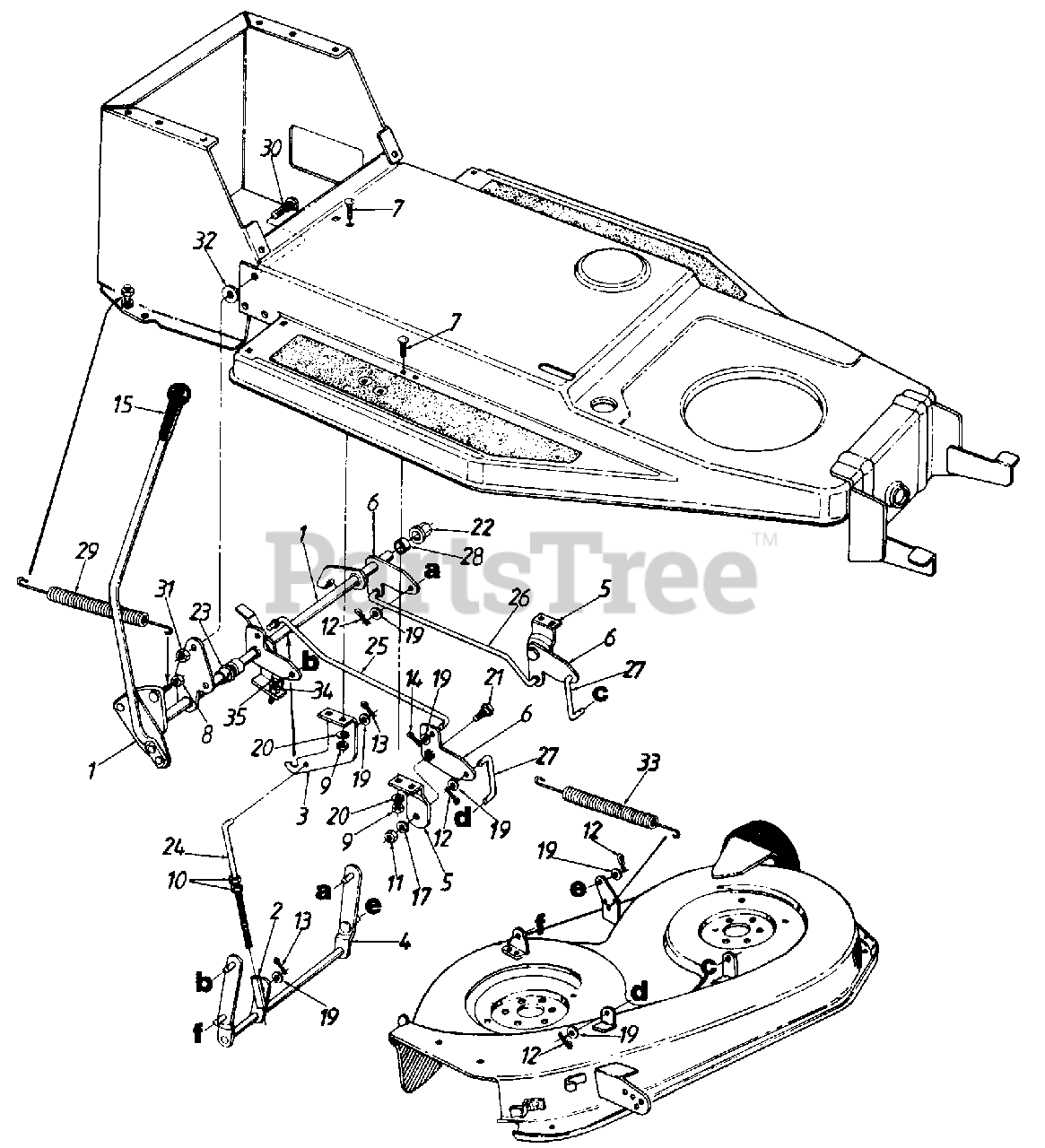

Parts Parts Diagram

  • Title

1

MTD 16661

Lift Shaft Ass'y.
(Superseded to 16842)

$

$

Not available

2

MTD 16682

Pivot Sleeve Ass'y.

$

$

Not available

3

MTD 36683

Deck Lock Out Brkt.

$

$

Currently unavailable

4

MTD 16688

Stabilizer Ass'y.

$

$

Not available

5

MTD 16692

Deck Lift Hanger

$

$

Not available

6

MTD 16698

Deck Lift Float Brkt.

$

$

Not available

7

MTD 710-0134

Carr. Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

9

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

10

MTD 712-0711

Hex L-Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

12

MTD 714-0104

Intern. Cot-Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

13

MTD 714-0115

Cot-Pin 1/8" Dia.

$3.99

$

In Stock, only 1 left!

0

14

MTD 714-0507

Cot-Pin 3/32" Dia.

$4.49

$

In Stock, only 4 left!

0

15

MTD 720-0143

Grip

$

$

Not available

17

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

19

MTD 736-0185

Fl-Wash. .406" I.D. x .75" O.D.

$3.49

$

In Stock, Qty 17

0

20

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

21

MTD 738-0281

Shld Bolt .625 Dia. x .425" Lg.

$9.99

$

In Stock, only 1 left!

0

22

MTD 741-0225

Hex Flange Brg.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

23

MTD 741-0495

Nyliner Flanged Brg.

$4.49

$

In Stock, Qty 12

0

24

MTD 747-0677

J-Bolt 3/8-16 x 5.25" Lg.

$

$

Currently unavailable

25

MTD 747-0678

Connecting Rod-R.H.

$

$

Not available

26

MTD 747-0679

Connecting Rod-L.H.

$

$

Not available

27

MTD 747-0689

Lift Link

$

$

Not available

28

MTD 750-0547

Spacer

$5.49

$

In Stock, only 3 left!

0

29

MTD 732-0153

Spring 8.65" Lg.

$

$

Not available

30

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .80" Lg.

Note: (Special)

$

$

Not available

31

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0354

Fl-Wash. 3/8" I.D.

$3.99

$

Usually ships in 3-6 days

0

33

MTD 732-0564

Deck Spring 10.33" Lg.
(Superseded to 932-0564)

$23.99

$

Usually ships in 3-6 days

0

34

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0
