137-587-000 - MTD Lawn Tractor, Style 71 (1987) Style 7) Parts Diagram

Lawn Tractor, Style 71

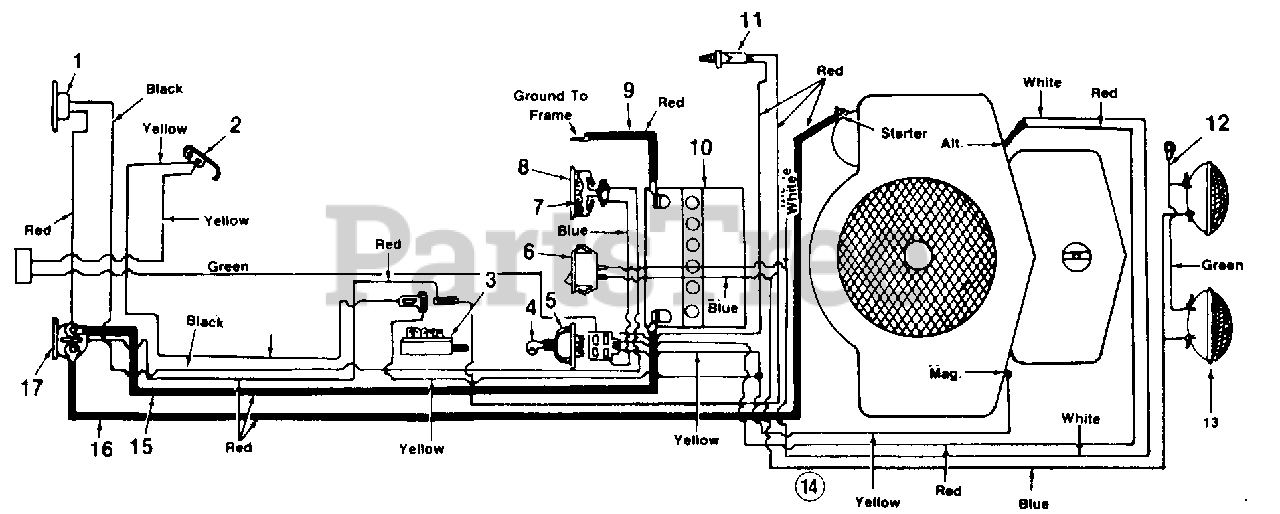

Style 7) Parts Diagram

  • Title
1

MTD Part# 725-0459

Circuit Breaker
(Superseded to 753-0685)
Usually ships in 1 day

$

$28.76

0

2

MTD Part# 725-0759

Spring Switch
(Superseded to 753-0579)
Usually ships same day

Not available

$

$

3

MTD Part# 725-0819

Safety Switch Dpst.
(Superseded to 925-0819A)
Usually ships in 5 to 10 days

$

$24.57

0

4

MTD Part# 725-0201

Ignition Key
(Superseded to 925-0201)
Usually ships in 1 day

$

$6.91

0

5

MTD Part# 725-0267

Ignition Switch
(Superseded to 925-0267B)
Usually ships in 1 day

$

$26.44

0

6

MTD Part# 725-0634

Headlight Switch
(Superseded to 925-0634)
Usually ships in 1 day

$

$12.77

0

7

MTD Part# 722-0135

Foam Strip
Usually ships same day

Not available

$

$

8

MTD Part# 725-0925

Ammeter
(Superseded to 925-0925)
Usually ships in 1 day

$

$21.86

0

9

MTD Part# 725-0994

Grounding Wire 14.0" Lg.
(Superseded to 629-0739)
Usually ships same day

Not available

$

$

10

MTD Part# 725-0453

12 Volt Battery
Usually ships same day

Not available

$

$

11

MTD Part# 725-0577

Safety Switch
Usually ships same day

Not available

$

$

12

MTD Part# 725-0916

Ground Wire
(Superseded to 725-0916A)
Usually ships same day

Not available

$

$

13

MTD Part# 725-0222

Headlight
(Superseded to 925-0222)
Usually ships in 1 day

$

$42.24

0

14

MTD Part# 725-1179

Wire Harness
Usually ships same day

Currently unavailable

$

$

15

MTD Part# 725-1080

Electric Wire 27.0" Lg.
Usually ships same day

Currently unavailable

$

$

16

MTD Part# 725-0562

Electric Wire 32.5" Lg.
(Superseded to 629-0740)
Usually ships in 5 to 10 days

$

$16.81

0

17

MTD Part# 725-0771

Solenoid
(Superseded to 925-0771)
Usually ships in 1 day

$

$25.86

0
