137 - Husqvarna Chainsaw (2009-03) Clutch Drum/Oil Pump and Crankcase Parts Diagram

Chainsaw

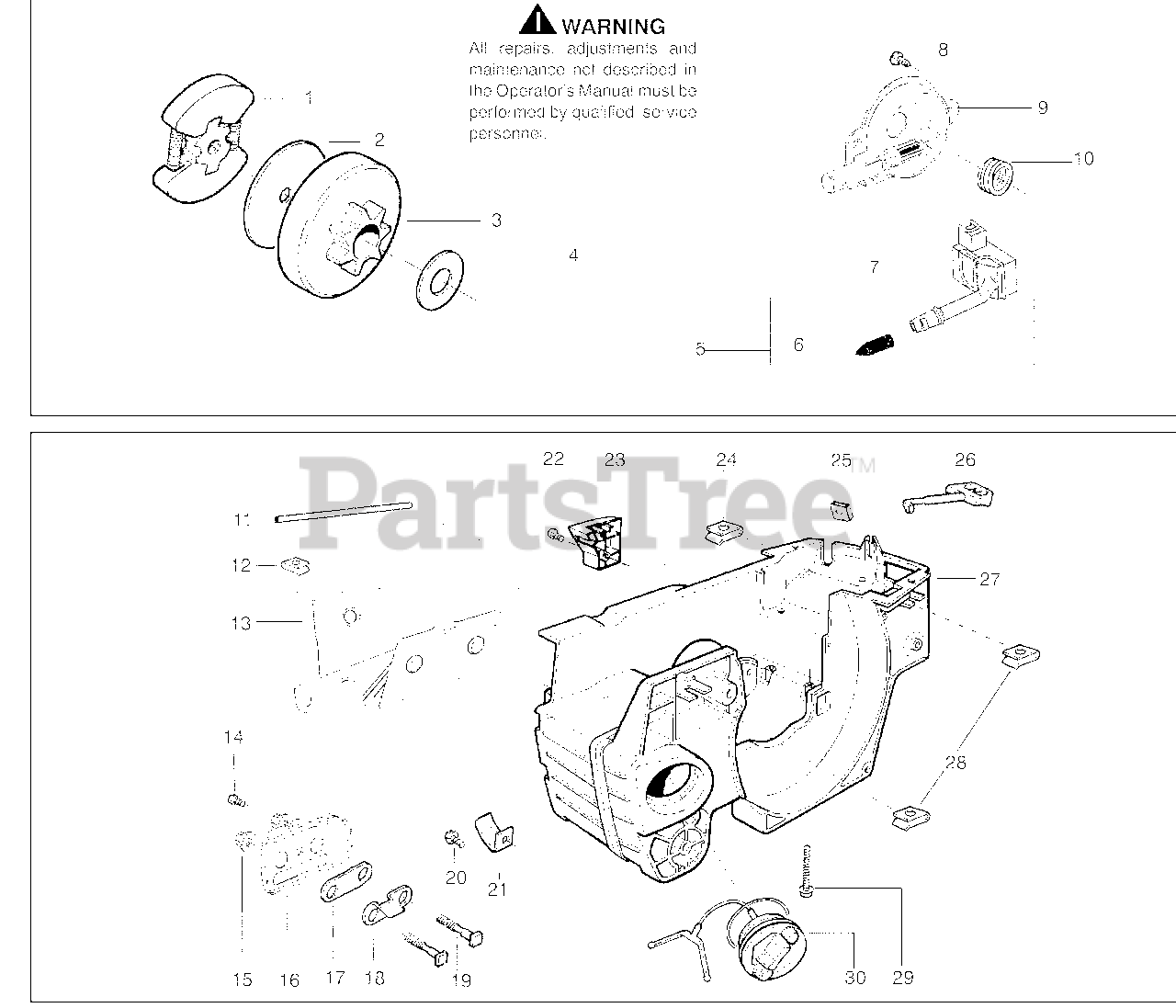

Clutch Drum/Oil Pump and Crankcase Parts Diagram

  • Title

1

Husqvarna 530014949

Assy--Clutch

$13.99

$

In Stock, Qty 19

0

2

Husqvarna 530015611

Washer--Clutch

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 530047061

Assy--Clutch Drum w/Bearing

$17.99

$

In Stock, Qty 11

0

4

Husqvarna 530015907

Washer--Thrust

$

$

Not available

5

Husqvarna 530014776

Assy--Oil pickup and screen
(Superseded to 545037101)

Note: (incl. 6,7)

$10.99

$

In Stock, Qty 20+

0

6

Husqvarna 530056533

Filter--Oil

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 545037101

Assy--Pickup

$10.99

$

In Stock, Qty 20+

0

8

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

9

Husqvarna 530014410

Assy--Oil Pump
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

10

Husqvarna 530029833

Worm Gear--Oil Pump

$8.99

$

In Stock, Qty 14

0

11

Husqvarna 545033501

Tube--Oil Vent

$6.49

$

In Stock, Qty 10

0

12

Husqvarna 530055322

Clip--Retainer

$2.49

$

Usually ships in 3-10 days

0

13

Husqvarna 530055174

Shield--Heat

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530015896

Screw

Note: (optional)

$6.49

$

In Stock, Qty 13

0

15

Husqvarna 530015917

Nut

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 530047855

Plate--Bar

$

$

Not available

17

Husqvarna 530019228

Gasket

$5.99

$

In Stock, only 3 left!

0

18

Husqvarna 530036043

Plate--Bar Stud

$5.99

$

In Stock, only 4 left!

0

19

Husqvarna 530015877

Bar Bolt

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 530015878

Screw

$2.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 530015893

Screw

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 530052428

Cover

$

$

Not available

24

Husqvarna 530015922

Nut--Type "U" Speed

$6.49

$

In Stock, Qty 5

0

25

Husqvarna 530029830

Grommet

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 530029831

Lever--Choke

$

$

Not available

27

Husqvarna 530071991

Kit -- Chassis Ass’y.

$

$

Not available

28

Husqvarna 530015922

Nut--Type "U" Speed

$6.49

$

In Stock, Qty 5

0

29

Husqvarna 530016037

Screw

$

$

Not available

30

Husqvarna 501765602

Assy.-- Oil Tank Cap

$10.99

$

In Stock, Qty 20+

0
