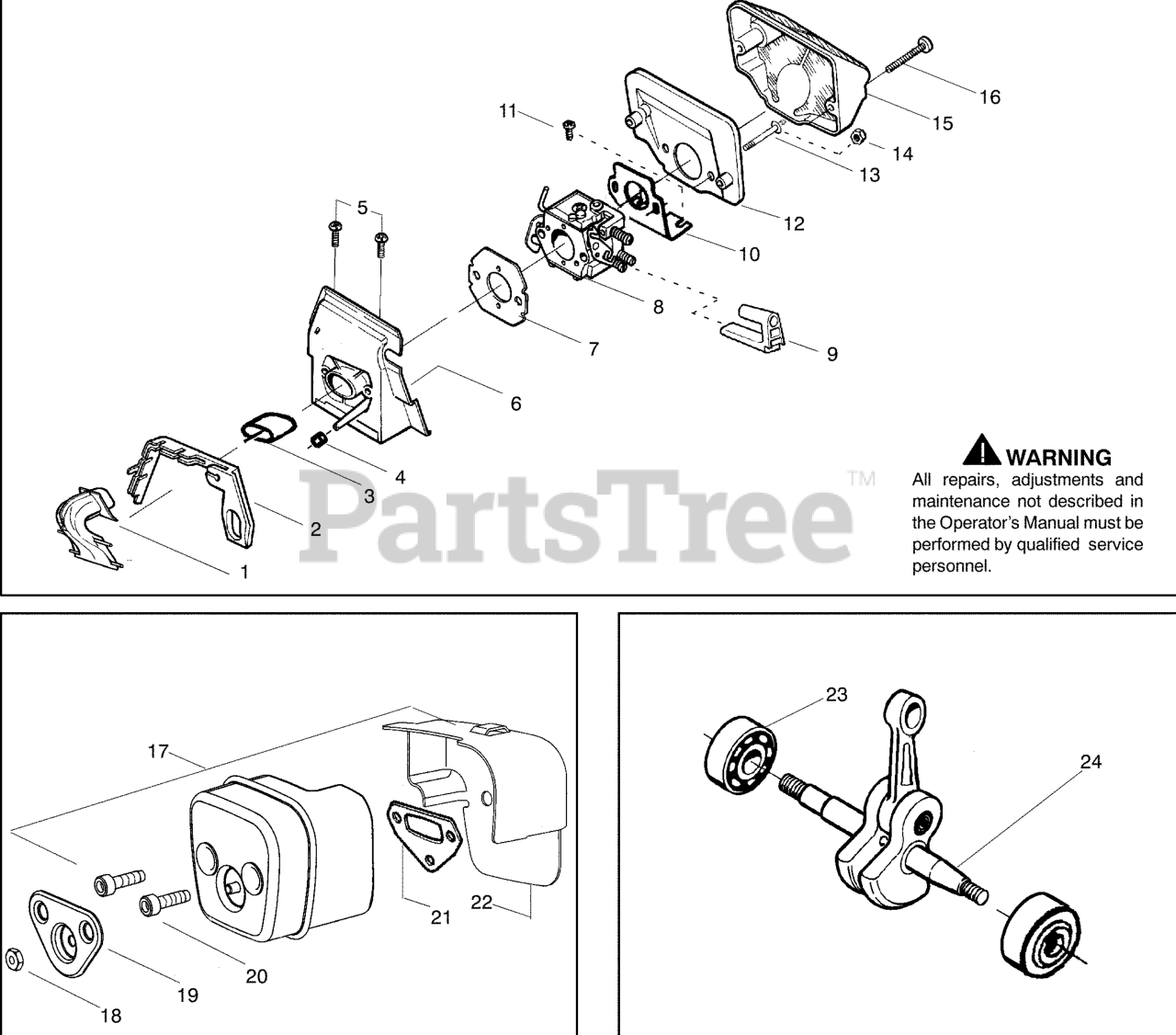

137 - Husqvarna Chainsaw (2009-03) Intake and Muffler and Crankshaft Parts Diagram

Chainsaw

Intake and Muffler and Crankshaft Parts Diagram

  • Title

1

Husqvarna 530029813

INTAKE HORN

$

$

Not available

2

Husqvarna 530019203

TURBO CLEAN SEAL

$

$

Not available

3

Husqvarna 530029814

INTAKE PIPE

$13.99

$

In Stock, only 1 left!

0

4

Husqvarna 530053435

IMPULSE PIPE

$

$

Not available

5

Husqvarna 530015814

SCREW

$3.49

$

In Stock, Qty 6

0

6

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

7

Husqvarna 530019172

GSKT,CARB 36/41

$5.99

$

In Stock, Qty 20+

0

8

Carburetor

$

$

Not available

Husqvarna 530071987

CARBURETOR W-29

$113.99

$

Usually ships in 3-10 days

0

Husqvarna 545013502

CARBURETOR KIT WT-834 WALBRO

$

$

Not available

9

Husqvarna 530035587

GROMMET

$4.99

$

In Stock, Qty 5

0

10

Husqvarna 530047767

PLATE

$

$

Not available

11

Husqvarna 530015896

SCREW

$5.99

$

In Stock, only 4 left!

0

12

Husqvarna 530036582

AIR FILTER (BOTTOM)

$

$

Not available

13

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

14

Husqvarna 530016008

NUT 5M

$

$

Not available

15

Husqvarna 530029811

AIR FILTER

$

$

Not available

16

Husqvarna 530015899

SCREW

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 545006044

MUFFLER KIT

Note: (Includes 20,21 & 22) NEW PART NUMBER FOR THIS IPL

$

$

Not available

18

Husqvarna 530016359

NUT-BRASS
(Superseded to 574266401)

$3.49

$

In Stock, only 1 left!

0

19

Husqvarna 530055600

COVER BOLT

$

$

Not available

20

Husqvarna 530016338

SCREW MUFFLER

$3.49

$

In Stock, Qty 5

0

21

Husqvarna 530055128

GASKET-MUFFLER

$4.99

$

In Stock, Qty 6

0

22

Husqvarna 530055171

BACKPLATE, MUFFLER

$

$

Not available

23

Husqvarna 530056363

BEARING & SEAL ASSEMBLY

$9.49

$

In Stock, Qty 8

0

24

Husqvarna 530029794

CRANKSHAFT ASSY 36/41
(Superseded to 503920801)

$

$

Not available
