137 - Husqvarna Chainsaw (2009-03) Starter and Ignition and Fuel Tank Parts Diagram

Chainsaw

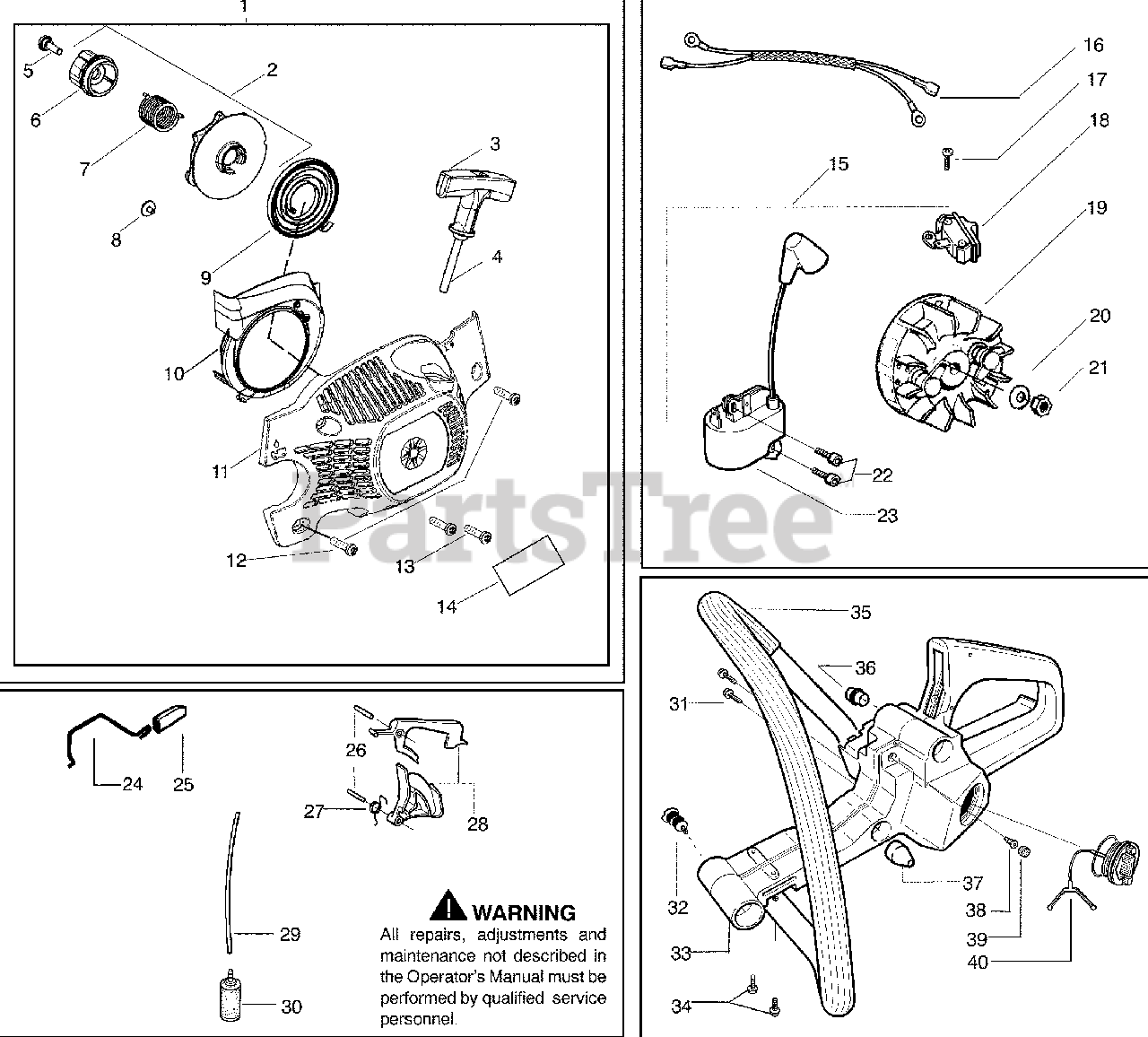

Starter and Ignition and Fuel Tank Parts Diagram

  • Title

1

Husqvarna 530071968

Kit--Fan Hsg / Starter

Note: (Incl. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, )

$

$

Not available

2

Husqvarna 530071966

Kit--Starter EPS

$26.99

$

In Stock, Qty 12

0

3

Husqvarna 530150318

Handle--Starter

$6.49

$

In Stock, Qty 20+

0

4

Husqvarna 530069232

Kit--Rope

Note: (Incl. 5,6,7,8)

$7.49

$

In Stock, Qty 20+

0

5

Husqvarna 530021179

Screw--shoulder

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 530059677

Hub

$9.99

$

In Stock, Qty 9

0

7

Husqvarna 530021180

Spring--EPS

$6.49

$

In Stock, only 4 left!

0

8

Husqvarna 530016080

Screw

$6.49

$

In Stock, Qty 11

0

9

Husqvarna 530042095

Spring--Starter
(Superseded to 545008013)

$6.49

$

In Stock, Qty 6

0

10

Husqvarna 530059959

Baffle--Air

$

$

Not available

11

Husqvarna 530059958

Assy--Fan Hsg. w/eyelet

$15.99

$

Usually ships in 3-10 days

0

12

Husqvarna 530015893

Screw

$6.49

$

In Stock, Qty 20+

0

13

Husqvarna 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 545005219

Decal--Fan Housing

$

$

Not available

15

Husqvarna 530071967

Kit--EPS ignition

Note: (Incl. 18, 19, 23)

$72.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530403257

Assy--Leadwire

$

$

Not available

17

Husqvarna 530015896

Screw

$6.49

$

In Stock, Qty 13

0

18

Husqvarna 503717901

Switch--Ignition

$17.99

$

In Stock, Qty 20+

0

19

Husqvarna 530059637

Assy. --Flywheel

$

$

Not available

20

Husqvarna 530015127

Washer--Flywheel

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 530016134

Nut

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 545121901

Screw

$3.99

$

In Stock, Qty 5

0

23

Husqvarna 545063901

Module -- Ignition

$

$

Not available

24

Husqvarna 530029869

Wire -- Throttle

$6.49

$

In Stock, Qty 17

0

25

Husqvarna 530029863

Cap -- Wire

$

$

Not available

26

Husqvarna 530029860

Pin

$4.99

$

In Stock, Qty 9

0

27

Husqvarna 530029861

Spring

$6.49

$

In Stock, Qty 7

0

28

Husqvarna 530069587

Kit -- Throttle Trigger

$

$

Not available

29

Husqvarna 530069247

Kit -- Fuel line

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 530014497

Assy.-- Fuel Pickup
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 530015940

Screw

$6.49

$

In Stock, Qty 9

0

32

Husqvarna 530029870

Element -- AV Isolator

$12.99

$

In Stock, Qty 11

0

33

Husqvarna 530055613

Assy. --Tank/Handle

$60.99

$

Usually ships in 3-10 days

0

34

Husqvarna 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 530059961

Handle--Front

$26.99

$

In Stock, only 1 left!

0

36

Husqvarna 530052439

Isolator--Front Handle

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 530029984

Isolator

$2.49

$

In Stock, Qty 12

0

38

Husqvarna 530026119

Valve -- Check

$4.49

$

In Stock, Qty 19

0

39

Husqvarna 530038264

Plug -- Vent

$6.49

$

In Stock, Qty 6

0

40

Husqvarna 530071266

Kit--Assy. Fuel Cap

$

$

Not available
