137 - Husqvarna Chainsaw (SN: 20064900001 - 20070100000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

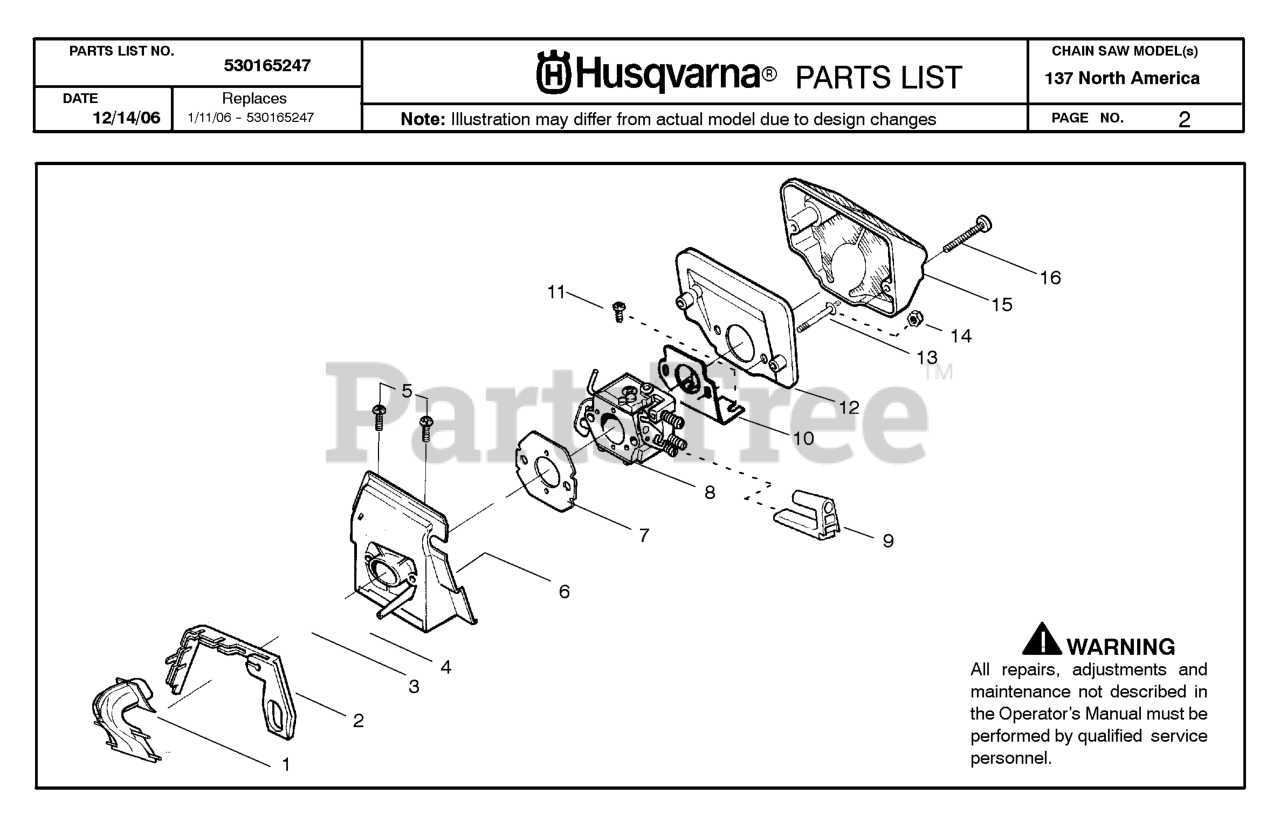

CARBURETOR & AIR FILTER Parts Diagram

  • Title

11

Husqvarna 530015896

SCREW

$6.49

$

In Stock, Qty 13

0

1

Husqvarna 530029813

INTAKE HORN

$

$

Not available

9

Husqvarna 530035587

GROMMET

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 530037465

CARB ADAPTOR

$

$

Not available

2

Husqvarna 530019203

TURBO CLEAN SEAL

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 530036582

AIR FILTER (BOTTOM)

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 530029811

AIR FILTER

$

$

Not available

8

Husqvarna 530071987

CARBURETOR W-29

$44.99

$

In Stock, Qty 14

0

13

Husqvarna 530015968

STUD-CARBURETOR

$

$

Not available

16

Husqvarna 530015899

SCREW

$6.49

$

In Stock, Qty 15

0

3

Husqvarna 530029814

INTAKE PIPE

$13.99

$

In Stock, Qty 18

0

7

Husqvarna 530019172

GSKT,CARB 36/41

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 530016008

NUT 5M

$2.23

$

In Stock, only 3 left!

0

10

Husqvarna 530047767

PLATE

$

$

Not available

4

Husqvarna 530053435

IMPULSE PIPE

$4.99

$

In Stock, Qty 20+

0
