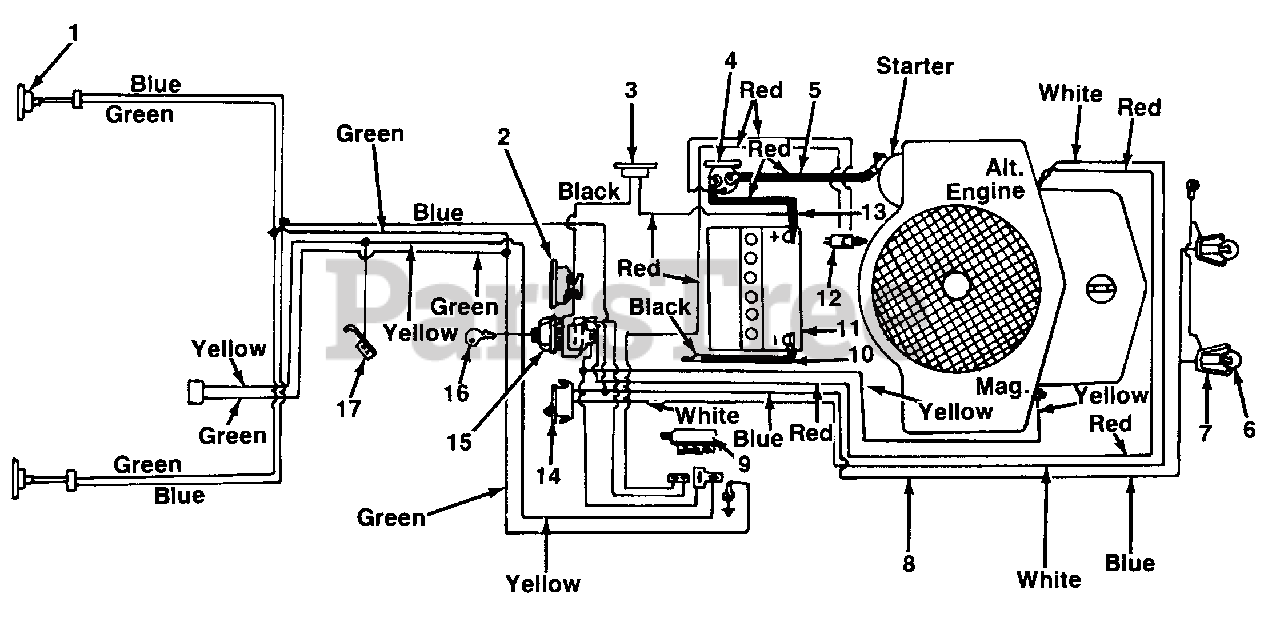

13785C - MTD Lawn Tractor (1986) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-1128

Taillight

$

$

Not available

2

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 1 left!

0

3

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

4

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

5

MTD 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

6

MTD 725-0963

Bulb Headlight
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

7

MTD 725-1058

Socket Headlight
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

8

MTD 725-1131

Wire Harness

$

$

Not available

9

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

$28.99

$

In Stock, only 2 left!

0

10

MTD 725-0996

6 Ga. Black Wire

$

$

Not available

11

MTD 725-0453

12V Battery

$

$

Not available

12

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

13

MTD 725-0563

Wire

$

$

Currently unavailable

14

MTD 725-1130

Headlight Switch

$

$

Not available

15

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

16

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 12

0

17

MTD 725-0759

Spring Switch Reverse
(Superseded to 753-0579)

$

$

Not available
