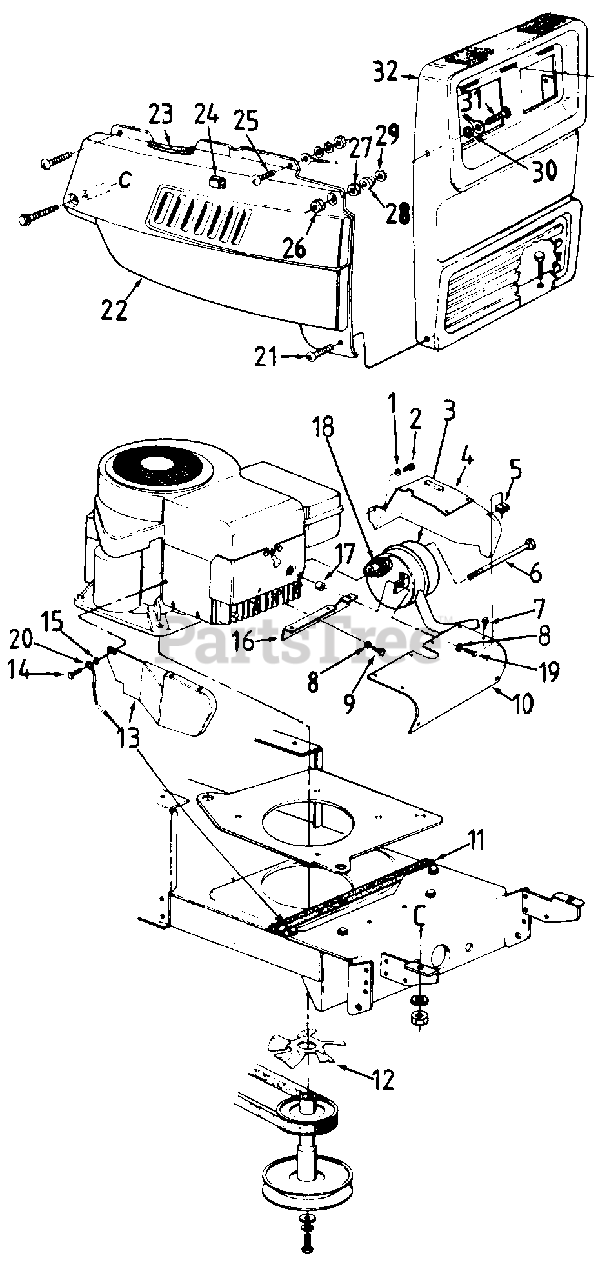

138-638-000 - MTD Lawn Tractor, Style 8 (1988) Parts Parts Diagram

Lawn Tractor, Style 8

Parts Parts Diagram

  • Title

1

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0

2

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

3

MTD 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

4

MTD 16801

Muffler Heat Shield-L.H.

$

$

Not available

5

MTD 712-0147

U-Type Speed Nut #10-24 Thd.

$7.49

$

Usually ships in 3-6 days

0

6

MTD 738-0636

Shoulder Bolt
(Superseded to 938-0636)

$

$

Not available

7

MTD 710-0224

Hex AB-Tap Scr. #10 x .5"
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 12

0

8

MTD 736-0175

Spr. Wash. 1/4" I.D.
(Superseded to 936-0175)

$4.49

$

In Stock, only 3 left!

0

9

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

10

MTD 16812

Muffler Heat Shield-Front

$

$

Not available

11

MTD 722-0247

Foam Strip

$

$

Not available

12

MTD 17199

Cooling Fan
(Superseded to 17199-0637)

Variations

17199-0637

MTD 17199-0637

Cooling Fan - POWDER BLACK (0637)

$90.99

$

Usually ships in 3-6 days

0

$90.99

$

Usually ships in 3-6 days

0

13

MTD 16811

Muffler Heat Shield-R.H.

$

$

Not available

14

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 16813

Heat Shield Bracket

$

$

Not available

17

MTD 750-0709

Spacer

$

$

Not available

18

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

19

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$4.49

$

In Stock, Qty 11

0

20

MTD 725-0977

Ground Wire

$

$

Not available

21

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

22

MTD 17308

Side Cover-R.H.-B&S
(Superseded to 16725)

$

$

Not available

MTD 16722

Side Cover-R.H.-Tecumseh
(Superseded to 16725)

$

$

Not available

MTD 17309

Side Cover-L.H.
(Superseded to 17309B)

Note: (Not Shown)

$

$

Not available

23

MTD 731-0511

Trim Strip-6"

$3.99

$

Usually ships in 3-6 days

0

24

MTD 726-0152

Clamp

$

$

Not available

25

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-0264

Acorn Nut 1/4-20 Thd.

$3.99

$

Usually ships in 3-6 days

0

27

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$

$

Not available

28

MTD 738-0759

Shld. Spacer

$

$

Not available

29

MTD 736-0413

Washer.39" I.D.

$7.49

$

In Stock, only 1 left!

0

30

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$6.49

$

In Stock, only 3 left!

0

31

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.99

$

Usually ships in 3-6 days

0

32

MTD 16456

Grille-Used w/Headlight Bezel

$

$

Currently unavailable

MTD 15806

Grille-Used w/o Headlight Bezel

$

$

Currently unavailable

MTD 16787

Hood

Note: (Not Shown)

$

$

Currently unavailable

MTD 17194

Lift Handle
(Superseded to 753-0548)

Note: (Not Shown)

$

$

Not available
