138-641-000 - MTD Lawn Tractor, Style 1 (1988) Style 1) Parts Diagram

Lawn Tractor, Style 1

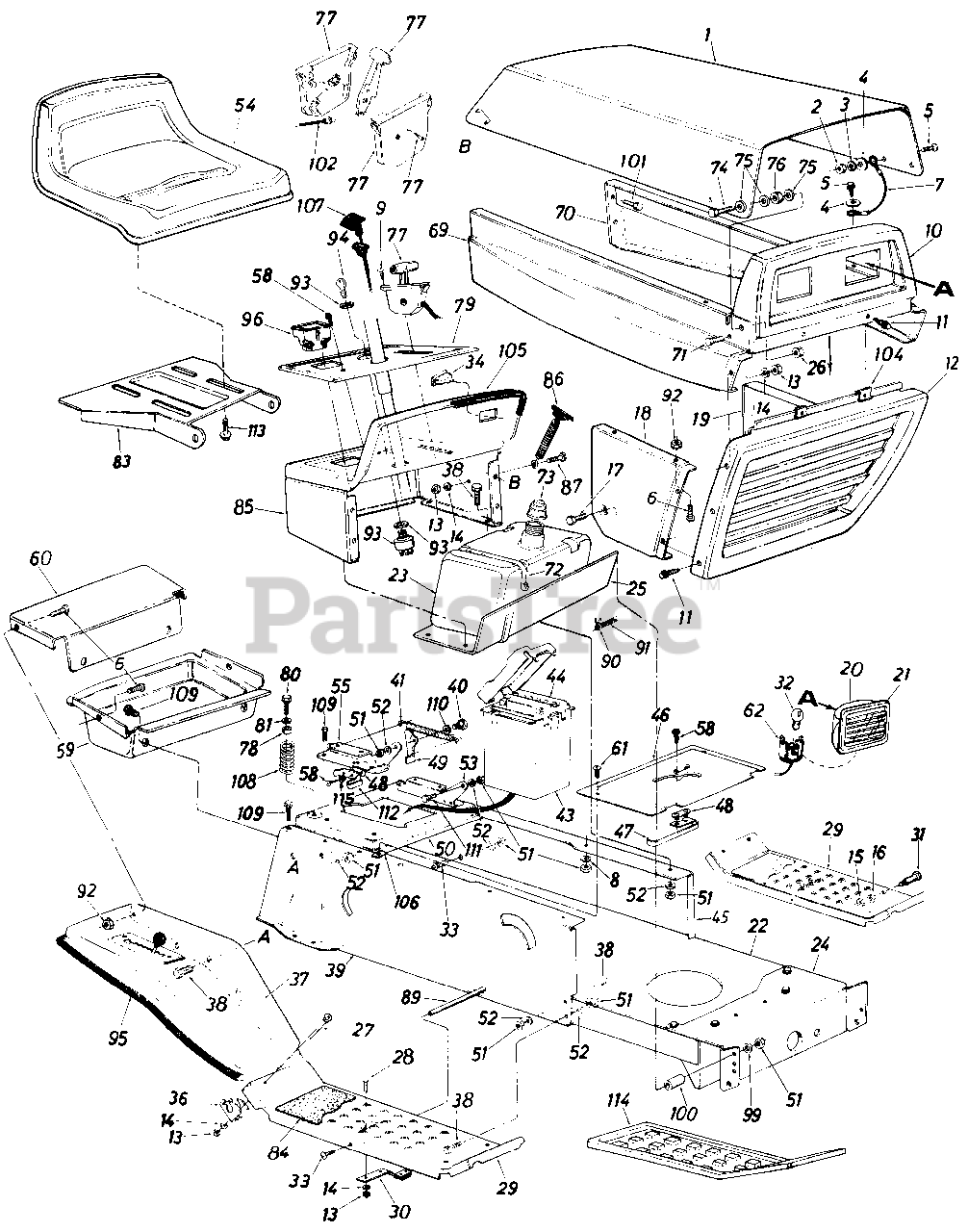

Style 1) Parts Diagram

  • Title

1

MTD 12780

Hood

Variations

MTD 12780-0629

No Longer Available HOOD-FRONT - SILVER FLAKE (0629)

$

$

Not available

MTD 12780-0650

No Longer Available HOOD-FRONT - RED METALLIC (0650)

$

$

Not available

$

$

2

MTD 712-0998

Hex L-Nut #10-24 Thd.

$3.49

$

Usually ships in 3-6 days

0

3

MTD 736-0722

L-Wash. #10 I.D.

$6.49

$

Usually ships in 3-6 days

0

4

MTD 736-0463

Fl-Wash. .25" I.D. x .62"

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0192

Truss Scr. #10-24 x .375"

$3.49

$

In Stock, Qty 11

0

6

MTD 710-0473

Truss Hd. Scr. #10-24 x .50"

$3.99

$

In Stock, only 1 left!

0

7

MTD 727-0199

Hood Stop

$

$

Not available

8

MTD 736-0607

Ext. L-Wash. 5/16"

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .44
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

10

MTD 15871

Front Grille Upper Ass'y.

$

$

Not available

11

MTD 710-0224

Hex AB-Tap Scr. #10 x .50"
(Superseded to 910-0224)

$3.49

$

In Stock, only 2 left!

0

12

MTD 15872

Lower Grille

Variations

MTD 15872-0629

No Longer Available PANEL-GRIL - SILVER FLAKE (0629)

$

$

Not available

MTD 15872-0638

No Longer Available PANEL-GRIL - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

13

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

14

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

15

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

16

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

17

MTD 710-0442

Hex Bolt 5/16-18 x 1.50"
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

18

MTD 15544

R.H. Lower Side Panel

Note: (B&S)

$

$

Currently unavailable

MTD 16600

R.H. Lower Side Panel

Note: (Tec.)

$

$

Currently unavailable

19

MTD 15545

L.H. Lower Side Panel

$

$

Not available

20

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

21

MTD 731-0706

Headlight Lens
(Superseded to 931-0706)

$

$

Not available

22

MTD 15930

Lower Frame

$

$

Not available

23

MTD 751-0172

Fuel Tank
(Superseded to 753-0503)

$

$

Not available

24

MTD 14619

Front Pivot Brkt.

$

$

Currently unavailable

25

MTD 14605

Fuel Tank Support

$

$

Not available

26

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

27

MTD 710-0495

Carriage Bolt 1/4-20 x 2.00"

$

$

Not available

28

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

29

MTD 14604

Running Board

Note: (R.H. & L.H.)

$

$

Currently unavailable

30

Blade Brake Ass'y.

Note: (Refer to Deck Breakdown)

$

$

Not available

31

MTD 738-0145

Shld. Bolt .50 Dia. x .84

$6.49

$

Usually ships in 3-6 days

0

32

MTD 725-0963

Head Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

33

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

34

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

36

MTD 14671

Fender Clamp

$

$

Not available

37

MTD 16197

Fender

Note: (R.H.)

$

$

Currently unavailable

MTD 14666

Fender

Note: (L. H.)

Variations

MTD 14666-0629

No Longer Available FENDER - SILVER FLAKE (0629)

$

$

Not available

$

$

MTD 16198

Fender

Note: (R.H.) -Used w/36" & 40" Rear Discharge Decks

$

$

Not available

MTD 15350

Fender

Note: (L.H.) -Used w/36" & 40" Rear Discharge Decks

Variations

MTD 15350-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

39

MTD 14602

R.H. Side Frame
(Superseded to 14602G-0637)

$

$

Not available

40

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$3.99

$

In Stock, Qty 13

0

41

MTD 732-0581

Ext. Spring .75" O.D. x 5.31" Lg.
(Superseded to 932-0581B)

$13.99

$

Usually ships in 3-6 days

0

43

MTD 731-0871

Battery Box w/Cover
(Superseded to 731-0871B)

$

$

Not available

44

MTD 725-0514

12-V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

45

MTD 14603

L.H. Side Frame

$

$

Not available

46

MTD 17287

Shift Cover
(Superseded to 17286B-0637)

$39.99

$

Usually ships in 3-6 days

0

47

MTD 725-0759

Reverse Safety Switch
(Superseded to 753-0579)

$

$

Not available

48

MTD 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 11

0

49

MTD 17239

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

50

MTD 17225

Hitch Plate

$

$

Not available

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

53

MTD 17243

Seat Pivot Brkt. Support-L.H.

$

$

Not available

54

MTD 757-0345

Seat 8-7/8" High
(Superseded to 957-0378)

$

$

Not available

MTD 757-0338

Back Seat 10-5/8" High
(Superseded to 957-0360A)

$

$

Not available

55

MTD 17244

Seat Pivot Brkt. Support-R.H.

$

$

Not available

58

MTD 710-0227

Hex AB-Tap Scr. #8 x .50"

$3.99

$

In Stock, Qty 20+

0

59

MTD 731-0561

Tool Tray

$

$

Currently unavailable

60

MTD 14789

Fender Panel

Variations

MTD 14789-0637

No Longer Available PANEL-FEND - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 710-0351

Truss Mach. Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 4 left!

0

62

MTD 725-1058

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

69

MTD 12784

Side Panel-R.H.

$

$

Not available

70

MTD 12785

Side Panel-L.H.

$

$

Currently unavailable

71

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

72

MTD 726-0209

Tie Strap
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

73

MTD 723-0333

Fuel Cap Gauge

$

$

Not available

74

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

75

MTD 736-0101

Fl-Wash. .380" I.D. x 1.00"
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

76

MTD 735-0200

Rubber Wash. .38" I.D. x .87" O.D.

$

$

Not available

77

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$30.99

$

In Stock, Qty 20+

0

78

MTD 722-0160

Bushing

$

$

Not available

79

MTD 731-0804

Dash Panel Insert

$

$

Not available

80

MTD 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 736-0159

Fl-Wash. .344" I.D. x .875" O.D.

$3.99

$

In Stock, Qty 20+

0

83

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

84

MTD 723-0360

Foot Pad

$

$

Not available

85

MTD 17299

Dash Panel Ass'y.

$

$

Not available

86

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

87

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

89

MTD 738-0526

Running Board Rod

$

$

Not available

90

MTD 726-0207

Hose Clamp

$

$

Not available

91

MTD 751-0173

Fuel Line
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

92

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

93

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 16

0

94

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

95

MTD 731-0511

Trim Strip-57" Lg.

$3.49

$

Usually ships in 3-6 days

0

96

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

99

MTD 736-0242

Belleville Wash. .34" I.D.

$3.99

$

In Stock, Qty 20+

0

100

MTD 748-0193

Spacer
(Superseded to 948-0193)

Note: (Side Disc. Deck)

$

$

Not available

MTD 748-0298

Spacer

Note: (Rear Disc. Deck)

$

$

Not available

101

MTD 710-0258

Hex Wash. Hd. AB-Tap Scr. 1/4-20 x .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

102

MTD 746-0505

Throttle Control Wire

Note: (B&S)

$

$

Not available

MTD 746-0637

Throttle Control Wire
(Superseded to 946-0638)

Note: (Tec.)

$9.49

$

In Stock, Qty 11

0

104

MTD 726-0139

Speed Nut #10Z

$6.49

$

In Stock, only 3 left!

0

105

MTD 731-0511

Trim Strip-15"

$3.49

$

Usually ships in 3-6 days

0

106

MTD 726-0139

Speed Nut #10Z

$6.49

$

In Stock, only 3 left!

0

107

MTD 746-0615

Choke Control 29" Lg.
(Superseded to 946-0615A)

$44.99

$

Usually ships in 3-6 days

0

108

MTD 732-0548

Compression Spring

$

$

Not available

109

MTD 710-0726

Hex AB-Tap Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

110

MTD 736-0141

Spr-Wash. .445" I.D. x .75"
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

111

MTD 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

112

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

113

MTD 710-0623

Hex Hd. Tap Scr. 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 10

0

114

MTD 731-0909

Rubber Foot Pad L.H.

$

$

Not available

MTD 731-0910

Rubber Foot Pad R.H.
(Superseded to 735-0689A)

$

$

Not available

115

MTD 736-0426

Fiber li'asher

$

$

Not available
