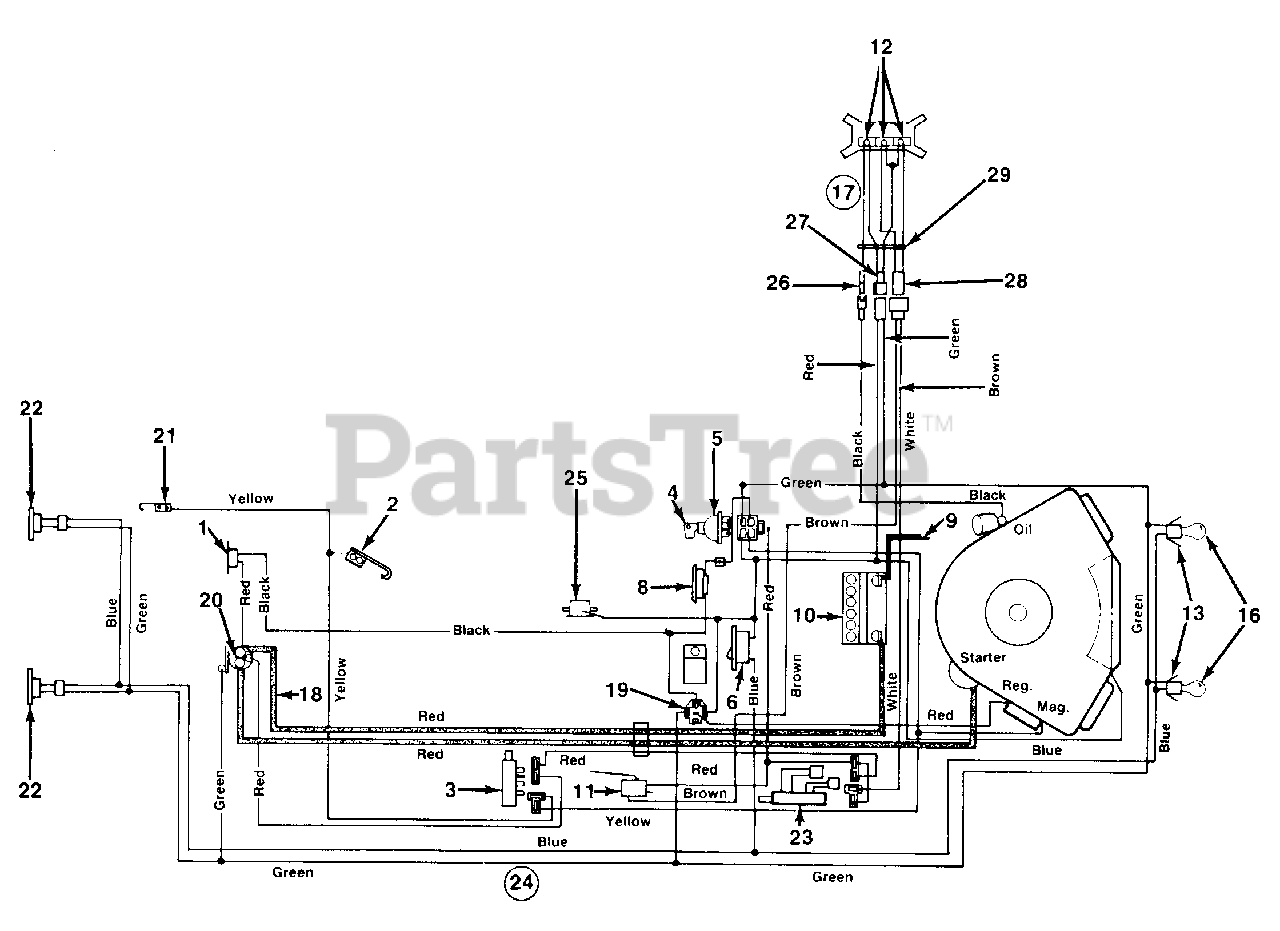

138-664-401 - MTD Lawn Tractor (1988) (Yard-Man) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

2

MTD 725-0759

Spring Switch
(Superseded to 753-0579)

$

$

Not available

3

MTD 725-0819

Safety Switch Dpst.
(Superseded to 925-0819A)

$30.99

$

Usually ships in 3-6 days

0

4

MTD 725-1341

Ignition Key
(Superseded to 725-1341B)

$9.99

$

In Stock, only 3 left!

0

5

MTD 725-1125

Ignition Switch
(Superseded to 925-1396A)

$40.99

$

In Stock, Qty 15

0

6

MTD 725-0634

Headlight Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

8

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

9

MTD 725-0994

Ground Wire 14.0" Lg.
(Superseded to 629-0739)

$

$

Not available

10

MTD 725-0453

12 Volt Battery

$

$

Not available

11

MTD 725-3066

Safety Switch
(Superseded to 925-3066)

$

$

Not available

12

MTD 725-1365

Bulb
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0

13

MTD 725-1058

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

16

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

17

MTD 725-1364

Wire Harness

Note: (Indicator Lights)

$

$

Not available

18

MTD 725-1080

Electric Wire 27.0" Lg.

$

$

Currently unavailable

19

MTD 725-1375

Relay
(Superseded to 925-1375)

$66.99

$

In Stock, Qty 6

0

20

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

21

MTD 725-1303

Spring Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

22

MTD 725-1128

Taillight

$

$

Not available

23

MTD 725-1370

Safety Switch

$

$

Not available

24

MTD 725-1372

Wire Harness

$

$

Not available

25

MTD 751-0527

Fuel Pump

$

$

Not available

26

MTD 729-0139

Connector

$

$

Not available

27

MTD 729-0166

Connector

$

$

Not available

28

MTD 729-0132

Connector

$

$

Not available

29

MTD 729-0204

Clamp

$

$

Currently unavailable
