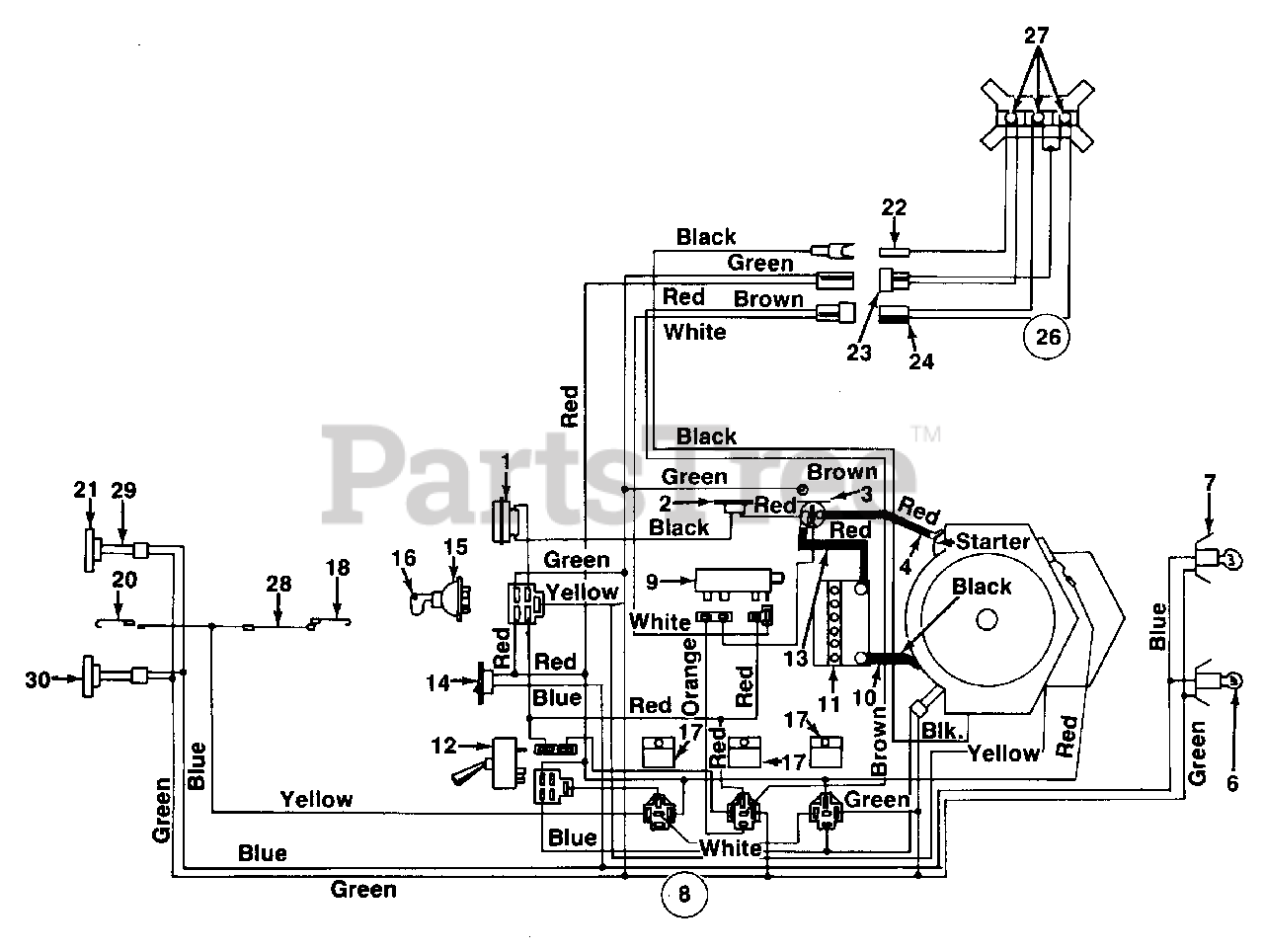

139-784-401 - MTD Lawn Tractor (1989) (Yard-Man) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0

2

MTD 725-1382

Circuit Breaker

$

$

Not available

3

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$32.99

$

In Stock, Qty 5

0

4

MTD 725-0561

Wire
(Superseded to 629-0705)

$

$

Not available

6

MTD 725-0963

Bulb
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

7

MTD 725-1058

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 7

0

8

MTD 725-1391

Wire Harness

$

$

Not available

9

MTD 725-0819

Safety Switch
(Superseded to 925-0819A)

Note: (Clutch)

$30.99

$

Usually ships in 3-6 days

0

10

MTD 725-0996

6 Ga. Black Wire

$

$

Not available

11

MTD 725-0453A

Battery 12V

$

$

Not available

12

MTD 725-0893

Switch
(Superseded to 925-0893)

Note: (PTO)

$76.99

$

In Stock, Qty 16

0

13

MTD 725-0563

Wire

$

$

Currently unavailable

14

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

15

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 15

0

16

MTD 725-1341B

Ignition Key

$9.99

$

In Stock, only 3 left!

0

17

MTD 725-1375

Relay
(Superseded to 925-1375)

$66.99

$

In Stock, Qty 6

0

18

MTD 725-0759

Spring Lever
(Superseded to 753-0579)

$

$

Not available

20

MTD 725-1303

Safety Switch
(Superseded to 925-1303)

Note: (Seat)

$5.99

$

In Stock, Qty 8

0

21

MTD 725-3018

Taillight

$

$

Currently unavailable

22

MTD 729-0139

Connector

$

$

Not available

23

MTD 729-0166

Connector

$

$

Not available

24

MTD 729-0132

Connector

$

$

Not available

26

MTD 725-1364

Wire Harness

$

$

Not available

27

MTD 725-1365

Bulb
(Superseded to 925-1365)

$9.99

$

In Stock, only 4 left!

0

28

MTD 725-1399

Transmission Ext. Wire

$

$

Not available

29

MTD 725-1380

Taillight Harness

$

$

Not available

30

MTD 725-3020

Bulb

$

$

Not available
