139-784-401 - MTD Lawn Tractor (1989) (Yard-Man) Hydrostatic Transmission Parts Diagram

Lawn Tractor

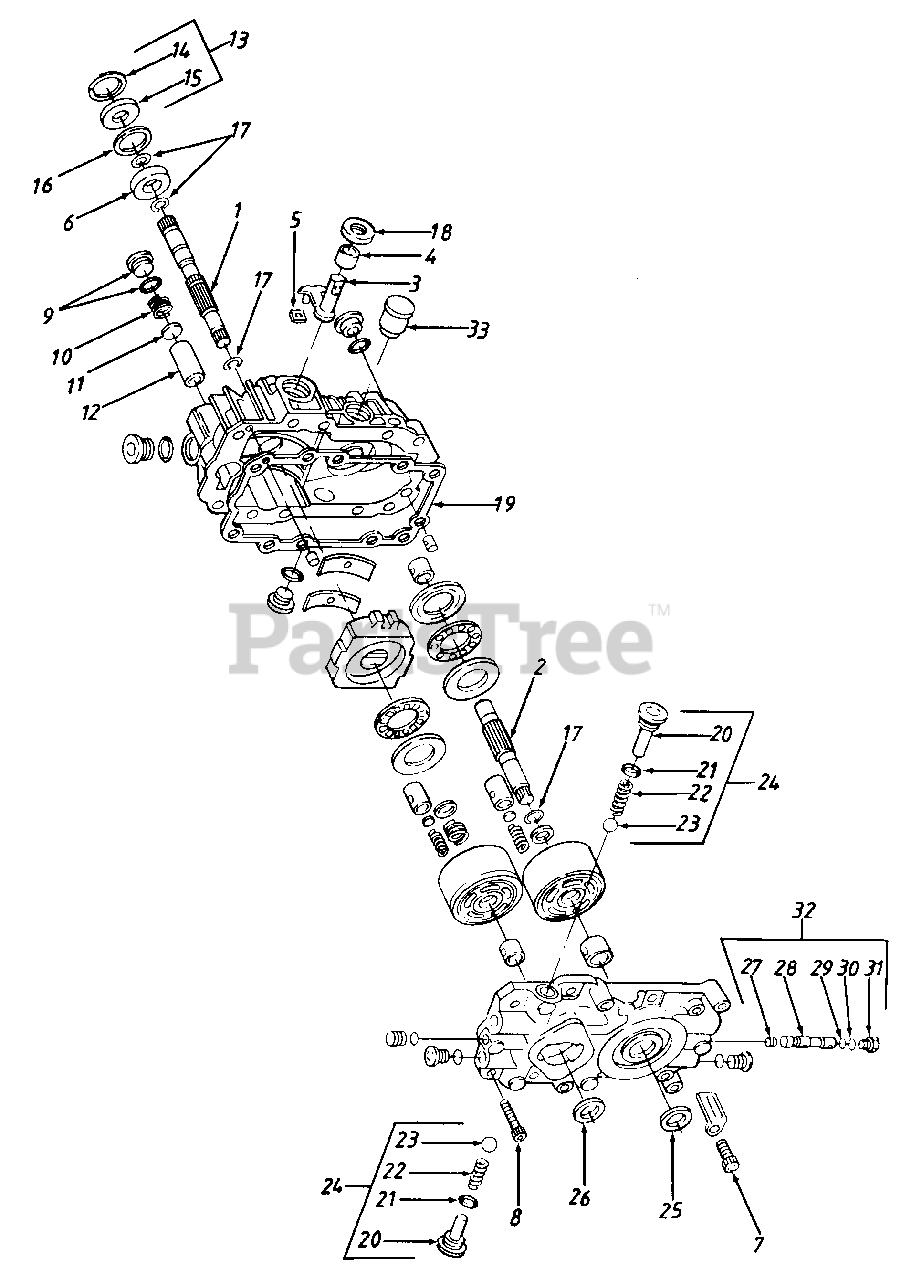

Hydrostatic Transmission Parts Diagram

  • Title

1

MTD SU-J1020650

Shaft-Pump
(Superseded to HG-2003022P)

$

$

Not available

2

MTD SU-J1020651

Shaft-Motor

$

$

Not available

3

MTD SU-J1030744

Arm, Trunnion
(Superseded to HG-2003005)

$200.99

$

Usually ships in 3-6 days

0

4

MTD SU-J1041151

Bearing, Journal
(Superseded to HG-2513036)

$258.99

$

Usually ships in 3-6 days

0

5

MTD SU-J1040980

Guide, Slot
(Superseded to HG-2000015)

$19.99

$

Usually ships in 3-6 days

0

6

MTD SU-JSP0631

Bearing, Ball
(Superseded to HG-2003043P)

$68.99

$

Usually ships in 3-6 days

0

7

MTD SU-JAAM0802001

Screw, Socket Head

$

$

Not available

8

MTD SU-JAAM0803501

Screw, Socket Head
(Superseded to HG-9007314-0808)

$5.49

$

Usually ships in 3-6 days

0

9

MTD SU-90051108700

Plug
(Superseded to HG-9005110-8700)

$

$

Not available

10

MTD SU-J1041159

Spring, Filter
(Superseded to HG-2003010)

$

$

Not available

11

MTD SU-J1041158

Washer, Filter
(Superseded to HG-2000011)

$

$

Not available

12

MTD SU-J1041157

Filter
(Superseded to HG-2003003)

$

$

Not available

13

MTD SU-J1742003

Kit, Seal
(Superseded to SU-2513001)

Note: (Includes Ref. No. 14&15)

$

$

Not available

14

MTD SU-JFBE0351

Ring, Retaining
(Superseded to 716-04098)

$4.99

$

Usually ships in 3-6 days

0

15

MTD SU-JSP0632

Seal, Lip
(Superseded to HG-9008000-0128)

$17.99

$

In Stock, only 3 left!

0

16

MTD SU-J1040972

Spacer
(Superseded to HG-2003018)

$9.99

$

Usually ships in 3-6 days

0

17

MTD SU-J1040970

Ring, Retaining
(Superseded to HG-2003016)

$7.49

$

Usually ships in 3-6 days

0

18

MTD SU-JSP0633

Seal, Lip
(Superseded to HG-9008000-0126)

$14.99

$

Usually ships in 3-6 days

0

19

MTD SU-J1020647

Gasket
(Superseded to HG-2003001)

$

$

Not available

20

MTD SU-J1041007

Plug

$

$

Not available

21

MTD SU-90042013700

O-Ring
(Superseded to HG-9004201-3700)

$4.49

$

Usually ships in 3-6 days

0

22

MTD SU-J1041195

Spring

$

$

Currently unavailable

23

MTD SU-JHKW03

Ball

$

$

Not available

24

MTD SU-J1742004

Kit, Check Valve
(Superseded to HG-2513014)

Note: (Includes Ref. No. 20, 21, 22 & 23)

$

$

Not available

25

MTD SU-JSP0652

Seal, Lip
(Superseded to HG-9008000-0127)

$

$

Not available

26

MTD SU-J1040500

Seal, Lip
(Superseded to HG-50442P)

$

$

Not available

27

MTD SU-J1041178

Spring
(Superseded to HG-2513011)

$159.99

$

Usually ships in 3-6 days

0

28

MTD SU-J1041152

Spool, Bypass

$

$

Not available

29

MTD SU-JKP1A003

O-Ring
(Superseded to HG-9004175-0027)

$

$

Not available

30

MTD SU-90042012500

O-Ring
(Superseded to HG-9004201-2500)

$

$

Not available

31

MTD SU-J1041153

Plug

$

$

Not available

32

MTD SU-1742006

Kit, Bypass Valve
(Superseded to HG-2513011)

Note: (Includes Ref. No. 27, 28, 29, 30 & 31)

$159.99

$

Usually ships in 3-6 days

0

MTD SU-J1742008

Kit, Overhaul Seal
(Superseded to HG-2513013)

$59.99

$

Usually ships in 3-6 days

0

33

MTD SU-J1742009

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0
