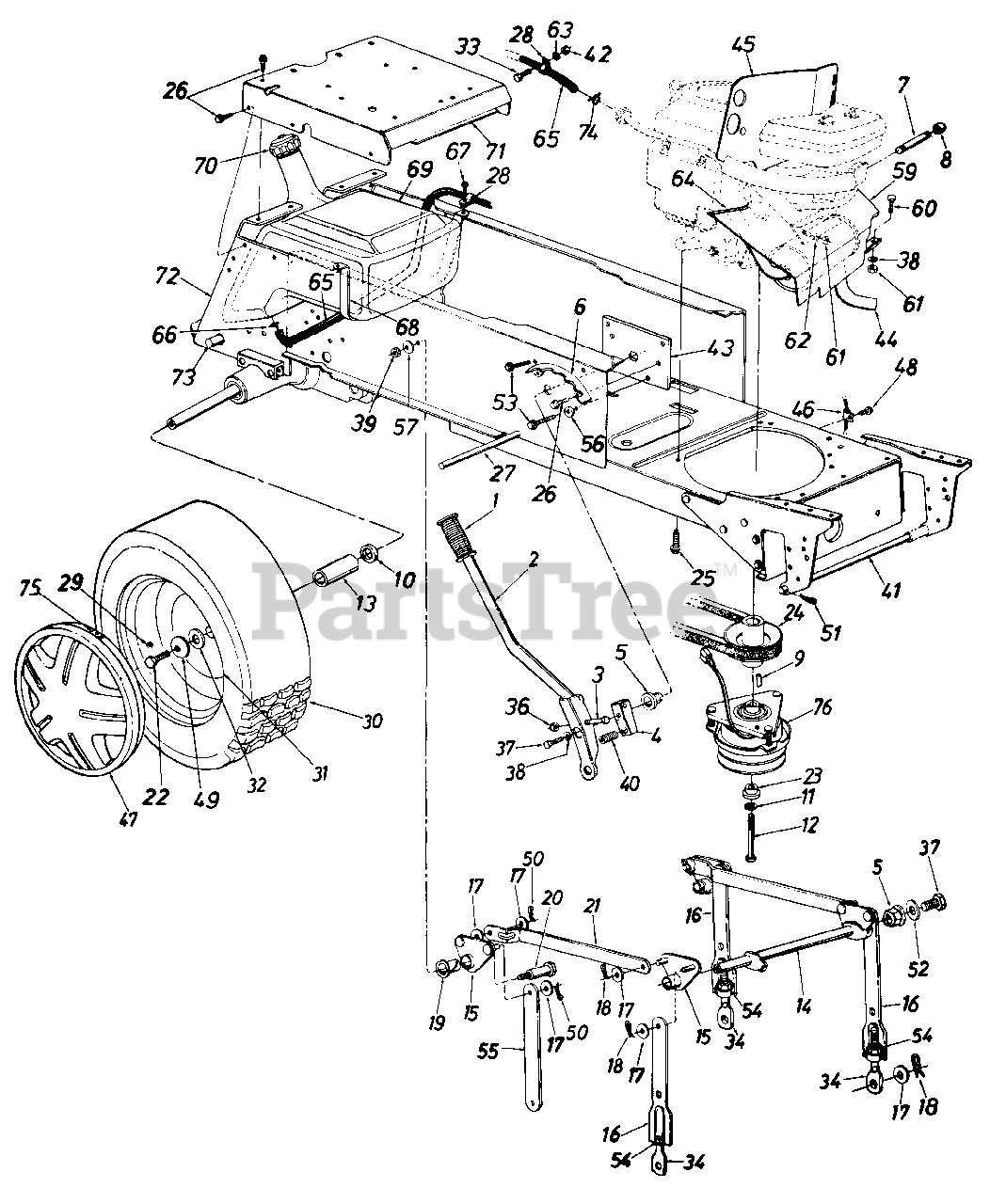

139-784-401 - MTD Lawn Tractor (1989) (Yard-Man) Parts Parts Diagram

Lawn Tractor

Parts Parts Diagram

  • Title

1

MTD 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

MTD 17282

Lift Handle Ass'y.

$

$

Not available

3

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.*
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

4

MTD 748-0274A

Lift Shaft Drive

$

$

Not available

5

MTD 741-0225

Plastic Hex Brg. 518" I.D.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

6

MTD 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

MTD 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

$

$

Not available

8

MTD 737-0143

Pipe Cap 3/8-18 Npt.

$

$

Not available

9

MTD 714-0118

Sq. Key 1/4" x 1/4" x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

10

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0171

L-Wash. 7/16" I.D.*

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-1049

Hex Bolt 7/16-20 x 3.75" Lg.

$9.99

$

Usually ships in 3-6 days

0

13

MTD 731-1086

Sleeve .75" I.D. x 1.0" O.D.
(Superseded to 731-1086A)

$10.99

$

In Stock, only 1 left!

0

14

MTD 13889

Lift Shaft Ass'y.

$

$

Not available

15

MTD 13895

Lift Pivot Brkt. Ass'y.

$

$

Not available

16

MTD 17303

Adj. Deck Lift Link
(Superseded to 17303-0637)

Variations

MTD 17303-0637

Deck Adjustment Link - POWDER BLACK (0637)

$15.99

$

In Stock, only 4 left!

0

$15.99

$

In Stock, only 4 left!

0

17

MTD 736-0192

Fl-Wash. 1/2" I.D. x 1.00" O.D. x .090"

$3.99

$

In Stock, only 2 left!

0

18

MTD 714-0101

Hairpin Cotter

$4.49

$

In Stock, only 4 left!

0

19

MTD 741-0295

Nyliner 5/8" I.D. x .88" Lg.
(Superseded to 941-0591)

$

$

Not available

20

MTD 738-0445

Shld. Bolt 5/8" Dia. x .96" Lg. 3/8-16
(Superseded to 938-0445A)

$

$

Not available

21

MTD 13790

Connecting Link
(Superseded to 13790-0637)

Variations

MTD 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 710-0627

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

23

MTD 738-0785

Shoulder Spacer
(Superseded to 938-0785)

$24.99

$

In Stock, Qty 5

0

24

MTD 756-0575

Engine Pulley

$

$

Not available

25

MTD 710-0502A

Hex Wash. Hd. Scr. 3/8-16 x 1.25" Lg.

$6.49

$

In Stock, Qty 7

0

26

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-18 x.75" Lg.

$3.99

$

In Stock, Qty 20+

0

27

MTD 738-0435

Running Board Rod

$

$

Not available

28

MTD 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

29

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

30

MTD 734-1064

Rear Wheel Ass'y. Comp.
(Superseded to 634-0177-0911)

$440.99

$

Usually ships in 3-6 days

0

MTD 734-1065

Tire Only
(Superseded to 734-1873-0901)

Variations

MTD 734-1065-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$98.99

$

In Stock, only 1 left!

0

MTD 734-1065-0902

Tire, 20 X 10 X 8 - Dico (0902)

$98.99

$

In Stock, only 1 left!

0

MTD 734-1065-0905

Tire, 20 X 10 X 8 - Duro (0905)

$98.99

$

In Stock, only 1 left!

0

$98.99

$

In Stock, only 1 left!

0

31

MTD 734-0603A

Rear Wheel Rim Only
(Superseded to 634-04369)

$124.99

$

Usually ships in 3-6 days

0

32

MTD 736-0346

Flat Washer .34" I.D.

$

$

Not available

33

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

MTD 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$13.99

$

In Stock, only 4 left!

0

36

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

37

MTD 710-0237

Hex Scr. 5/16-24 x .62" Lg.*

$4.49

$

Usually ships in 3-6 days

0

38

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 5

0

40

MTD 732-0369

Compression Spring
(Superseded to 932-0369)

$9.49

$

In Stock, only 1 left!

0

41

MTD 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

42

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

43

MTD 14170

Index Brkt. Reinforcement Plate
(Superseded to 14170-0637)

Variations

MTD 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 751-0474

Muffler

$

$

Not available

45

MTD 17319

Heat Shield

$

$

Not available

46

MTD 726-0273

Mounting Clamp

$6.99

$

In Stock, only 1 left!

0

47

MTD 734-1504

Hubcap
(Superseded to 734-1615A)

$30.99

$

Usually ships in 3-6 days

0

48

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

49

MTD 736-0242

Bell-Wash..39" I.D.

$3.99

$

In Stock, Qty 20+

0

50

MTD 714-0111

Cotter Pin .09 Dia. x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 714-0149B

Int. Cotter Pin

$3.99

$

In Stock, Qty 20+

0

52

MTD 736-0231

Flat Wash. .34" I.D. x 1.12" O.D. x .125"

$4.49

$

In Stock, only 4 left!

0

53

MTD 710-0600

Hex Wash. Hd. AB-Tap Scr. 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

54

MTD 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

55

MTD 14399

Deck Link
(Superseded to 14399-0637)

Variations

MTD 14399-0637

Deck Link - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

56

MTD 736-0264

Fl-Wash. 344n I.D.

$6.49

$

In Stock, only 1 left!

0

57

MTD 736-0219

Bell-Wash. .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

59

MTD 16934

Front Heat Shield

$

$

Not available

60

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

61

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0170

L-Wash. 5/16" I.D.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

63

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

64

MTD 731-0511

Trim Strip 10" Lg.

$3.49

$

Usually ships in 3-6 days

0

65

MTD 751-0535

Fuel Line 50" Lg.

$

$

Currently unavailable

66

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

68

MTD 17424

Fuel Tank Strap

$

$

Not available

69

MTD 751-0528

Gas Tank

$

$

Currently unavailable

70

MTD 751-0531

Gas Gauge
(Superseded to 751-0531B)

$77.99

$

In Stock, Qty 5

0

71

MTD 16848

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

72

MTD 17343

Hitch Plate

Variations

MTD 17343-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

73

MTD 738-0482

Hitch Rod

$

$

Not available

74

MTD 726-0207

Hose Clamp

$

$

Not available

75

MTD 727-0425

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

76

MTD 717-0949

Electric Clutch
(Superseded to 917-1434)

$590.99

$

Usually ships in 3-6 days

0
