1390 E (1694444) - Simplicity 38" Snow Thrower, 13hp Auger Housing and Chute Group - 38" Parts Diagram

38" Snow Thrower, 13hp

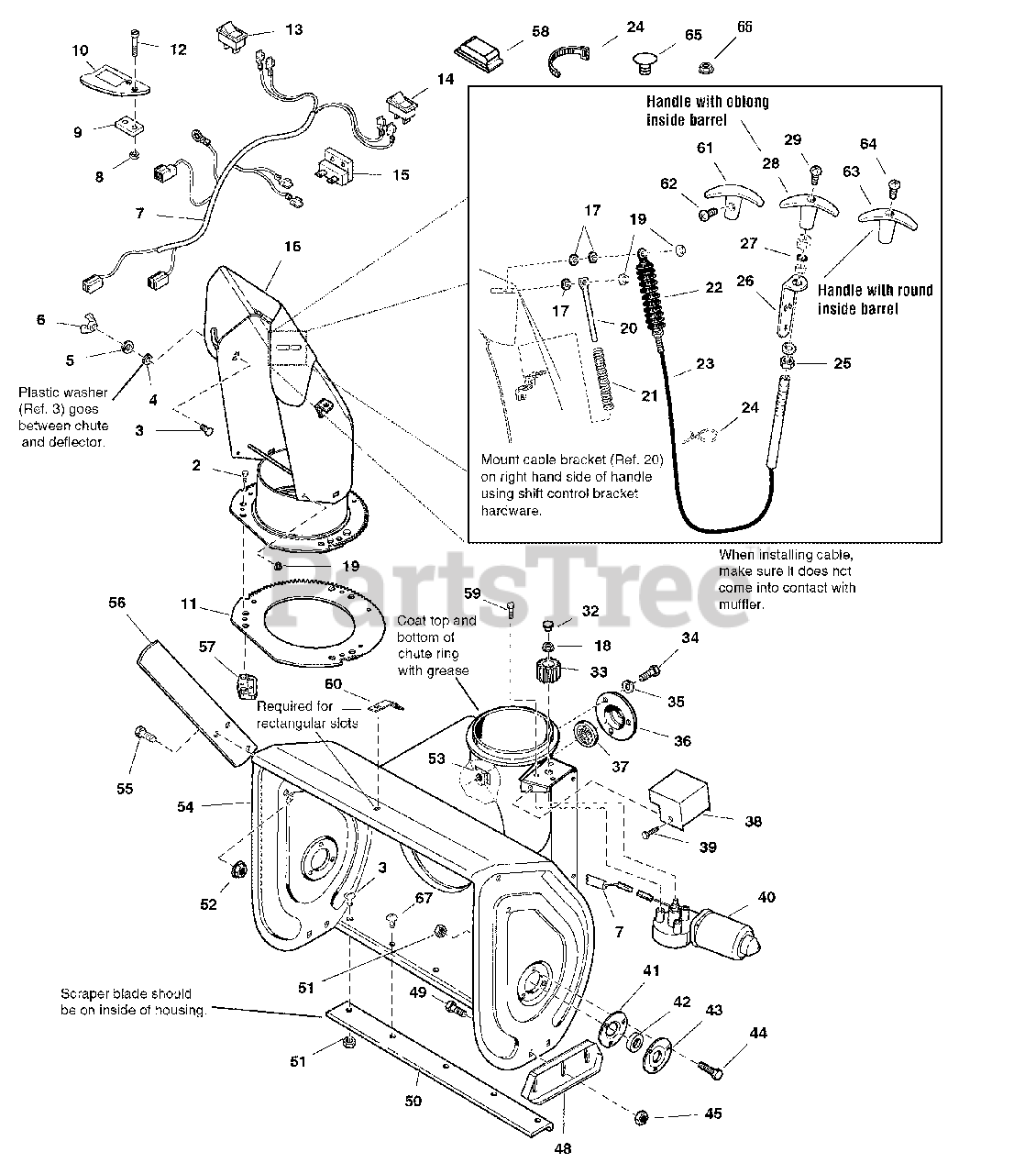

Auger Housing and Chute Group - 38" Parts Diagram

  • Title

2

Simplicity 1960001SM

CAPSCREW, Hex Washer Head, Plastite, #10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

3

Simplicity 1960702SM

BOLT, Carriage 3/8-16 x 1
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

4

Simplicity 2860210SM

WASHER, Nylon

$4.99

$

In Stock, only 2 left!

0

5

Simplicity 1919326SM

WASHER, 5/17, Black

$4.49

$

Usually ships in 2-12 days

0

6

Simplicity 1919438SM

NUT, Hex Lock ESNA, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1723968SM

WIRE ASSEMBLY

$50.99

$

Usually ships in 2-12 days

0

8

Simplicity 1933896SM

NUT, Hex Lock, 10-24, Black
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

9

Simplicity 1725427SM

BRACKET, Switch, Bottom
(Superseded to 1725427CSM)

$

$

Not available

10

Simplicity 1725426SM

BRACKET, Switch, Top
(Superseded to 1725426CSM)

$6.49

$

Usually ships in 2-12 days

0

11

Simplicity 1717477ASM

GEAR, Chute

$53.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960579SM

SCREW, Truss Head Phillips 10-24 x 1-5/8

$

$

Not available

13

Simplicity 1716329SM

SWITCH, Spout Rotator

$50.99

$

In Stock, Qty 16

0

14

Simplicity 1723967SM

SWITCH, Hand Warmer, Off, Warm, Hot

$40.99

$

Usually ships in 2-12 days

0

15

Simplicity 1724037SM

RESISTOR BLOCK

$42.99

$

Usually ships in 2-12 days

0

16

Simplicity 1723948A

CHUTE & DEFLECTOR ASSEMBLY

$

$

Not available

17

Simplicity 1702219SM

SPACER

$8.99

$

In Stock, only 2 left!

0

18

Simplicity 1960685SM

NUT, KEPS Conical Washer 1/4-20
(Superseded to 703061)

$3.99

$

In Stock, Qty 11

0

19

Simplicity 1960126SM

NUT, Push, Black
(Superseded to 704066)

$5.49

$

In Stock, Qty 10

0

20

Simplicity 1611945SM

ROD

$14.99

$

In Stock, only 1 left!

0

21

Simplicity 1611939SM

SPRING, Compression

$10.99

$

Usually ships in 2-12 days

0

22

Simplicity 1700048SM

BOOT, Water

$

$

Not available

23

Simplicity 1720446SM

CABLE & KNOB ASSEMBLY

$190.99

$

In Stock, only 1 left!

0

24

Simplicity 2825094SM

CABLE TIE
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

25

Simplicity 1922014SM

NUT, Hex, 5/16-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 5

0

26

Simplicity 1726411ASM

BRACKET, "L"

$

$

Not available

27

Simplicity 1719139

SEAL, Rod, Chute Deflector Cable

$

$

Not available

28

Simplicity 1719138SM

HANDLE, Cable

$21.99

$

Usually ships in 2-12 days

0

29

Simplicity 1960600SM

SCREW, Pan Head, #8-32 x 11/16

$4.99

$

Usually ships in 2-12 days

0

32

Simplicity 1724553SM

CAP, Plug Black Poly

$4.99

$

In Stock, only 1 left!

0

33

Simplicity 1724604SM

PINION

$107.99

$

Usually ships in 2-12 days

0

34

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 5/8, Black
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 1917356SM

LOCKWASHER, 5/16, Black
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

38

Simplicity 1723930A

COVER, Pinion
(Superseded to 1723930ASM)

$12.99

$

Usually ships in 2-12 days

0

37

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

36

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$7.49

$

In Stock, only 4 left!

0

39

Simplicity 1925003SM

CAPSCREW, Hex Washer Head, 1/4-20 x 1/2, Black
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

40

Simplicity 1715885SM

MOTOR, Electric
(Superseded to 709509)

$465.99

$

In Stock, only 1 left!

0

41

Simplicity 2172279ASM

FLANGE, Bearing

$15.99

$

In Stock, only 2 left!

0

42

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$61.99

$

In Stock, Qty 6

0

43

Simplicity 2172278ASM

FLANGE, Bearing

$11.99

$

In Stock, only 2 left!

0

44

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8, Black
(Superseded to 703408)

$4.99

$

In Stock, Qty 7

0

45

Simplicity 1960687SM

NUT, ESNA Hex, 3/8-16, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

48

Simplicity 1725747ASM

SKID & SUPPORTS ASSEMBLY
(Superseded to 1725747BMYP)

$98.99

$

In Stock, only 4 left!

0

49

Simplicity 1960702SM

CARRIAGE BOLT, 3/8-16 x 1, Black
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

50

Simplicity 1723921ASM

BLADE, Scraper
(Superseded to 1723921BMYP)

$65.99

$

Usually ships in 2-12 days

0

51

Simplicity 1935048SM

NUT, Hex Flange Lock, 5/16, Black
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

52

Simplicity 1960684SM

NUT, KEPS Hex, 5/16-18, Black
(Superseded to 703222)

$6.49

$

In Stock, only 2 left!

0

53

Simplicity 1930659SM

NUT, Retainer Speed, 5/16-18

$6.49

$

Usually ships in 2-12 days

0

54

Simplicity 1723902C

HOUSING & IMPELLER ASSEMBLY, 38"
(Superseded to 1687337SM)

$997.99

$

Usually ships in 2-12 days

0

55

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, Black
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

56

Simplicity 1715787CSM

CUTTER, Drift

$37.99

$

Usually ships in 2-12 days

0

57

Simplicity 1666613SM

CHUTE RETAINERS

$3.99

$

In Stock, Qty 20+

0

58

Simplicity 1725696SM

BOOT, Rocker Switch

$17.99

$

Usually ships in 2-12 days

0

59

Simplicity 2860664SM

SCREW, SEMS Conical Washer, 1/4-20 x 7/8 DG Point, Black

$6.49

$

In Stock, Qty 9

0

67

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

60

Simplicity 1724420SM

PLATE, Reinforcement
(Superseded to 1724420BMYP)

$46.99

$

Usually ships in 2-12 days

0

61

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

62

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

63

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

64

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0

65

Simplicity 1724553SM

CAP-Plug Black Poly

$4.99

$

In Stock, only 1 left!

0

66

Simplicity 1960685SM

NUT-KEPS Conical Washer 1/4-20
(Superseded to 703061)

$3.99

$

In Stock, Qty 11

0
