1390 E (1694872) - Simplicity 38" Snow Thrower, 13hp Auger Housing and Chute Group - 38" Models Parts Diagram

38" Snow Thrower, 13hp

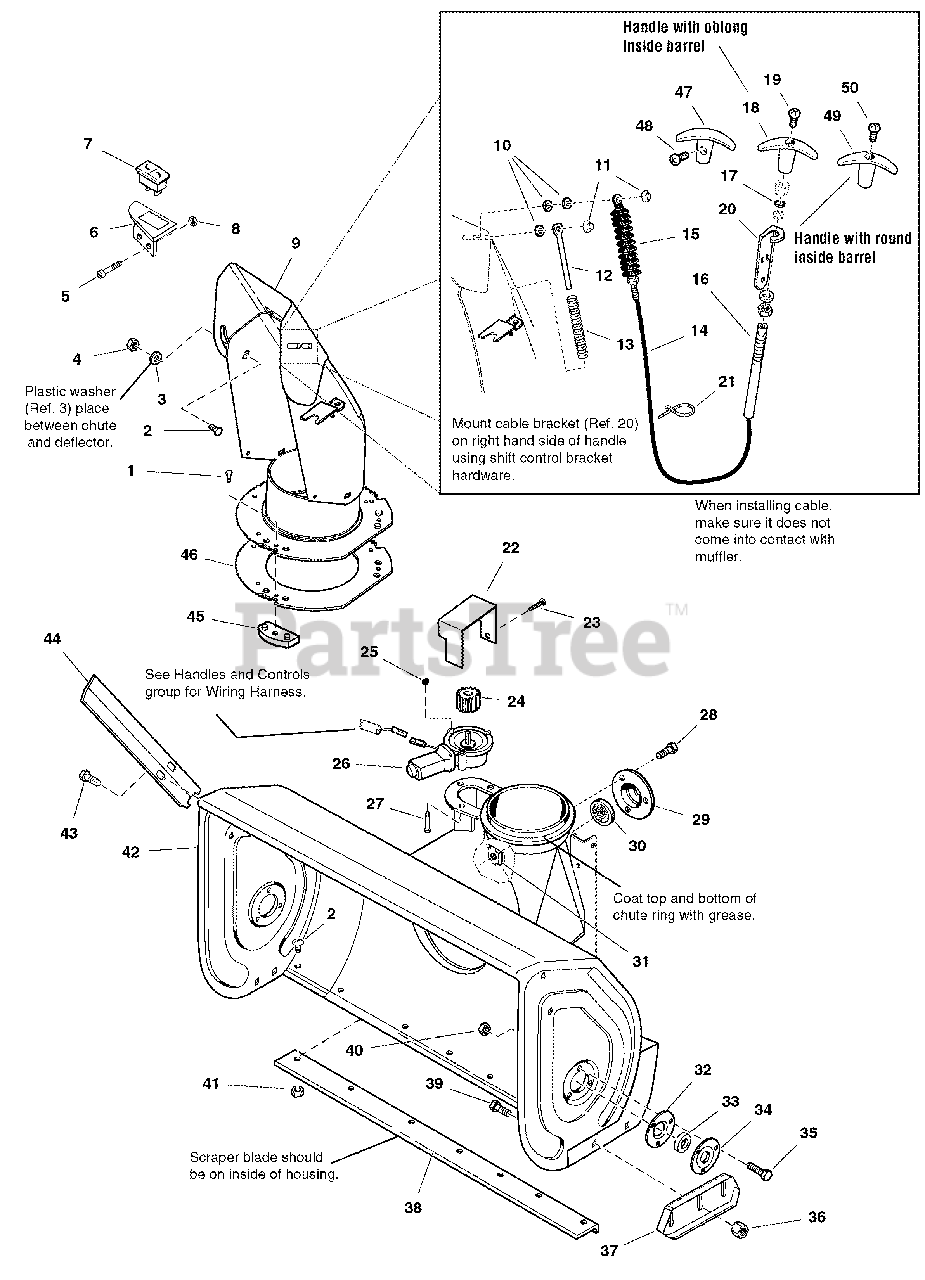

Auger Housing and Chute Group - 38" Models Parts Diagram

  • Title

1

Simplicity 1960001SM

SCREW, Hex Washer Head Pastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2860210SM

WASHER, Special, 97/250ID x 1-3/25OD x 3/100 Thick

$4.49

$

In Stock, Qty 5

0

4

Simplicity 1960686SM

NUT, Hex Falnge ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 1923341SM

SCREW, Hex Whiz Lock, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

6

Simplicity 1726992ASM

BRACKET, Mounting Switch

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 1728969SM

SWITCH, Rocker Chute

$54.99

$

In Stock, only 4 left!

0

8

Simplicity 1933896SM

NUT, Hex Nylon 10-24
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

9

Simplicity 1731435C

CHUTE AND DEFLECTOR ASSEMBLY
(Superseded to 1731435CSM)

$370.99

$

Usually ships in 2-12 days

0

10

Simplicity 1702219SM

SPACER, Heat Treated

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 1960126SM

NUT, Push Pal, 1/4" Diameter Stud Capped
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

12

Simplicity 1611945SM

ROD, 5/16" Diameter, Spring Guide

$13.99

$

In Stock, only 1 left!

0

13

Simplicity 1611939SM

SPRING, Complete

$10.99

$

In Stock, only 1 left!

0

14

Simplicity 1720446SM

CABLE AND KNOB ASSEMBLY, Chute (Includes Ref. No. 18, 19, 20, 21 & 22)

$179.99

$

In Stock, Qty 6

0

15

Simplicity 1700048SM

BOOT, Bellows

$33.99

$

Usually ships in 2-12 days

0

16

Simplicity 1719140

COLLET
(Superseded to 1718771SM)

$186.99

$

In Stock, only 1 left!

0

17

Simplicity 1719139

SEAL, Rod

$

$

Not available

18

Simplicity 1719138SM

KNOB

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

19

Simplicity 1960600SM

SCREW, 8-32

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1726411ASM

SUPPORT, Cable

$

$

Not available

21

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

22

Simplicity 1729645ASM

COVER, Pinion, 18GA

$17.99

$

Usually ships in 2-12 days

0

23

Simplicity 1925003SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

24

Simplicity 1728967SM

PINION, 1-3/20 LG

$17.99

$

In Stock, Qty 11

0

25

Simplicity 1960745SM

NUT, Hex KEPS, #10-24
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1728965SM

MOTOR, Electric

$176.99

$

In Stock, Qty 6

0

27

Simplicity 2860604SM

SCREW, Hex Washer Head Slot, #10-24 x 1-1/4

$4.49

$

In Stock, Qty 5

0

28

Simplicity 1960738SM

CAPSCREW, Hex Head Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 20+

0

29

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

30

Simplicity 1729578SM

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

31

Simplicity 1930659SM

NUT, Retainer Speed, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 2172279ASM

FLANGE, Bearing, w/Fitting

$14.99

$

Usually ships in 2-12 days

0

33

Simplicity 2173934SM

BEARING, Cartridge
(Superseded to 1733105SM)

$57.99

$

In Stock, only 2 left!

0

34

Simplicity 2172278ASM

FLANGE, Bearing, 3/8" Deep

$11.99

$

In Stock, only 2 left!

0

35

Simplicity 1925205SM

CAPSCREW, Hex head, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

36

Simplicity 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 1725747ASM

SKID SHOE, 7GA Formed, Heat Treated
(Superseded to 1725747BMYP)

$92.99

$

In Stock, Qty 5

0

38

Simplicity 1723921ASM

BLADE, Scraper, 35-3/4 for 38"
(Superseded to 1723921BMYP)

$65.99

$

Usually ships in 2-12 days

0

39

Simplicity 1960702SM

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

40

Simplicity 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

41

Simplicity 1935048SM

NUT, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

42

Simplicity 1729734C

HOUSING AND IMPELLER ASSEMBLY, 38"
(Superseded to 1687339SM)

$740.99

$

Usually ships in 2-12 days

0

43

Simplicity 1664847SM

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 G5
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

44

Simplicity 1733102CSM

CUTTER, Drift, Red
(Superseded to 1733102ASM)

$31.99

$

In Stock, only 4 left!

0

45

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

Usually ships in 2-12 days

0

46

Simplicity 1717477ASM

GEAR, Chute

$50.99

$

Usually ships in 2-12 days

0

47

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

48

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

50

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0
