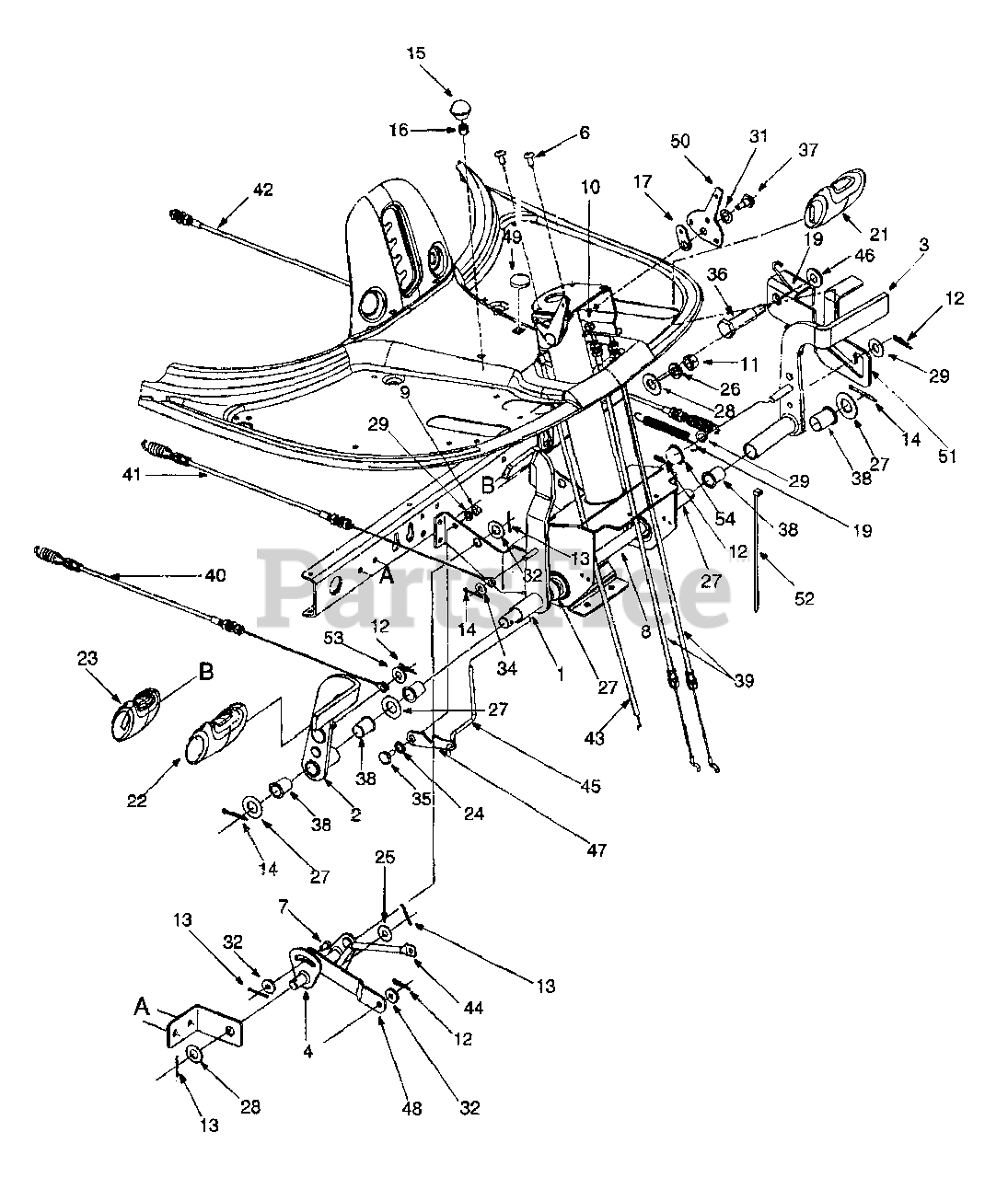

13A-325-190 - White Outdoor Yard Bug 27" Rear-Engine Riding Mower (1999) > Parts Diagrams (16) > Operation Control

  • Title
683-0155

1

Brake Pedal Assembly

Part# 683-0155

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PEDAL ASSY-BRAKE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-0156

2

Variable Pedal Assembly

Part# 683-0156

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

No Longer Available

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-0275

3

Deck Pedal Assembly

Part# 683-0275

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

OLD CUB YELLOW (0498)

PEDAL ASSY-DECK

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

POWDER BLACK (0637)

PEDAL ASSY-DECK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

RED METALLIC (0650)

PEDAL ASSY-DECK

Part# RED METALLIC (0650)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

PEDAL ASSY-DECK

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

683-0161

4

Shift Cam Assembly

Part# 683-0161

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

CAM ASSEMBLY-SHIFT

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

710-1017

6

Ab Screw 1/4-14 X .625

Part# 710-1017

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.82

711-0701

7

Clevis Pin

Part# 711-0701 (Superseded to 911-0701)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

711-1156

8

Shaft

Part# 711-1156

OEM Warranty Repair Part for White Outdoor

Not available

712-0287

9

Hex Nut 1/4-20

Part# 712-0287 (Superseded to 912-0287)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

712-0324

10

Lock Nut 1/4-20

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.68

712-3017

11

Hex Nut 3/8-16

Part# 712-3017 (Superseded to 912-3017)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0104

12

Internal Cotter Pin

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

714-0111

13

Hairpin Clip

Part# 714-0111 (Superseded to 914-0111)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.36

714-0470

14

Hairpin Clip

Part# 714-0470 (Superseded to 914-0470)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

720-0166

15

Ball Knob

Part# 720-0166

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.63

731-0405

16

Snap-on Bushing

Part# 731-0405

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $6.61

731-1913

17

Stop Lever

Part# 731-1913

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.29

732-0865

19

Torsion Spring

Part# 732-0865

OEM Warranty Repair Part for White Outdoor

Not available

732-0815

?20

Extension Spring

Part# 732-0815

OEM Warranty Repair Part for White Outdoor

Not available

735-0262

21

Deck Pad

Part# 735-0262

OEM Warranty Repair Part for White Outdoor

Not available

735-0261

22

Drive Pad

Part# 735-0261

OEM Warranty Repair Part for White Outdoor

Not available

735-0263

23

Brake Pad

Part# 735-0263

OEM Warranty Repair Part for White Outdoor

Not available

736-0117

24

Flat Washer 3/8 X .620 X .033

Part# 736-0117 (Superseded to 936-0117)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.97

736-0159

25

5/16 Washer

Part# 736-0159 (Superseded to 936-0159)

OEM Warranty Repair Part for White Outdoor

Not available

736-0169

26

Lock Washer

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.64

736-0187

27

Flat Washer

Part# 736-0187

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

736-0272

28

Flat Washer .510 X 1.00 X .060

Part# 736-0272 (Superseded to 936-0272)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.50

736-0133

29

Flat Washer .406 x 1.25 x .10

Part# 736-0133 (Superseded to 936-0133)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.57

736-0329

?30

Lock Washer

Part# 736-0329 (Superseded to 936-0329)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.11

736-0608

31

Spring Washer

Part# 736-0608 (Superseded to 936-0141)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

736-3000

32

Flat Washer

Part# 736-3000 (Superseded to 936-0176)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

736-3019

?33

Flat Washer .531 X 1.062 X .134

Part# 736-3019

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.33

736-3020

34

Flat Washer .271 X .630 X .065

Part# 736-3020 (Superseded to 936-3020)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.76

738-0255

35

Shoulder Screw .375 Dia. X .18

Part# 738-0255 (Superseded to 938-0255)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.63

738-0373

36

Shoulder Screw

Part# 738-0373 (Superseded to 938-0373)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.70

738-0974

37

Shoulder Screw .375 X .380 X 1/4-20

Part# 738-0974 (Superseded to 938-0974)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $7.69

741-0591

38

Flange Bearing

Part# 741-0591 (Superseded to 941-0591)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.19

746-0935A

39

Shift Cable

Part# 746-0935A (Superseded to 946-0935A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $55.18

746-0936

40

Variable Drive Cable

Part# 746-0936 (Superseded to 946-0936)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $45.55

746-0937

41

Brake Cable

Part# 746-0937 (Superseded to 946-0937)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $46.23

746-0940

42

Deck Cable

Part# 746-0940 (Superseded to 946-0940)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $46.76

746-0964

43

Throttle Choke Cable: 67"

Part# 746-0964 (Superseded to 946-0964)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $49.18

747-0963

44

Brake Rod

Part# 747-0963

OEM Warranty Repair Part for White Outdoor

Not available

747-0964

45

Brake Lock Out Rod

Part# 747-0964

OEM Warranty Repair Part for White Outdoor

Not available

750-0736

46

Shoulder Spacer

Part# 750-0736 (Superseded to 950-0736)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.29

783-0473

47

Brake Lock Out Bracket

Part# 783-0473

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-BRAKE LOCK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

783-0525

48

Self-Propelled Pedal Link

Part# 783-0525

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

LINK-VARIABLE SPEE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

726-0450

49

Plug Cap

Part# 726-0450

OEM Warranty Repair Part for White Outdoor

Not available

783-0593A

50

Shift Lever

Part# 783-0593A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $20.86

783-0794

51

Bracket: Lock-out Pedal

Part# 783-0794

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-LOCK PEDAL

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $43.92

725-0157

52

Cable Tie

Part# 725-0157

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.74

736-0300

53

Flat Washer .406 I.D. x .875 O.D.

Part# 736-0300 (Superseded to 936-0300)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.15

726-0100

54

Push Cap

Part# 726-0100 (Superseded to 926-0100)

OEM Warranty Repair Part for White Outdoor

Not available
