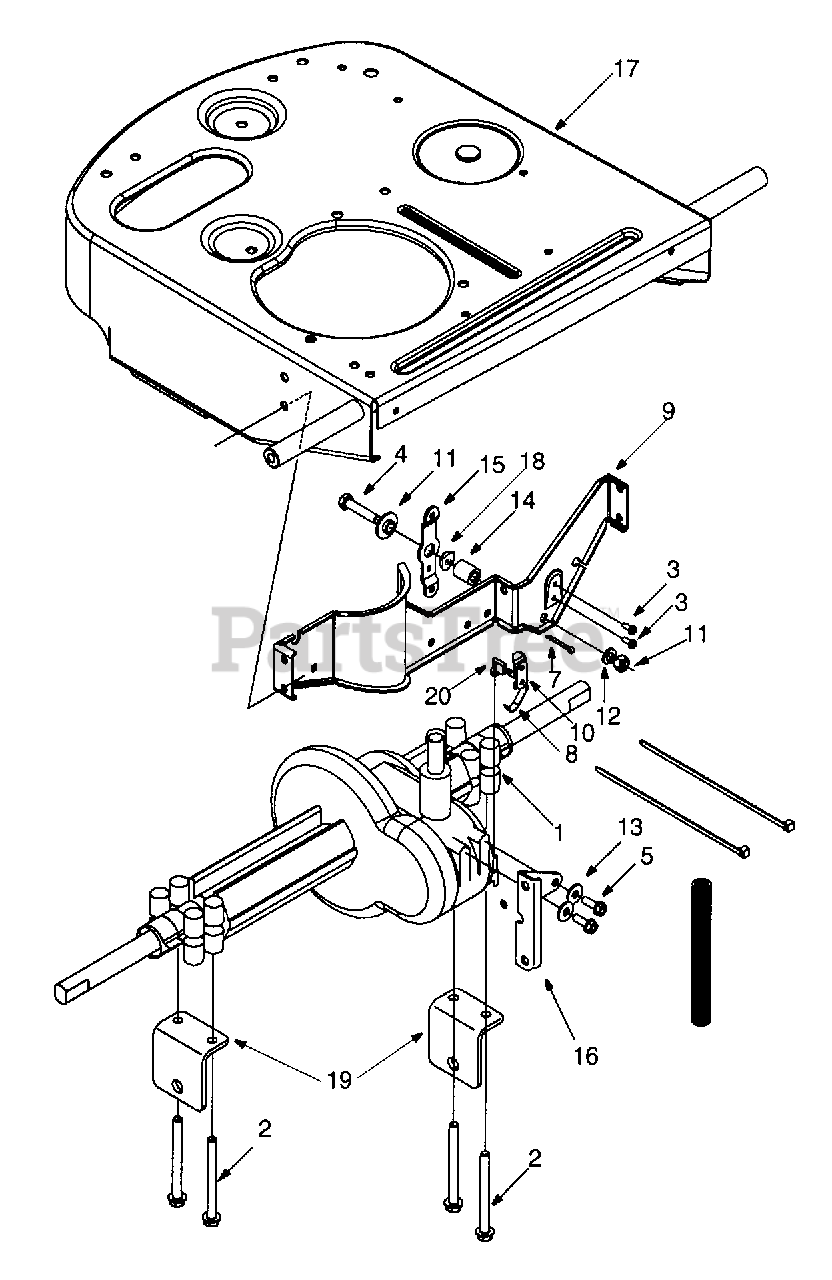

13A-325-190 - White Outdoor Yard Bug 27" Rear-Engine Riding Mower (1999) > Parts Diagrams (16) > Transaxle Assembly

  • Title
629-0865

1

Harness Assembly Adapter

Part# 629-0865

OEM Warranty Repair Part for White Outdoor

Not available

710-1208

2

Hex TT Screw 5/16-18 x 3.50

Part# 710-1208

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.87

710-0227

3

Hex Washer Head Self-Tap. Screw

Part# 710-0227

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.09

710-0805

4

Hex Screw 5/16-18 x 1.5 Gr. 5

Part# 710-0805 (Superseded to 710-0805A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

710-0642

5

Thd. Forming Scr. 1/4-20 x .75

Part# 710-0642

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.21

712-3010

?6

Hex Nut 5/16-18

Part# 712-3010 (Superseded to 912-3010)

OEM Warranty Repair Part for White Outdoor

Not available

714-0115

7

Cotter Pin

Part# 714-0115 (Superseded to 914-0115)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.79

726-0320

8

Insulator Nut Plate

Part# 726-0320 (Superseded to 926-0320)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.81

783-0809

9

Transaxle Support Bracket

Part# 783-0809

Note: Code: N Notates a new part (not previously existing).

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-TRANS SUPP

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

725-1713A

10

Spring Switch

Part# 725-1713A (Superseded to 725-1746)

OEM Warranty Repair Part for White Outdoor

Not available

736-0289

11

Shoulder Bushing

Part# 736-0289 (Superseded to 936-0289)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.81

736-0119

12

Lock Washer 5/16

Part# 736-0119 (Superseded to 936-0119)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.41

736-0173

13

Flat Washer .28 I.D. x .74 O.D. x .083

Part# 736-0173

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.99

750-1064

14

Spacer

Part# 750-1064 (Superseded to 950-1064)

OEM Warranty Repair Part for White Outdoor

Not available

783-0433A

15

Shift Lever

Part# 783-0433A

OEM Warranty Repair Part for White Outdoor

Not available

783-0591

16

Transaxle Bracket

Part# 783-0591

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-TRANSAXLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

683-0149A

17

Frame Assembly

Part# 683-0149A

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

FRAME ASSEMBLY

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available FRAME ASSEM

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

736-3013

18

Flat Washer

Part# 736-3013 (Superseded to 936-3013)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.10

783-0437

19

Rear Axle Bracket

Part# 783-0437

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET-REAR AXLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

BRACKET-REAR AXLE

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

SEARS RED (0721)

BRACKET-REAR AXLE

Part# SEARS RED (0721)

OEM Warranty Repair Part for White Outdoor

Not available

CRAFTSMAN RED (4044)

BRACKET-REAR AXLE

Part# CRAFTSMAN RED (4044)

OEM Warranty Repair Part for White Outdoor

Not available

729-0268

20

Insulation Connector

Part# 729-0268

OEM Warranty Repair Part for White Outdoor

Not available
