13A-325-190 - White Outdoor Yard Bug 27" Rear-Engine Riding Mower (1999) Wheel Assembly Parts Diagram

Yard Bug 27" Rear-Engine Riding Mower

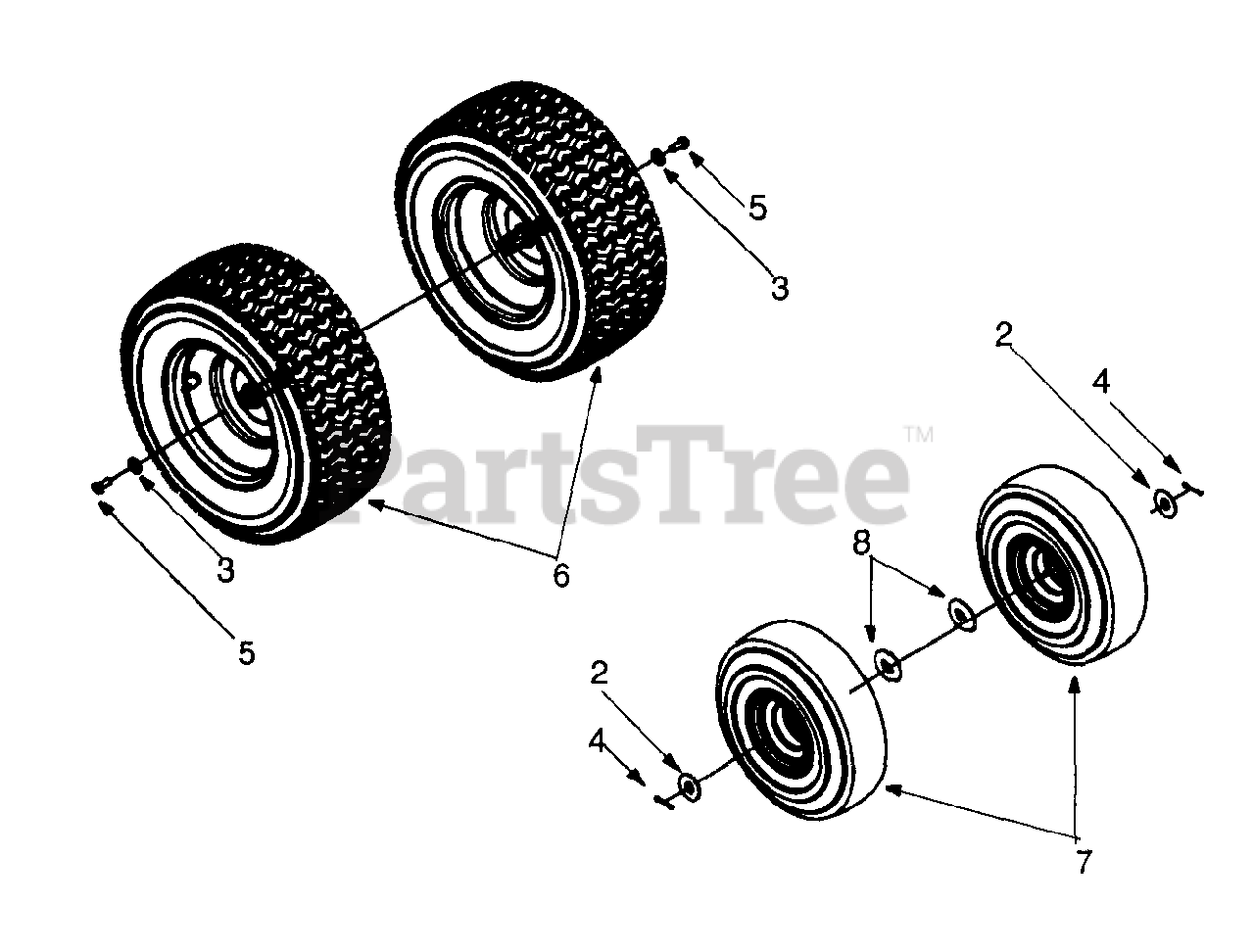

Wheel Assembly Parts Diagram

  • Title

?1

737-0288

Grease Fitting

Note: (Not Shown)

$

$

Not available

2

White Outdoor 736-0285

Flat Washer .635 x 1.589 x .060

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 736-0242

Bell Washer .345 I.D. x .88 O.D. x .06

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 714-0115

Hairpin Clip

$4.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 6

0

6

White Outdoor 634-0139

Rear Wheel 16.0 x 6.5 x 8.0

Variations

634-0139-0911

White Outdoor 634-0139-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$339.99

$

Usually ships in 3-6 days

0

634-0139-0931

White Outdoor 634-0139-0931

WHEEL ASS'Y-COMP - Carlisle Beige (0931)

$339.99

$

Usually ships in 3-6 days

0

634-0139-0941

White Outdoor 634-0139-0941

WHEEL ASS'Y-COMP - Carlisle Yellow (0941)

$315.99

$

Usually ships in 3-6 days

0

634-0139-0961

White Outdoor 634-0139-0961

WHEEL ASS'Y-COMP - Carlisle Gray (0961)

$115.99

$

Usually ships in 3-6 days

0

634-0139-0976

White Outdoor 634-0139-0976

WHEEL ASS'Y-COMP - Kenda Yellow (0976)

$315.99

$

Usually ships in 3-6 days

0

$275.99

$

Usually ships in 3-6 days

0

7

White Outdoor 634-0169

Front Wheel 11.0 x 4.0 x 4.0
(Superseded to 634-0147)

Variations

634-0169-0911

White Outdoor 634-0169-0911

Wheel Assembly, Complete - Carlisle Gray (0911)

$

$

Not available

634-0169-0931

White Outdoor 634-0169-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

634-0169-0941

White Outdoor 634-0169-0941

Wheel Assembly, Complete - Carlisle Yellow (0941)

$

$

Not available

$

$

8

White Outdoor 736-0366

Flat Washer 5/8 I.D. x 1.0 O.D.

Note: Code: N Notates a new part (not previously existing).

$4.99

$

In Stock, Qty 20+

0
