13A-325-402 - Yard-Man Lawn Tractor (1999) Deck Accessory - Three-In-One Parts Diagram

Lawn Tractor

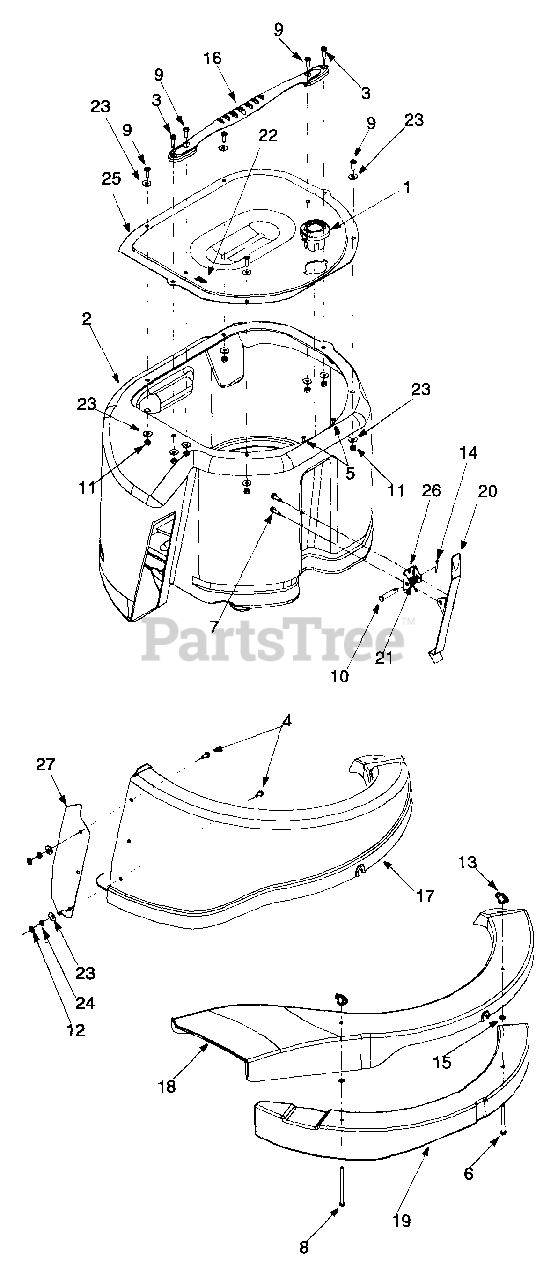

Deck Accessory - Three-In-One Parts Diagram

  • Title

1

MTD 631-0060

Flow Indicator Assembly
(Superseded to 931-0060)

$

$

Not available

2

MTD 631-0080

Grass Bag Assembly

Note: Code: N

$

$

Not available

3

MTD 710-0166

Machine Screw 1/4-20 x 1.0
(Superseded to 710-0166A)

$6.99

$

In Stock, only 1 left!

0

4

MTD 710-0286

Machine Screw 1/4-20 x 0.5"

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-0456

Hex Screw #10-16 x 0.5"

$

$

Not available

6

MTD 710-0564

Hex Screw 1/4-20 x 2.75"

$6.49

$

In Stock, only 3 left!

0

7

MTD 710-0642

Self-Tapping Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0825

Hex Screw 1/4-20 x 3.75"

$5.49

$

In Stock, Qty 5

0

9

MTD 710-0924

Machine Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0415

Clevis Pin

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0298

Jam Nut
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

13

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

14

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

15

MTD 726-0271

Speed Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

16

MTD 731-1441

Bag Handle

$

$

Not available

17

MTD 731-1743A

Discharge Chute: Grass Bag

$

$

Not available

18

MTD 731-1744

Side-Discharge Chute

$

$

Not available

19

MTD 731-1745A

Mulching Plug

$

$

Not available

20

MTD 732-0839

Bag Release Lever
(Superseded to 732-0839A)

$

$

Not available

21

MTD 732-0841

Torsion Spring
(Superseded to 932-0841)

$

$

Not available

22

MTD 732-0854

Clip Spring

$

$

Not available

23

MTD 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

24

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

25

MTD 783-0544

Grass Bag Screen
(Superseded to 783-0544A-0637)

Variations

MTD 783-0544-0637

SCREEN-BAG - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 783-0575A

Pivot Bracket
(Superseded to 783-0575B-0637)

Variations

MTD 783-0575A-0637

BRAKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 783-0645

Deflector Plate

Variations

MTD 783-0645-0637

No Longer Available PLATE-CHUT - POWDER BLACK (0637)

$

$

Not available

$

$
