13A-325-402 - Yard-Man Lawn Tractor (1999) Hood Assembly Parts Diagram

Lawn Tractor

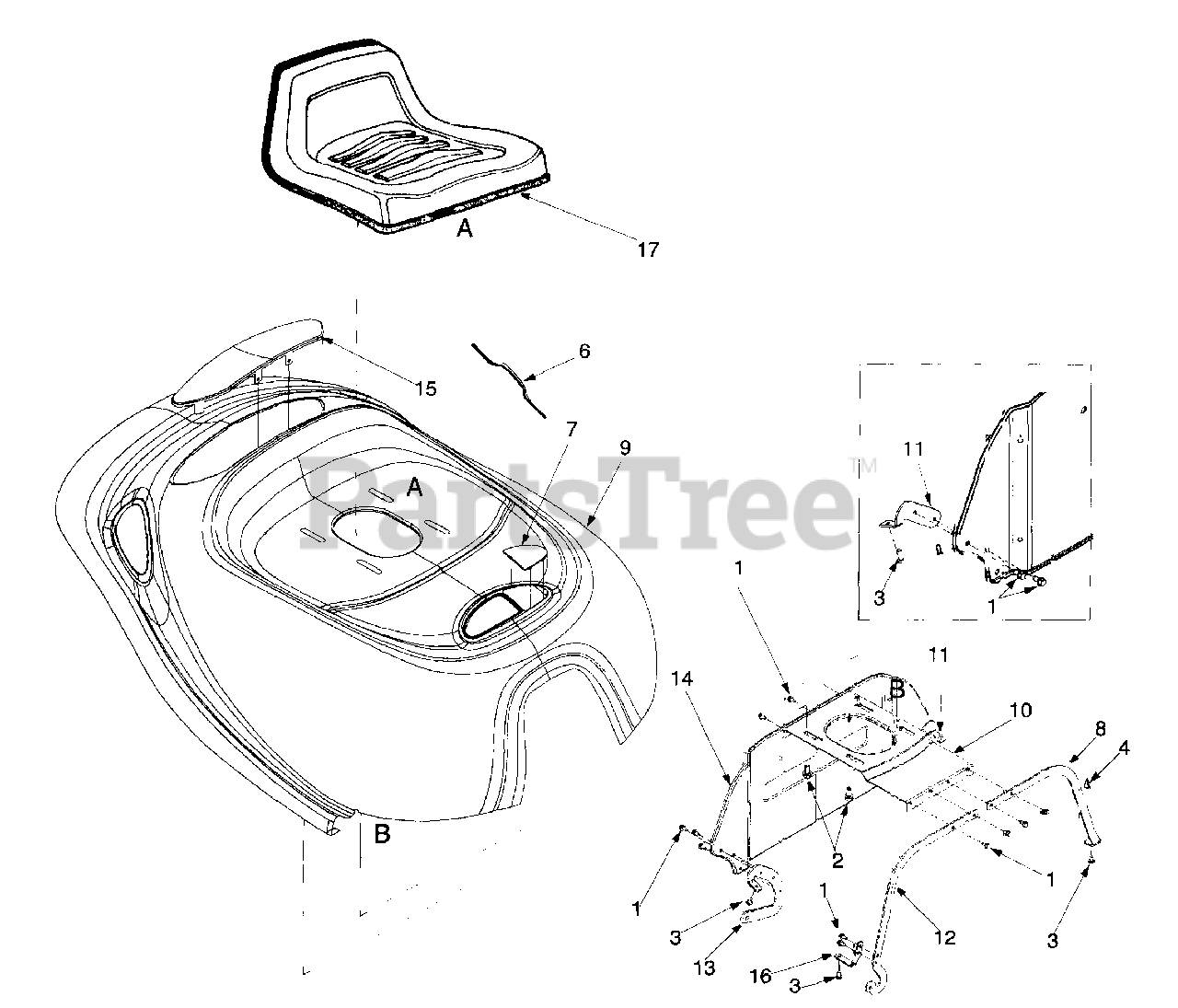

Hood Assembly Parts Diagram

  • Title

1

MTD 710-0599

Hex Hd. TT Screw 1/4-20 x 05

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0870

Hex Washer Hd. TT Screw 3/8-16 x 0.62

$5.99

$

In Stock, only 2 left!

0

3

MTD 710-1017

Torx Head AB screw 1/4-14 x 0.625

$7.99

$

In Stock, Qty 20+

0

4

MTD 720-0238

Rod End Grip

$3.49

$

Usually ships in 3-6 days

0

?5

MTD 720-3026

Edge Trim

$

$

Not available

6

MTD 731-0511

Trim Strip

$3.49

$

Usually ships in 3-6 days

0

7

MTD 731-1691

Grass Bag Lens

$

$

Not available

8

MTD 783-0410

Bracket Reinforcement: Hood
(Superseded to 783-0410-0637)

Variations

MTD 783-0410-0637

Bracket Reinforcement: Hood - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 783-0445

Hood

Variations

MTD 783-0445-0499

No Longer Available HOOD - CUB BEIGE (0499)

$

$

Not available

MTD 783-0445-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0445-0662

HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0445-0665

HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0445-0721

HOOD - SEARS RED (0721)

$

$

Not available

MTD 783-0445-4044

HOOD - CRAFTSMAN RED (4044)

$

$

Not available

$414.99

$

Usually ships in 3-6 days

0

10

MTD 783-0446

Plate: Hood

Variations

MTD 783-0446-0637

No Longer Available PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 783-0447

Hood Bracket

$

$

Not available

12

MTD 783-0448

Hood Bracket: Reinforcement

Variations

MTD 783-0448-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 783-0449

Hinge Bracket: Rear
(Superseded to 783-0449A-0637)

Variations

MTD 783-0449-0637

BRACKET-HOOD HINGE - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 783-0451A

Pivot Plate: Rear Hood

Variations

MTD 783-0451A-0637

No Longer Available PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 783-0545

Hood Screen

Variations

MTD 783-0545-0637

No Longer Available SCREEN-HOO - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 783-0562

Hinge Bracket: Front

Variations

MTD 783-0562-0637

No Longer Available BRACKET-HO - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 757-0364A

Seat
(Superseded to 957-0378)

$

$

Not available
