13A-328-402 - Yard-Man Lawn Tractor (2000) Transaxle Brackets Parts Diagram

Lawn Tractor

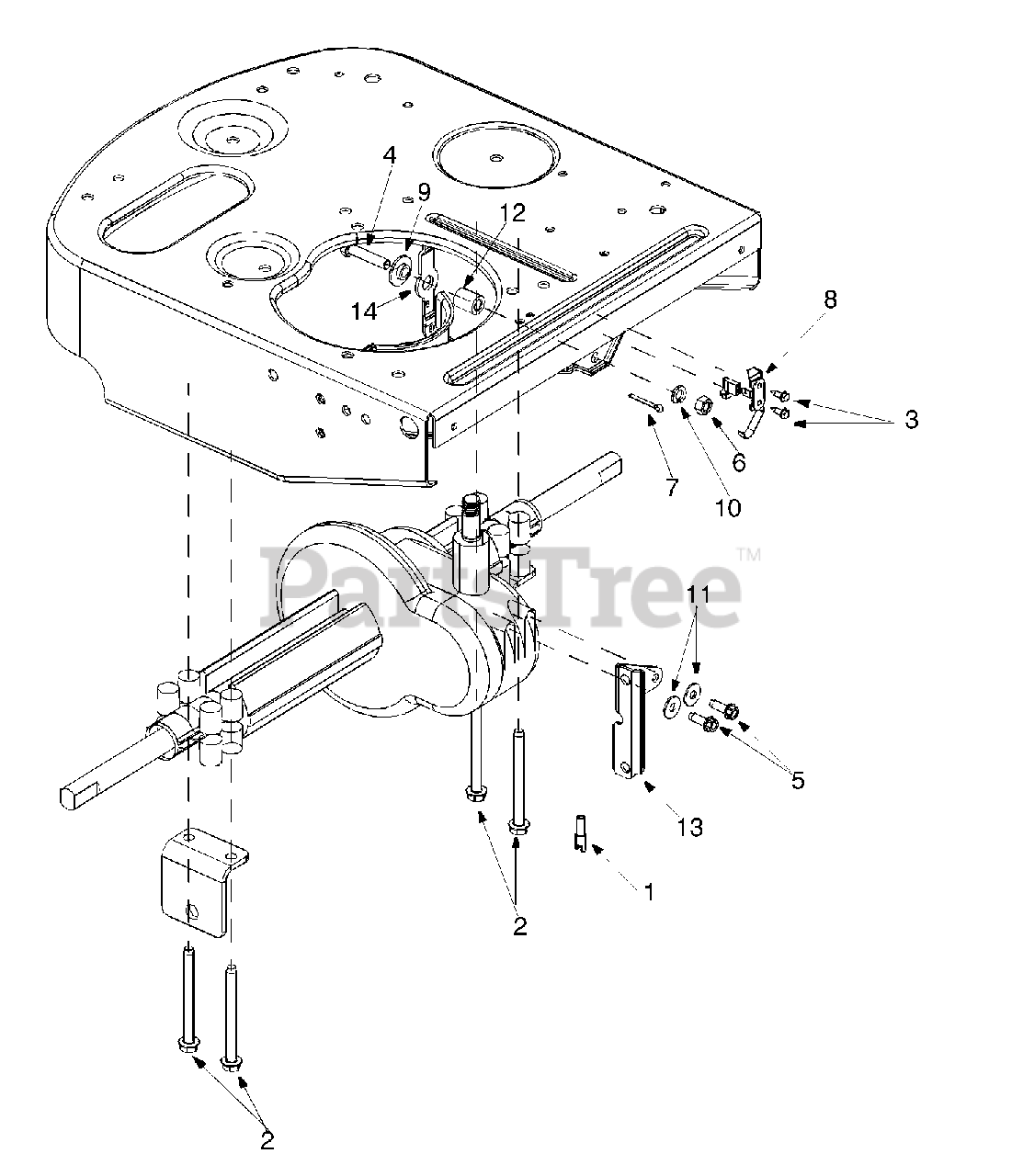

Transaxle Brackets Parts Diagram

  • Title

1

MTD 629-0865

Harness Assembly Adapter

$

$

Not available

2

MTD 710-1208

Hex TT Screw 5/16-18 x 3.50

$6.49

$

In Stock, only 2 left!

0

3

MTD 710-0227

Hex Washer Head Self-Tap. Screw

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0805

Hex Screw 5/16-18 x 1.5 Gr. 5
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

5

MTD 710-0642

Thd. Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

8

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 10

0

9

MTD 736-0289

Shoulder Bushing
(Superseded to 936-0289)

$6.49

$

In Stock, only 1 left!

0

10

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

11

MTD 736-0173

Flat Washer .28 I.D. x .74 O.D. x .083

$3.99

$

In Stock, Qty 10

0

12

MTD 750-1064

Spacer
(Superseded to 950-1064)

$

$

Not available

13

MTD 783-0591

Transaxle Bracket

Variations

MTD 783-0591-0637

Transaxle Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 783-0433A

Shift Lever

$

$

Not available
