13A132-0021-F1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

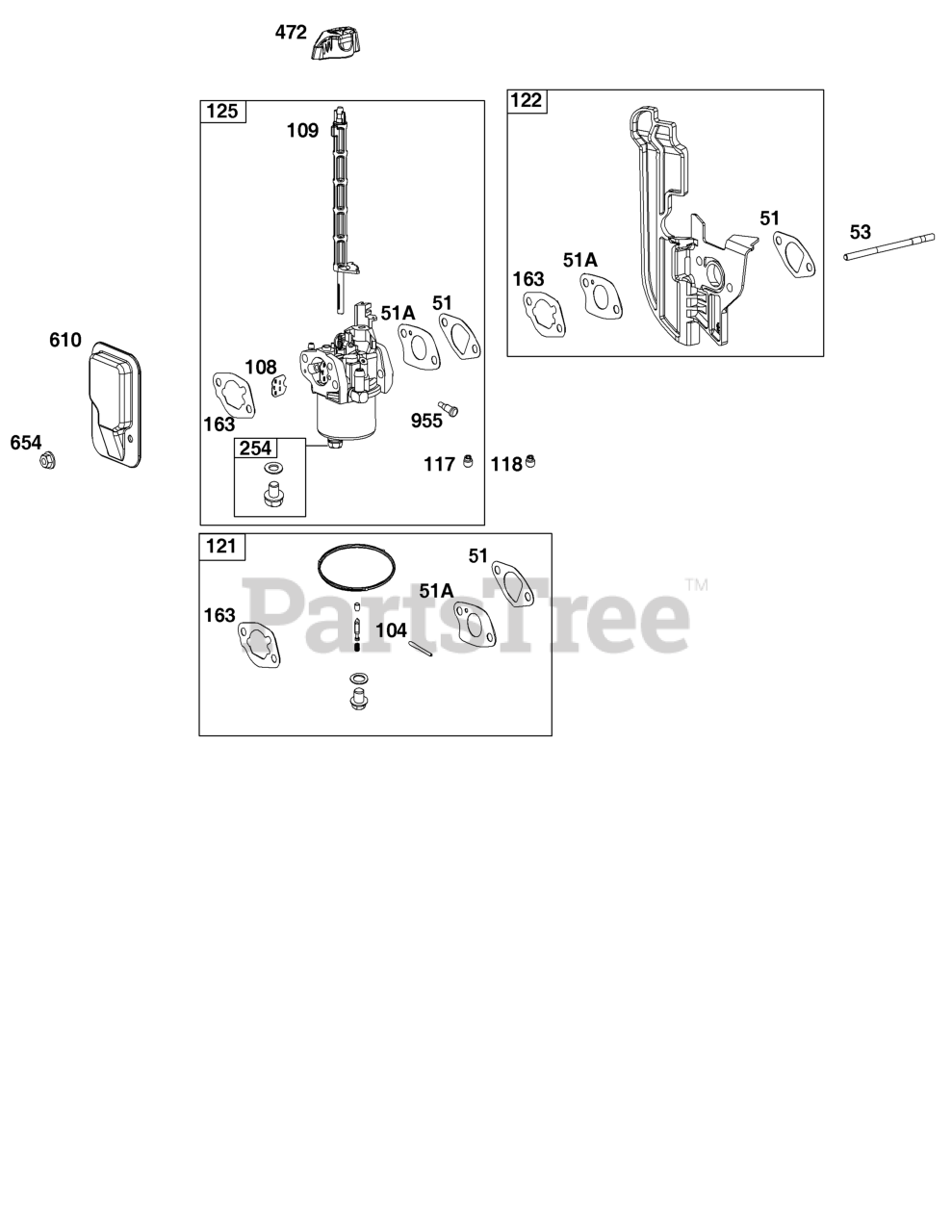

Carburetor Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

53

Briggs & Stratton 591455

STUD

Note: (Carburetor)

$6.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 592486

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 591860

VALVE, Choke

$9.49

$

In Stock, only 1 left!

0

109

Briggs & Stratton 591542

SHAFT, Choke

$20.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 591859

JET, Main

Note: (Standard)

$19.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 591861

JET, Main

Note: (High Altitude)

$19.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 591770

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$43.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 592550

SPACER, Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 595785

CARBURETOR

$103.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 590605

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 20+

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

472

Briggs & Stratton 791948

KNOB, Choke Shaft

$7.99

$

In Stock, Qty 6

0

610

Briggs & Stratton 591153

ARRESTER, Intake

$20.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 591527

NUT

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

955

Briggs & Stratton 595329

PLUG, Carburetor

$3.99

$

Usually ships in 2-12 days

0
