13A226JD000 - Yard Machines Lawn Tractor (2012) Frame & Fender Parts Diagram

Lawn Tractor

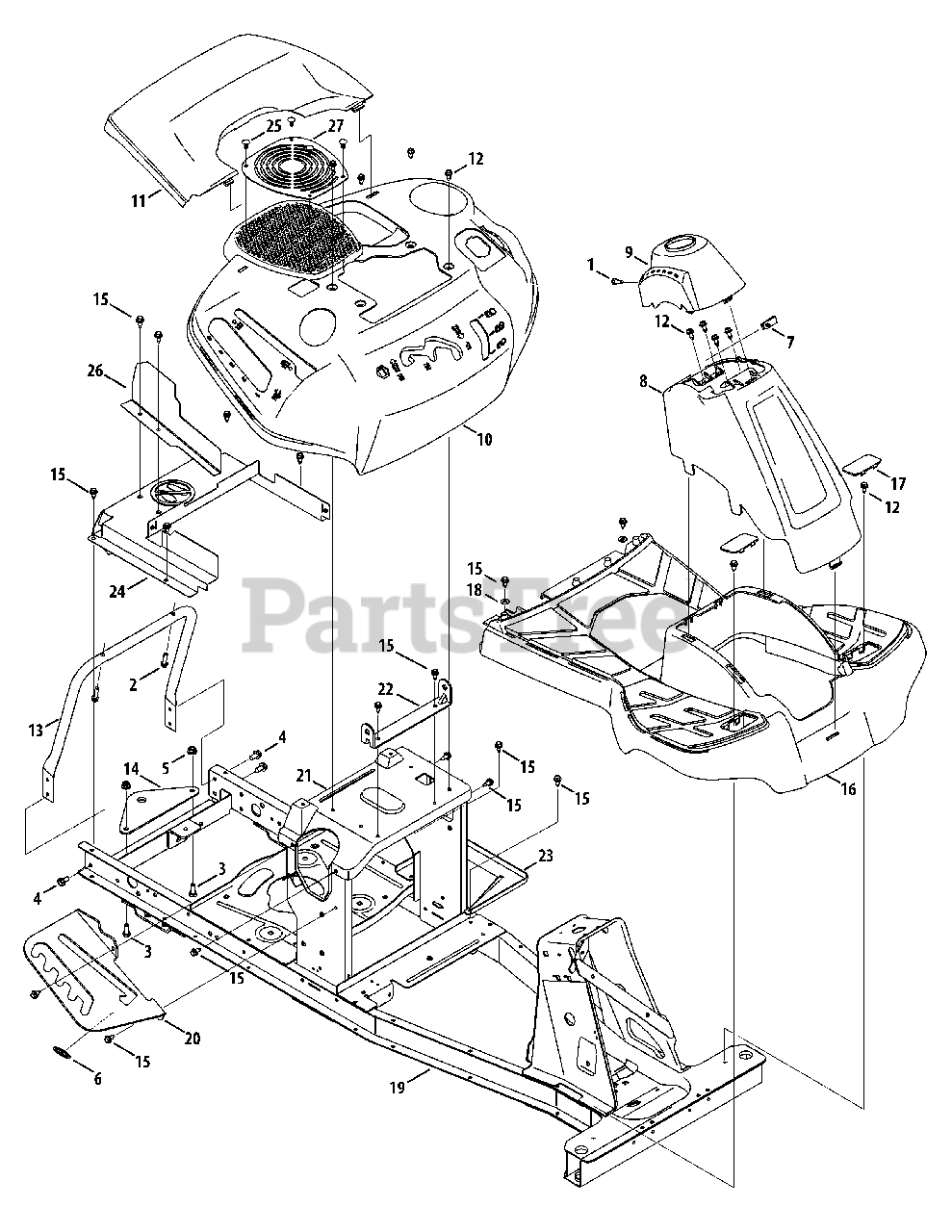

Frame & Fender Parts Diagram

  • Title

1

MTD 710-0924

Machine Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-1241

Hex Screw, 1/4-15, 1.000

$6.99

$

In Stock, Qty 20+

0

3

MTD 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Locknut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 726-0221

Speed Nut

$6.49

$

Usually ships in 3-6 days

0

7

MTD 712-04092

U-type Speed Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

8

MTD 731-08633

Column Cover

$39.99

$

Usually ships in 3-6 days

0

9

MTD 731-08635

Steering Column Cap

$16.99

$

Usually ships in 3-6 days

0

10

MTD 931-08529

Fender, (MTD Eng. 4P90JU)
(Superseded to 631-04655)

$

$

Not available

11

MTD 731-08620

Rear Cover
(Superseded to 731-08620A)

$33.99

$

In Stock, Qty 13

0

12

MTD 738-04184A

Shoulder Screw, .368 X.113: 1/4-20

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-04932-0637

Rear Cover Support Tube

$33.99

$

In Stock, only 1 left!

0

14

MTD 783-07208-0637

Hitch Plate
(Superseded to 783-07208A-0637)

$8.49

$

In Stock, only 2 left!

0

15

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

16

MTD 731-08528

Running Board
(Superseded to 731-08528A)

$

$

Not available

17

MTD 731-08753

Running Board Plug
(Superseded to 731-08753B)

$4.49

$

In Stock, only 2 left!

0

18

MTD 936-0463

Flat Washer, .250 x .630 x .052
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

19

MTD 683-04751-0637

Frame Assembly

$

$

Not available

20

MTD 783-07125-0637

Deck Lift Index Bracket
(Superseded to 783-08260-0637)

$29.99

$

In Stock, only 1 left!

0

21

MTD 783-07162

Seat Pan
(Superseded to 783-08197)

Variations

MTD 783-07162-0637

Seat Pan - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

22

MTD 783-07168-0637

Seat Pivot Bracket

$6.49

$

In Stock, Qty 14

0

23

MTD 783-07215-0637

Battery Tray

$18.99

$

Usually ships in 3-6 days

0

24

MTD 783-07302

Top Rear Drive Cover

$64.99

$

Usually ships in 3-6 days

0

25

MTD 726-3046

Clip, .250 Dia., (MTD Eng. 4P90JUA)

Note: Not Used in this application

$3.99

$

In Stock, Qty 20+

0

26

MTD 783-07388A

Shield, (MTD Eng. 4P90JUA)

Note: Not Used in this application

$

$

Not available

27

MTD 783-07402-0637

Screen Cover, (MTD Eng. 4P90JUA)

Note: Not Used in this application

$

$

Not available
