13A326JC700 - Yard Machines Lawn Tractor (2014) Deck Lift Parts Diagram

Lawn Tractor

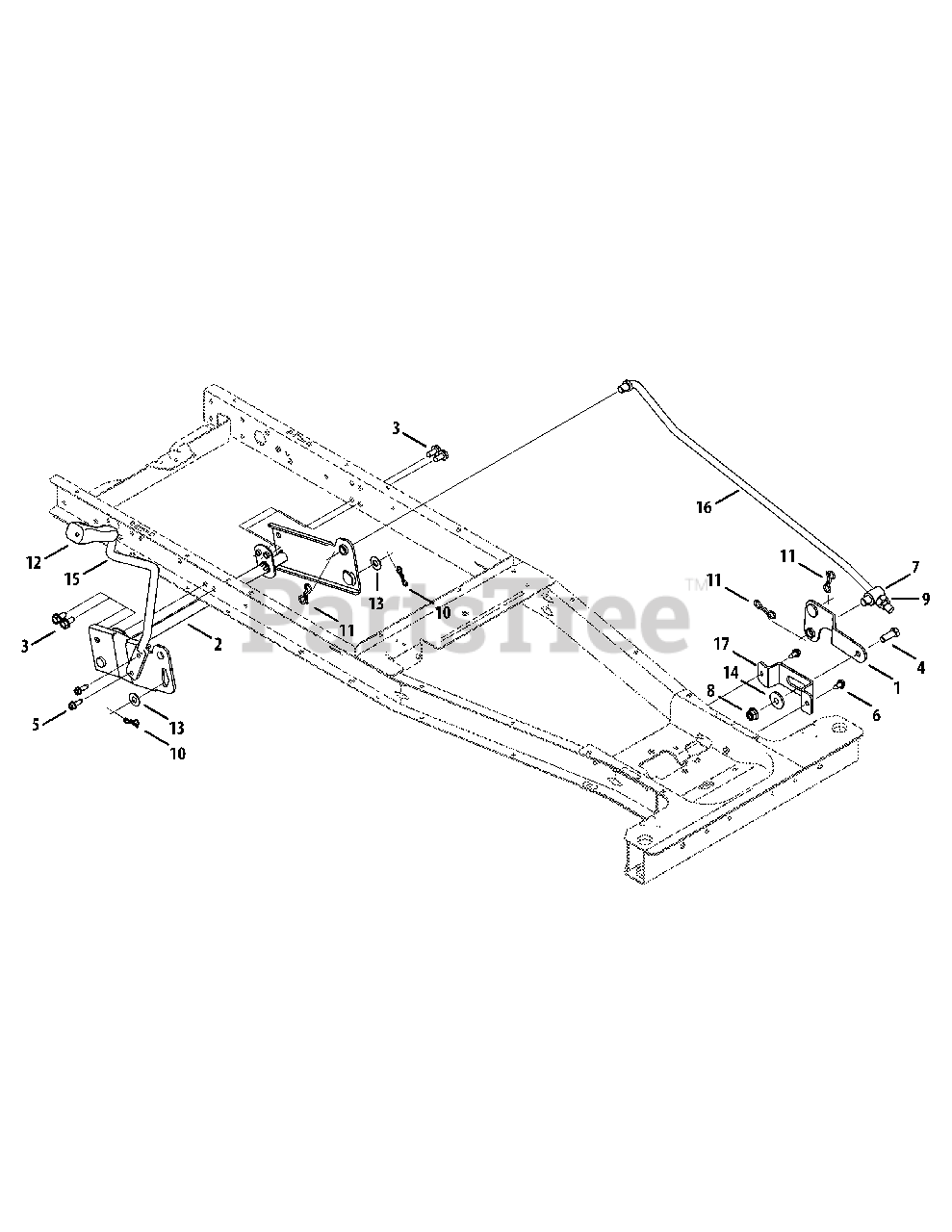

Deck Lift Parts Diagram

  • Title

1

MTD 683-05011-0637

Front Hanger Bracket Assembly

$17.99

$

Usually ships in 3-6 days

0

2

MTD 683-05018-0637

Lift Assembly Shaft

$39.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

Tap Screw, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-0514

Hex Head Screw, 3/8-16, 1.00

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0642

Tap Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1652

Tap Screw, 1/4-20 X .625

$3.99

$

In Stock, Qty 20+

0

7

MTD 711-05690

Ferrule, .50 X .50
(Superseded to 711-05690C)

$10.99

$

In Stock, only 1 left!

0

8

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-05046

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

11

MTD 714-04043

Bow-Tie Cotter Pin, 91

$4.49

$

In Stock, Qty 20+

0

12

MTD 720-0311

Grip Handle, 1/2

$14.99

$

In Stock, Qty 7

0

13

MTD 936-0300

Flat Washer, .406 X .875 X .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

14

MTD 938-0347

Shoulder Spacer, .625 ID X .169

$9.49

$

In Stock, Qty 17

0

15

MTD 747-05576-0637

Deck Lift Rod

$27.99

$

In Stock, Qty 5

0

16

MTD 747-06009

Lift Link Rod

$34.99

$

Usually ships in 3-6 days

0

17

MTD 783-08073A-0637

Front Deck Mounting Bracket
(Superseded to 783-08073B-0637)

$11.99

$

Usually ships in 3-6 days

0
