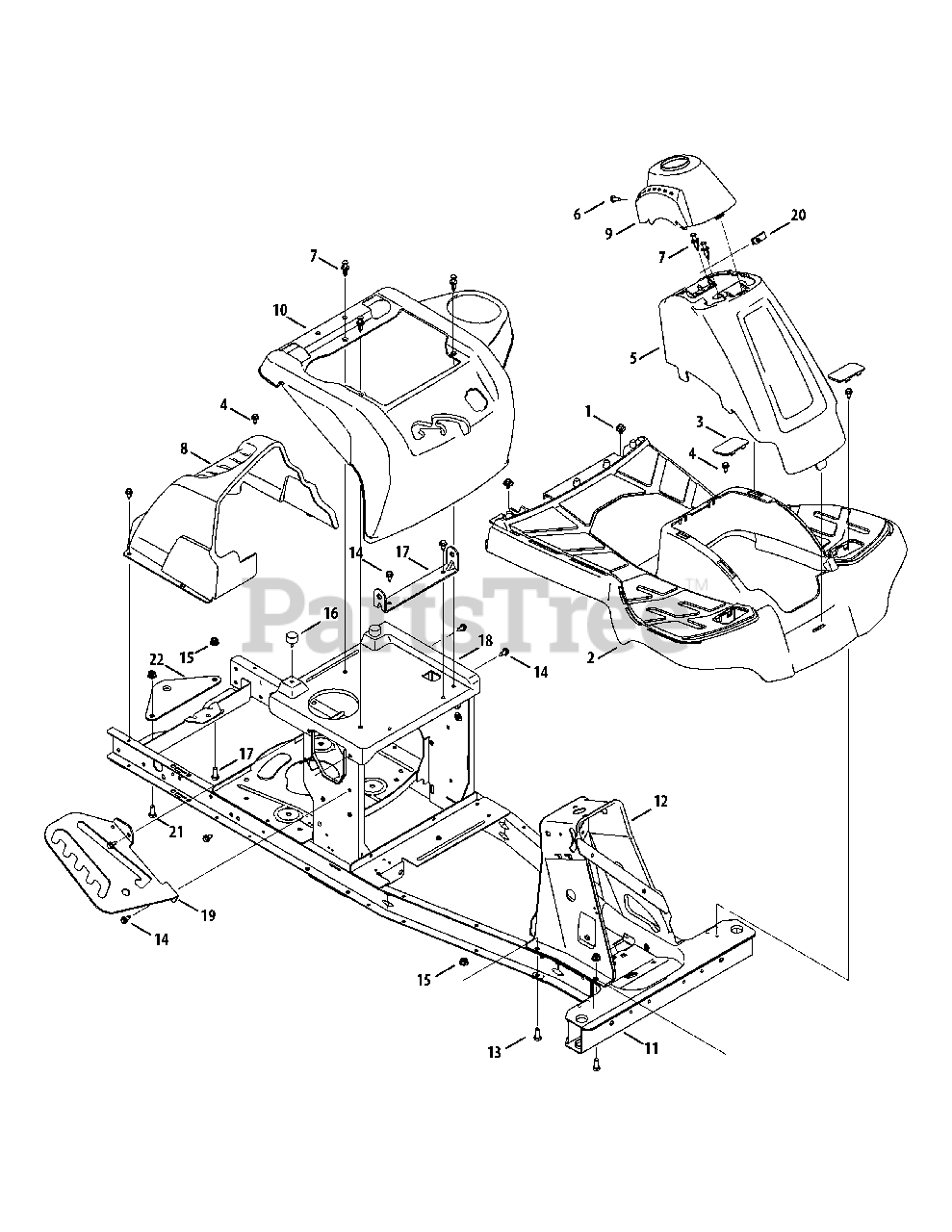

13A326JC700 - Yard Machines Lawn Tractor (2015) Frame & Fender Parts Diagram

Lawn Tractor

Frame & Fender Parts Diagram

  • Title

1

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

2

MTD 931-11074

Running Board

$122.99

$

Usually ships in 3-6 days

0

3

MTD 731-08753A

Running Board Plug
(Superseded to 731-08753B)

$4.99

$

In Stock, Qty 20+

0

4

MTD 738-04184A

Shoulder Screw, .368 X.113: 1/4-20

$7.49

$

In Stock, Qty 20+

0

5

MTD 631-05038

Column Cover (MTD Red)

$36.99

$

Usually ships in 3-6 days

0

6

MTD 710-0924

Machine Screw, 1/4-20, 0.750

$4.99

$

In Stock, Qty 20+

0

7

MTD 728-0199

Rivet, .3125

$4.99

$

In Stock, Qty 20+

0

8

MTD 731-09318

Drive Cover

$40.99

$

Usually ships in 3-6 days

0

9

MTD 731-09382

Steering Column Cap (MTD Red)

$15.99

$

In Stock, only 3 left!

0

10

MTD 931-09396

Fender (MTD Red)
(Superseded to 931-09396B)

$51.99

$

Usually ships in 3-6 days

0

11

MTD 683-05189-0637

Frame Assembly

$333.99

$

Usually ships in 3-6 days

0

12

MTD 683-05167-0637

Column Assembly

$58.99

$

Usually ships in 3-6 days

0

13

MTD 710-06194

Hex Washer Screw, 5/16-18 x .75

$4.49

$

Usually ships in 3-6 days

0

14

MTD 710-1652

Tap Screw, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-0429

Hex Locknut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

16

MTD 735-05006

Bumper, .62 Dia. x .50

$4.49

$

In Stock, Qty 20+

0

17

MTD 783-07168-0637

Seat Pivot Bracket
(Superseded to 783-13996-0637)

$6.99

$

Usually ships in 3-6 days

0

18

MTD 783-08115-0637

Seat Plate

$48.99

$

Usually ships in 3-6 days

0

19

MTD 783-08260-0637

De ck Lift Index Bracket

$31.99

$

In Stock, only 1 left!

0

20

MTD 712-04092

U-type Speed Nut, 1/4-20

$6.49

$

In Stock, only 2 left!

0

21

MTD 710-3008

Hex Head Screw, 5/16-18, .75

$4.49

$

In Stock, Qty 20+

0

22

MTD 783-07208-0637

Hitch Plate
(Superseded to 783-07208A-0637)

$8.99

$

Usually ships in 3-6 days

0
