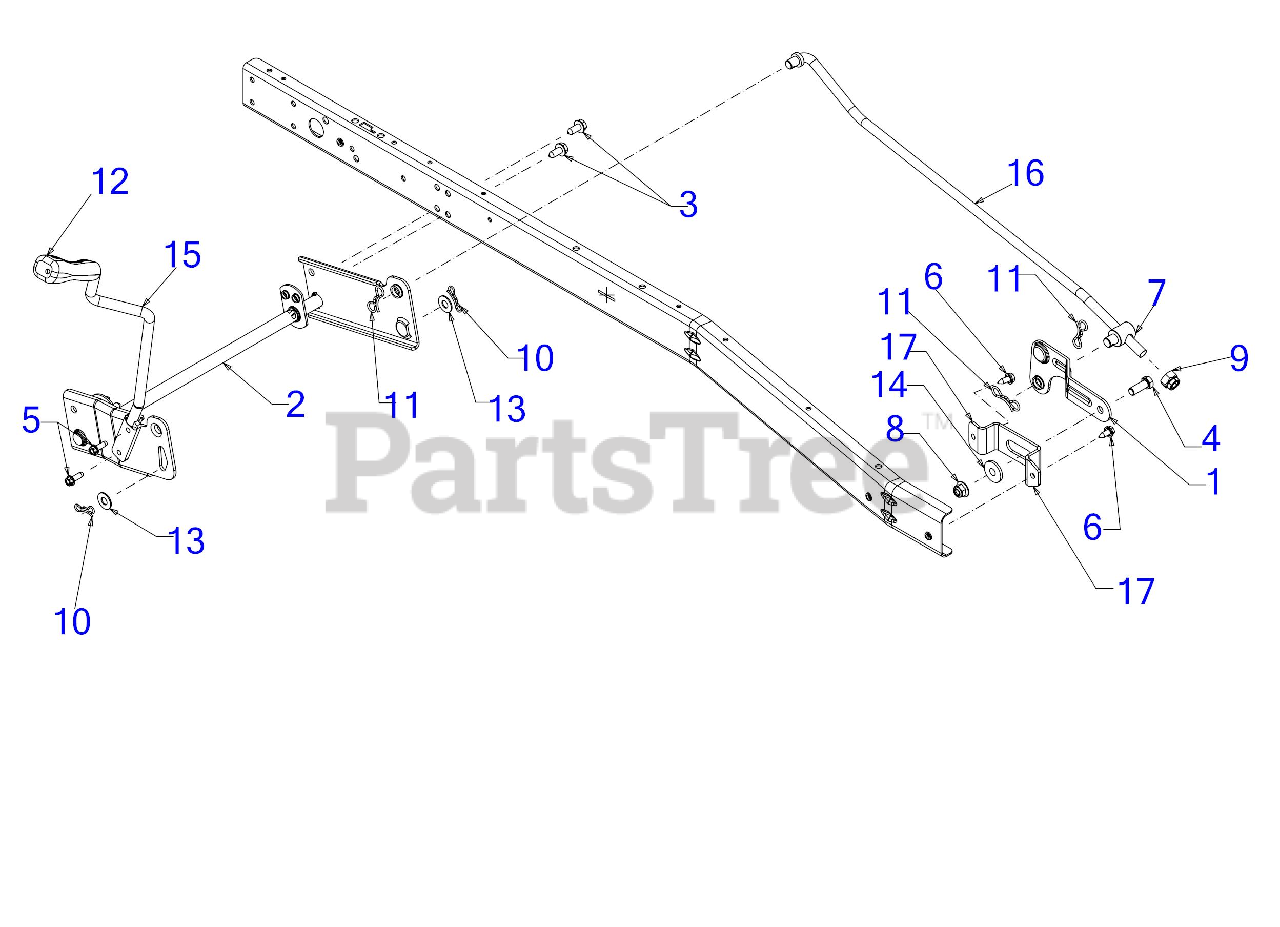

13A326JC700 - Yard Machines Lawn Tractor (2017) Deck Lift Parts Diagram

Lawn Tractor

Deck Lift Parts Diagram

  • Title

1

MTD 683-05011-0637

FRONT BRACKET ASSEMBLY

$20.99

$

Usually ships in 3-6 days

0

2

MTD 683-05018-0637

LIFT SHAFT ASSEMBLY

$44.99

$

Usually ships in 3-6 days

0

2

MTD 783-04536B

PEDAL SUPPORT BRACKET

Note: (Not Shown)

Variations

783-04536B-0606

MTD 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.99

$

Usually ships in 3-6 days

0

783-04536B-0637

MTD 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.99

$

In Stock, only 2 left!

0

783-04536B-0638

MTD 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.99

$

Usually ships in 3-6 days

0

783-04536B-0691

MTD 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

783-04536B-0709

MTD 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 14

0

5

MTD 710-0642

SCREW 1/4-20 x .750

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-05690C

FERRULE

$11.99

$

Usually ships in 3-6 days

0

8

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-04243

NUT

$4.49

$

In Stock, Qty 20+

0

10

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

11

MTD 714-04043

PIN:COTTER

$5.49

$

In Stock, Qty 20+

0

12

MTD 720-0311

HANDLE GRIP

$16.99

$

In Stock, only 2 left!

0

13

MTD 936-0300

FLAT WASHER
(Superseded to 736-0300)

$4.99

$

In Stock, Qty 20+

0

14

MTD 938-0347

SHOULDER SPACER

$10.99

$

Usually ships in 3-6 days

0

15

MTD 747-05576-0637

DECK LIFT ROD

$31.99

$

In Stock, only 3 left!

0

16

MTD 747-06009

DECK LINK ROD

$38.99

$

Usually ships in 3-6 days

0

17

MTD 783-08073B-0637

DECK HANGER BRACKET (LH)

$13.99

$

Usually ships in 3-6 days

0
