13A326JC700 - Yard Machines Lawn Tractor (2017) Fender Parts Diagram
Lawn Tractor

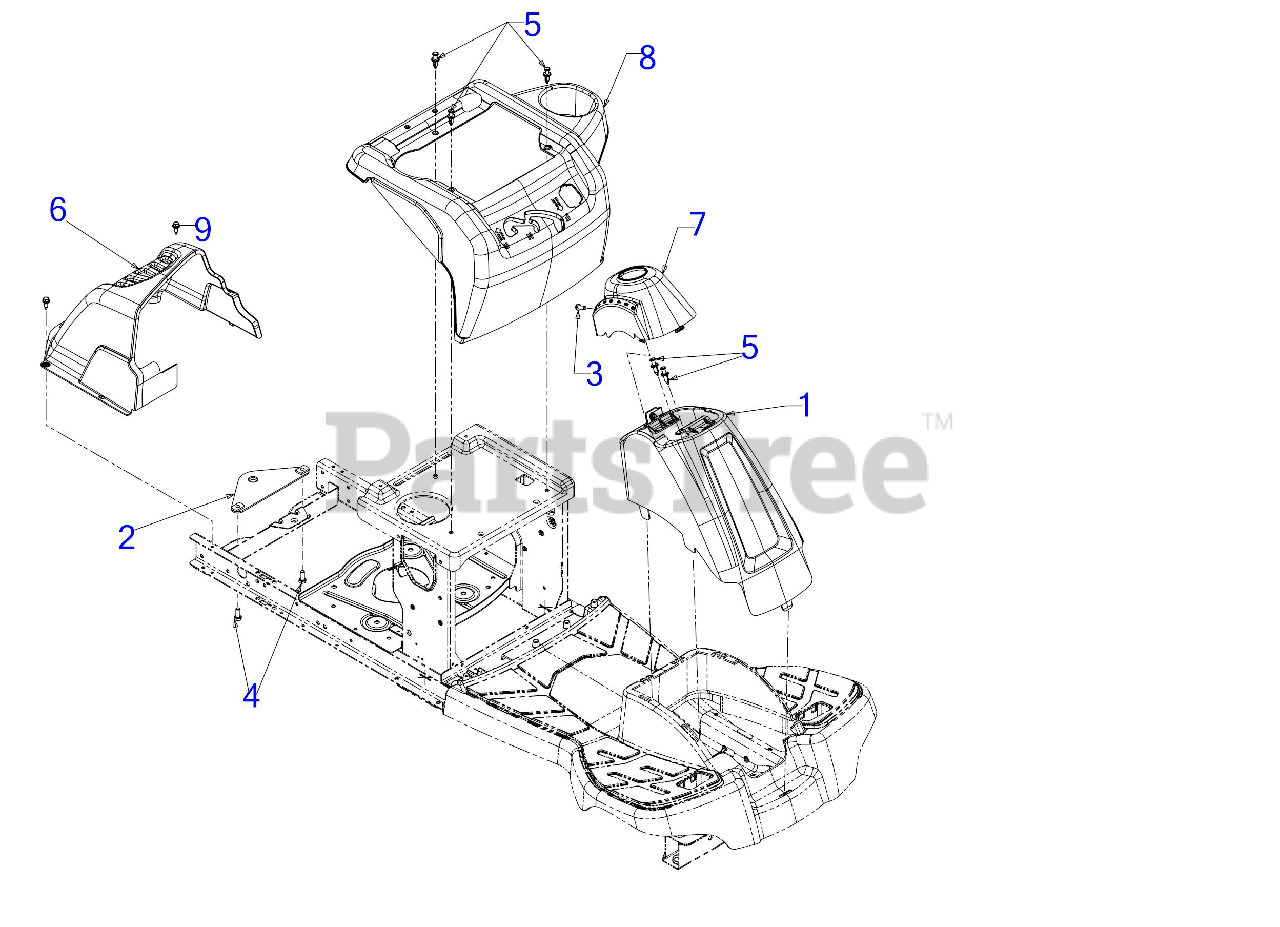

Fender Parts Diagram
MTD 631-05038
COLUMN COVER ASSEMBLY (MTD RED)
$36.99
$
Usually ships in 3-6 days
$6.49
$
In Stock, only 2 left!
Variations
MTD 683-05377-0637
PLATE ASM-HITCH - POWDER BLACK (0637)
$25.99
$
Usually ships in 3-6 days
$24.99
$
Usually ships in 3-6 days
MTD 710-0924
SCREW 1/4-20X.75
$4.99
$
In Stock, Qty 20+
MTD 710-3008
SCREW 5/16-18 x .75 GR5
$4.49
$
In Stock, Qty 20+
MTD 728-0199
PLASTIC RIVET
$4.99
$
In Stock, Qty 20+
MTD 731-09318
DRIVE COVER
$40.99
$
Usually ships in 3-6 days
MTD 731-09382
COLUMN STEERING CAP
$15.99
$
In Stock, only 3 left!
MTD 931-09396B
FENDER (MTD RED)
$51.99
$
Usually ships in 3-6 days
MTD 738-04184A
SHOULDER SCREW
$7.49
$
In Stock, Qty 20+
