13A4065-729 - Yard Machines Lawn Tractor (2004) (Home Depot) Drive Parts Diagram

Lawn Tractor

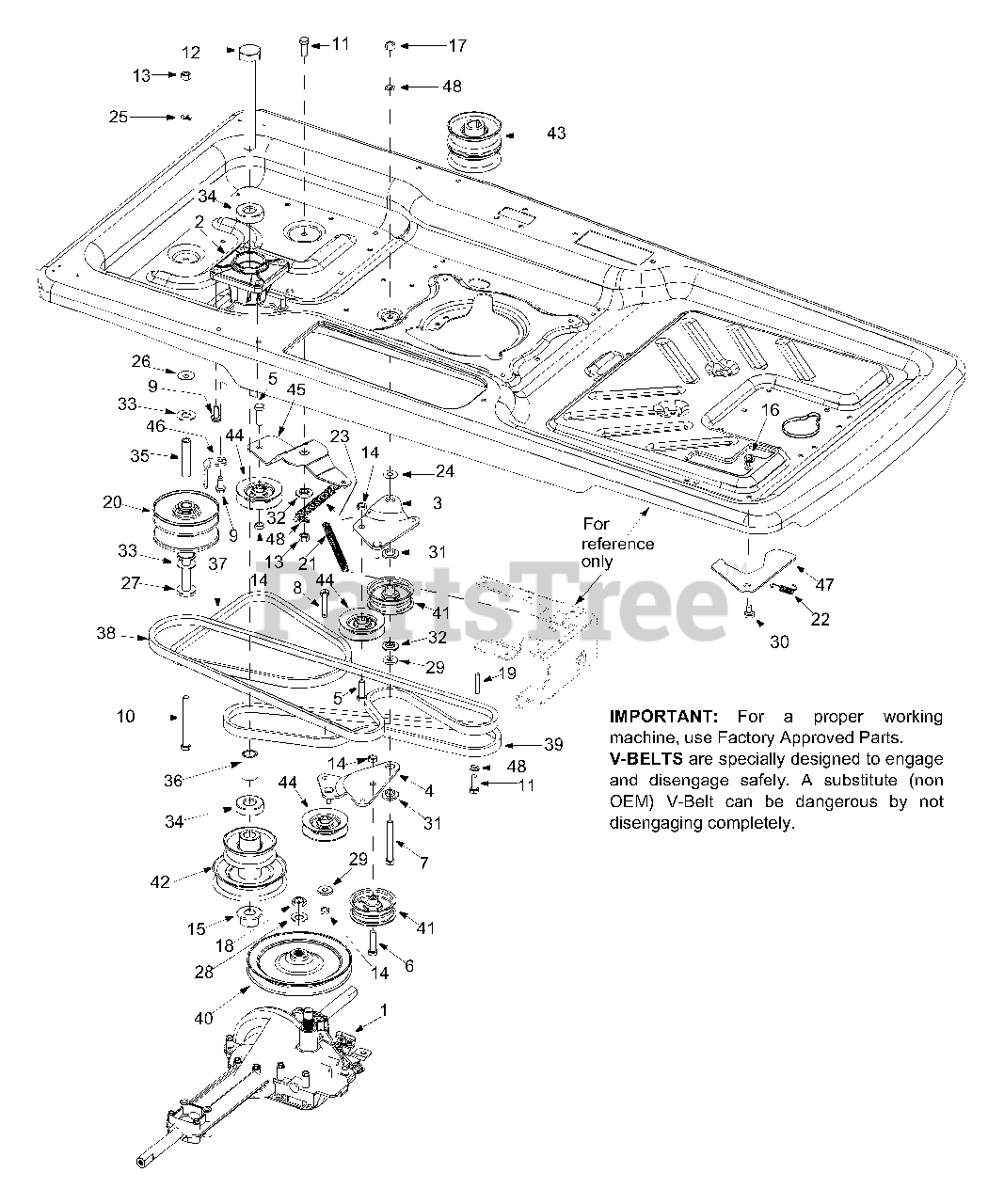

Drive Parts Diagram

  • Title

1

MTD 618-0564A

Transmission Assembly

Note: For full break-down of the transmission assembly, see "Transmission Assembly".

$

$

Not available

2

MTD 619-0011

Spindle Housing
(Superseded to 753-07015)

$60.99

$

In Stock, only 2 left!

0

3

MTD 683-0446

Idler Bracket Assembly

$

$

Not available

4

MTD 683-0447

Idler Bracket Assembly

$

$

Not available

5

MTD 710-0191

Hex Bolt 3/8-24 x 1.25"

$4.99

$

In Stock, Qty 7

0

6

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50"

$7.49

$

In Stock, Qty 11

0

7

MTD 710-0521

Hex Bolt 3/8-16 x 3.0"

$5.49

$

In Stock, Qty 6

0

8

MTD 710-0539

Hex Bolt 3/8-24 x 1.75"

$4.99

$

In Stock, Qty 6

0

9

MTD 710-0650

TT Screw 5/16-18 x 0.875"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0902

Hex Screw 3/8-24 x 3.75"

$8.49

$

Usually ships in 3-6 days

0

11

MTD 710-1039

Hex Screw 3/8-24 x 1.0"

$4.99

$

In Stock, Qty 15

0

12

MTD 710-1812A

Hex Screw M20 x 2.5:180

$

$

Not available

13

MTD 712-0241

Hex Nut 3/8-24

$4.99

$

In Stock, Qty 7

0

14

MTD 712-0296

Jam Lock Nut 3/8-24
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

15

MTD 712-0695

Hex Flange Nut M20 x 2.5

$

$

Not available

16

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 11

0

18

MTD 712-3035

Jam Nut 9/16-18

$7.49

$

Usually ships in 3-6 days

0

19

MTD 714-0133

Key

$5.49

$

In Stock, Qty 12

0

20

MTD 717-0884

Variable Speed Pulley Assembly

$232.99

$

Usually ships in 3-6 days

0

21

MTD 732-0308

Extension Spring
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

22

MTD 732-0418

Extension Spring

$11.99

$

In Stock, only 1 left!

0

23

MTD 732-0814

Extension Spring

$8.49

$

In Stock, Qty 9

0

24

MTD 736-0101

Flat Washer .406 x 1.0 x .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

25

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, only 3 left!

0

26

MTD 736-0219

Bell Washer .39 x 1.13 x .062
(Superseded to 936-0219)

$4.49

$

In Stock, only 1 left!

0

27

MTD 736-0247

Flat Washer 3/8 x 1.25"

$10.99

$

In Stock, Qty 20+

0

28

MTD 736-0427

Bell Washer .567 x 1.125 x .06
(Superseded to 936-0427)

$

$

Not available

29

MTD 736-3052

Flat Washer .406 x 1.0 x .105

$4.99

$

In Stock, Qty 20+

0

30

MTD 738-0155

Shoulder Screw
(Superseded to 938-0155)

$7.49

$

Usually ships in 3-6 days

0

31

MTD 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$10.99

$

In Stock, only 3 left!

0

32

MTD 738-0968

Shoulder Spacer
(Superseded to 938-0968)

$5.99

$

Usually ships in 3-6 days

0

33

MTD 741-0405

Thrust Bearing
(Superseded to 941-0405)

$

$

Not available

34

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

35

MTD 750-0705

Sleeve Spacer

$

$

Not available

36

MTD 750-0952

Spacer

$7.99

$

In Stock, only 2 left!

0

37

MTD 754-0453

Belt: V Type
(Superseded to 954-0453)

$36.99

$

In Stock, Qty 12

0

38

MTD 754-0493

Belt: V Type
(Superseded to 954-0493)

$52.99

$

In Stock, only 2 left!

0

39

MTD 754-0494

Belt: V Type
(Superseded to 954-0494)

$57.99

$

Usually ships in 3-6 days

0

40

MTD 756-0650

Transmission Pulley

$

$

Not available

41

MTD 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$28.99

$

In Stock, Qty 20+

0

42

MTD 756-1195

Jack Pulley: Double

$91.99

$

Usually ships in 3-6 days

0

43

MTD 756-1200

Engine Pulley: Double

$

$

Not available

44

MTD 756-1207

Idler Pulley
(Superseded to 756-04241)

$37.99

$

Usually ships in 3-6 days

0

45

MTD 783-0528

Idler Bracket: Variable Speed

$

$

Not available

46

MTD 783-1292

Cable Bracket

$

$

Not available

47

MTD 783-1341

Bracket: Lock: Pedal

$

$

Not available

48

MTD 736-0217

Lock Washer 3/8

$4.49

$

In Stock, only 3 left!

0
