13A5450F019 - MTD Lawn Tractor (1998) (Agway) Fender/Dash Assembly/Battery/Fuel Tank/Seat Parts Diagram

Lawn Tractor

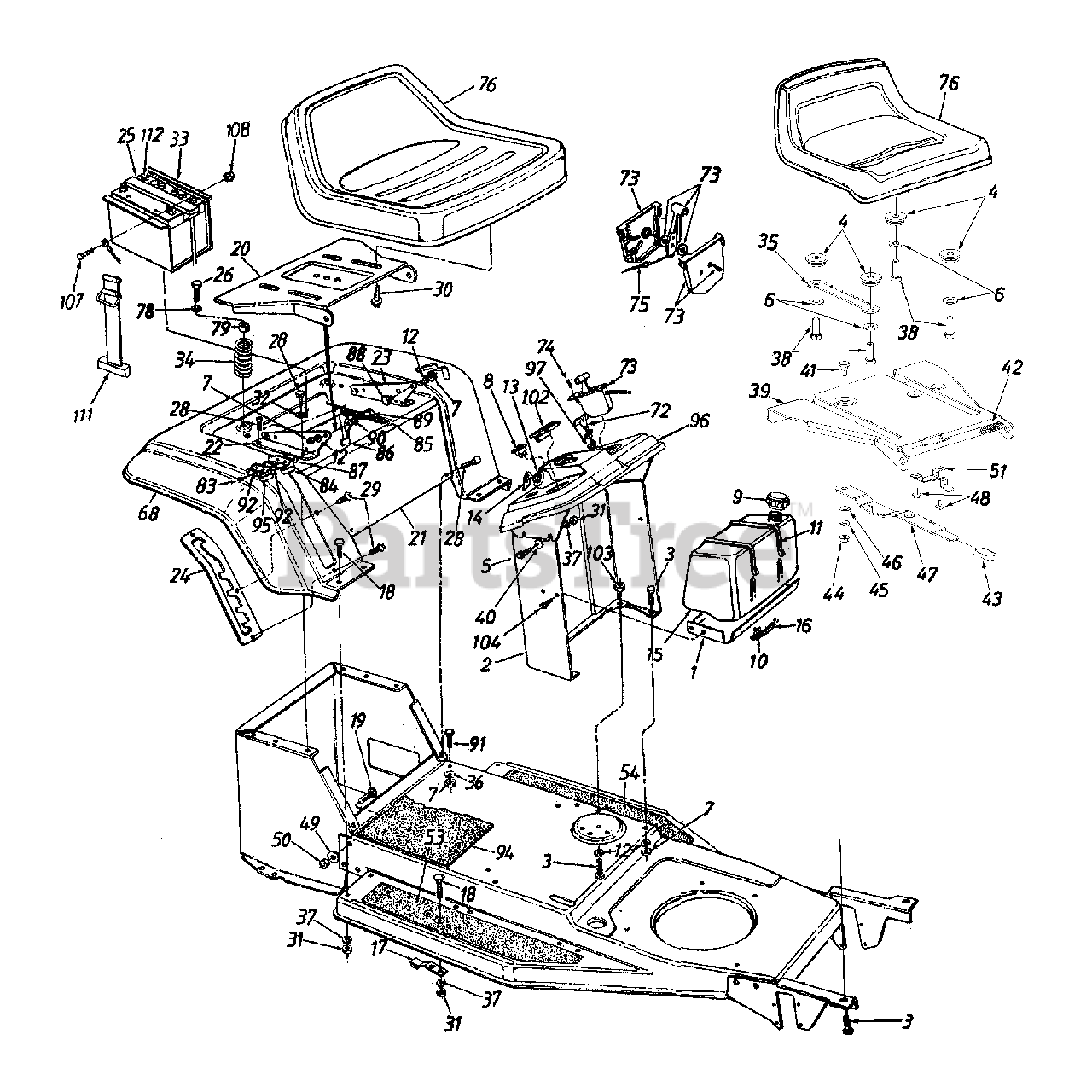

Fender/Dash Assembly/Battery/Fuel Tank/Seat Parts Diagram

  • Title

1

MTD 17932

Gas Tank Support Brkt.
(Superseded to 17932-0637)

Variations

MTD 17932-0637

BRACKET-TANK SUPPO - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 17933A

Pedestal

Variations

MTD 17933A-0648

No Longer Available PEDESTAL - TECH GRAY (0648)

$

$

Not available

MTD 17933A-0483

PEDESTAL - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17933A-0498

PEDESTAL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17933A-0637

PEDESTAL - POWDER BLACK (0637)

$

$

Not available

MTD 17933A-0638

No Longer Available PEDESTAL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17933A-0662

PEDESTAL - OYSTER GRAY (0662)

$

$

Not available

$

$

3

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

Note: Obtain locally for faster service.

$3.99

$

In Stock, Qty 20+

0

4

MTD 731-1924

Spacer
(Superseded to 753-0842)

Note: Optional; Code N

$

$

Not available

5

MTD 710-0751

Hex Bolt 1/4 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0300

Fl-Wash. .406" I.D. x .875" O.D.

Note: Optional

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

Note: Obtain locally for faster service.

$4.49

$

In Stock, Qty 20+

0

8

MTD 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

$16.99

$

In Stock, Qty 5

0

9

MTD 751-0603

Gas Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

10

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

12

MTD 736-0222

Lock Washer 1/4" I.D.

Note: Obtain locally for faster service.

$5.49

$

In Stock, only 3 left!

0

13

MTD 725-0267

Ignition Switch: 5 Pin
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

14

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

15

MTD 751-0553

Fuel Tank
(Superseded to 751-0555B)

$89.99

$

Usually ships in 3-6 days

0

16

MTD 751-0535-15

Gas Line 15" Long
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

17

MTD 761-0194

Blade Brake Ass'y.
(Superseded to 961-0194A)

$

$

Not available

18

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8"

$

$

Not available

20

MTD 783-0039A

Seat Pivot Brkt.

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

21

MTD 783-0354

Rear Fender

Variations

MTD 783-0354-0483

No Longer Available FENDER-400 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0354-0638

No Longer Available FENDER-400 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0354-0648

Rear Fender - TECH GRAY (0648)

$

$

Not available

MTD 783-0354-0662

Rear Fender - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0354-0686

No Longer Available FENDER-400 - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0354-0687

No Longer Available FENDER-400 - PINE GREEN (0687)

$

$

Not available

$

$

22

MTD 17704

Seat Hinge Support Brkt.-R.H.

Variations

MTD 17704-0637

No Longer Available BRACKET-SE - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 17703

Seat Hinge Support Brkt.-L.H.

Variations

MTD 17703-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 17553

Deck Lift Index Brkt.

$

$

Not available

25

MTD 725-1705C

Battery, Dry
(Superseded to 925-1707D)

Note: Code N

$

$

Not available

MTD 725-1704C

Battery, Wet

$

$

Currently unavailable

26

MTD 710-0817

Hex Self-Tap Screw 5/6-18 1.25" Lg.

$6.49

$

In Stock, Qty 20+

0

?27

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-1017

Torx Mach. AB-Tap Scr.

$7.99

$

In Stock, Qty 20+

0

30

MTD 710-0870

Hex Self-Tap Scr. 3/8-16 x.62"

$5.99

$

In Stock, only 2 left!

0

31

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

32

MTD 736-0607

External Lock Washer 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

33

MTD 783-0349

Battery Tray

Variations

MTD 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

MTD 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 732-0588

Compression Spring

$15.99

$

In Stock, only 2 left!

0

35

MTD 783-0610

Seat Selector

$

$

Not available

36

MTD 736-0242

Bell-Washer 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0329

Lock Washer 1/4" I.D.
(Superseded to 936-0329)

Note: Obtain locally for faster service.

$4.49

$

In Stock, Qty 13

0

38

MTD 710-0514

Hex Bolt 3/8-16 x 1" Lg.

Note: Optional

$3.99

$

In Stock, Qty 20+

0

39

MTD 783-0607

Seat Pivot Bracket

Note: Optional; Code N

Variations

MTD 783-0607-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 736-0270

Bell-Washer .265" I.D. x .75"

$3.99

$

In Stock, Qty 13

0

41

MTD 738-0137A

Shld. Bolt .34" x 1/4-20 Thd.42

$9.49

$

In Stock, Qty 19

0

42

MTD 732-0499

Compression Spring

Note: Optional

$8.99

$

In Stock, only 3 left!

0

43

MTD 720-0309

Seat Adjustable Grip
(Superseded to 720-0309A)

$8.99

$

Usually ships in 3-6 days

0

44

MTD 712-3027

Hex Flanged L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

Note: Optional

$3.99

$

In Stock, Qty 20+

0

45

MTD 736-0175

Spring Wash. .265" I.D.
(Superseded to 936-0175)

Note: Optional

$3.99

$

In Stock, only 3 left!

0

46

MTD 736-0204

Fl-Wash. .344" I.D.

Note: Optional

$3.99

$

In Stock, Qty 20+

0

47

MTD 783-0609

Seat Lever

Note: Optional; Code N

$

$

Not available

48

MTD 710-1268

Hex Wash. Hd. B-Tap Scr.

Note: Optional

$3.99

$

In Stock, only 2 left!

0

49

MTD 736-0217

Lock Washer 3/8" I.D.H.D.

$3.99

$

In Stock, Qty 13

0

50

MTD 712-0241

Hex Lock Nut 3/8-24 THd.

$4.49

$

In Stock, Qty 20+

0

51

MTD 783-0611

Seat Stop

Note: Optional; Code N

$9.99

$

In Stock, only 4 left!

0

53

MTD 725-0308C

Foot Pad-R.H. (Abrasive)

Note: Optional

$

$

Currently unavailable

MTD 735-0252

Foot Pad-R.H. (Rubber)

Note: Optional

$

$

Not available

54

MTD 725-0309C

Foot Pad-L.H. (Abrasive)

Note: Optional

$

$

Currently unavailable

MTD 735-0253

Foot Pad- L.H.(Abrasive)

Note: Optional

$

$

Not available

68

MTD 731-0511-81

Trim Strip 81" Lg.

$97.99

$

Usually ships in 3-6 days

0

72

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

$24.99

$

In Stock, Qty 12

0

73

MTD 831-0823A

Throttle Control Box

$30.99

$

In Stock, Qty 20+

0

74

MTD 710-0779A

Truss AB-Tap Scr. #10 x .5"

$4.49

$

In Stock, Qty 12

0

75

MTD 746-0776

Throttle Wire (B&S)
(Superseded to 946-0638)

$9.49

$

In Stock, Qty 11

0

MTD 746-0638

Throttle Wire (Tec.)
(Superseded to 946-0638)

$9.49

$

In Stock, Qty 11

0

76

MTD 757-0363A

Seat Assembly (Low Back)
(Superseded to 957-0378)

Note: Code N

$

$

Not available

MTD 757-0360A

Seat Assembly (Medium Back)
(Superseded to 957-0360A)

Note: Code N

$

$

Not available

MTD 757-0348A

Seat Assembly (High Back)

Note: Code N

$

$

Not available

MTD 757-0372

Seat Assembly (High Back, Yel.)
(Superseded to 957-0350)

$547.99

$

Usually ships in 3-6 days

0

MTD 757-0370A

Seat Assembly (High Back, Gray)
(Superseded to 957-0370A)

$

$

Not available

78

MTD 736-0159

Flat Washer .344" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

79

MTD 722-0160

Bushing

$

$

Not available

83

MTD 710-0227

Hex Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

84

MTD 725-1439

Safety Switch (Inner)

$7.99

$

In Stock, Qty 8

0

85

MTD 732-0581B

Ext. Spring 5.31" Lg.
(Superseded to 932-0581B)

$13.99

$

Usually ships in 3-6 days

0

86

MTD 17239A

Seat Lift Brkt.
(Superseded to 17239C)

$

$

Not available

87

MTD 726-0278

Insulator Boss Plate

$6.49

$

In Stock, Qty 10

0

88

MTD 738-0155

Shld. Bolt .437" Dia. x .162" Lg.
(Superseded to 938-0155)

$6.49

$

Usually ships in 3-6 days

0

89

MTD 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$3.99

$

In Stock, Qty 11

0

90

MTD 736-0141

Spring Washer .445" I.D. x .75"
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

91

MTD 710-0604

Hex Washer Hd. Scr.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 726-0279

Insulator Plate

$3.49

$

In Stock, Qty 8

0

94

MTD 723-0423

Center Foot Pad (Abrasive)

Note: Optional

$

$

Not available

MTD 735-0254

Center Foot Pad (Rubber)

Note: Optional; Code N

$

$

Not available

95

MTD 725-1303

Safety Switch (Outer)
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

96

MTD 731-1228

Dash Panel (w/Amp & Light switch)

$

$

Not available

MTD 731-1502

Dash Panel (w/o Amp & Light switch)
(Superseded to 931-1502)

$

$

Not available

97

MTD 17782

Retainer Clip

$4.99

$

In Stock, only 3 left!

0

102

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

$28.99

$

In Stock, only 2 left!

0

103

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.49

$

In Stock, Qty 6

0

104

MTD 710-0599

Hex Washer Hd. Tap Scr.

$3.99

$

In Stock, Qty 20+

0

?106

MTD 736-0222

Ext. Lock Washer 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

107

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

108

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

111

MTD 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

112

MTD 725-0689

Battery Cap

$

$

Currently unavailable
