13A6698H033 - MTD Lawn Tractor (1998) (Ace Hardware) Electrical/Switches (Tecumseh) Parts Diagram

Lawn Tractor

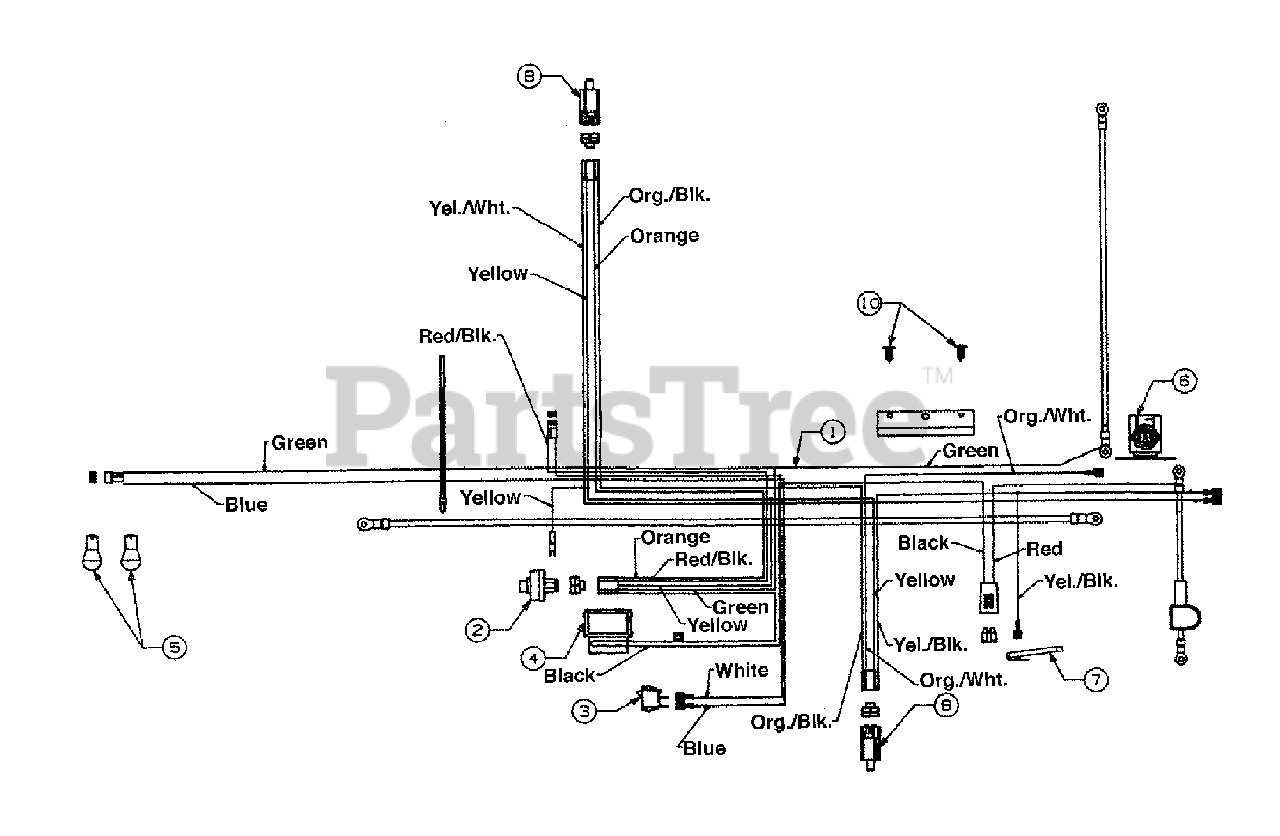

Electrical/Switches (Tecumseh) Parts Diagram

  • Title
1

MTD Part# 629-0302B

Wire Harness w/Light Switch & Amp
(Superseded to 929-0302E)

Note: Code N

Usually ships in 5 to 10 days

$

$149.71

0

MTD Part# 629-0301B

Wire Harness w/o Light Switch & Amp
(Superseded to 629-0301E)

Note: Code N

Usually ships same day

Not available

$

$

2

MTD Part# 725-0267

Ignition Switch
(Superseded to 925-0267B)
Usually ships in 1 day

$

$26.44

0

3

MTD Part# 725-0634

Light Switch
(Superseded to 925-0634)

Note: (Optional)

Usually ships in 1 day

$

$12.77

0

4

MTD Part# 725-0925

Ammeter
(Superseded to 925-0925)

Note: (Optional)

Usually ships in 1 day

$

$21.86

0

5

MTD Part# 725-0963

Bulb (Headlight)
(Superseded to 925-0963)
Usually ships in 1 day

$

$5.34

0

6

MTD Part# 725-1426

Solenoid
(Superseded to 925-1426A)
Usually ships in 1 day

$

$24.17

0

7

MTD Part# 725-1643

Safety Switch (Reverse)
Usually ships in 1 day

$

$7.19

0

8

MTD Part# 725-1657A

Safety Switch
(Superseded to 925-1657A)
Usually ships in 1 day

$

$17.92

0

10
Usually ships in 1 day

$

$2.95
