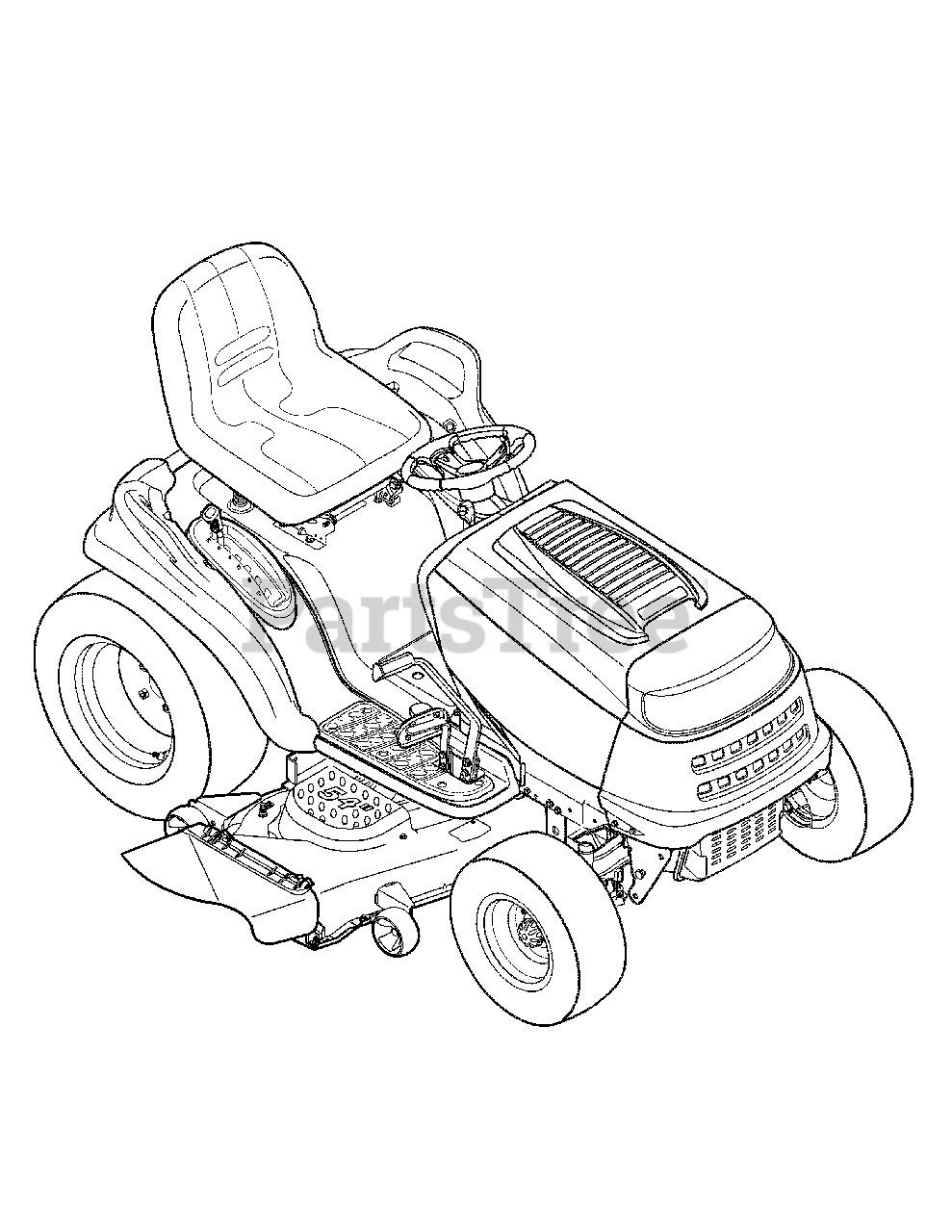

13AA625P004 - MTD Gold Lawn Tractor (2008) (Ace Hardware) .Quick Reference Parts Diagram

Gold Lawn Tractor

.Quick Reference Parts Diagram

  • Title

MTD BS-492932S

OIL FILTER

$12.99

$

In Stock, Qty 20+

0

MTD BS-499486S

AIR FILTER

$15.99

$

In Stock, Qty 20+

0

MTD BS-273638S

PRE-CLEANER ELEMENT

$6.49

$

In Stock, Qty 20+

0

MTD 759-3336

SPARK PLUG
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

MTD BS-691035

FUEL FILTER
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

MTD 942-04053C

BLADES

$30.99

$

In Stock, Qty 20+

0

MTD 712-0417A

BLADE NUT

$7.49

$

In Stock, Qty 20+

0

NA

UPPER DRIVE BELT

$

$

Not available

MTD 954-04165

LOWER DRIVE BELT

$56.99

$

In Stock, Qty 12

0

MTD 954-04164

DECK SPINDLE BELT

$85.99

$

In Stock, only 4 left!

0

NA

ENGINE TO DECK BELT

$

$

Not available

MTD 918-04125A

DECK SPINDLES
(Superseded to 918-04125C)

$141.99

$

In Stock, Qty 20+

0

MTD 925-1745

IGNITION KEYS
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

MTD 725-04439

SOLENOID
(Superseded to 725-04439B)

$42.99

$

In Stock, Qty 20+

0

MTD 951-3111

FUEL CAP
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 7

0

MTD 734-04155

DECK WHEELS

Note: Front

$21.99

$

In Stock, Qty 20+

0

MTD 734-0973

DECK WHEELS
(Superseded to 734-06265)

Note: Rear

$13.99

$

Usually ships in 3-6 days

0

MTD 923-0448A

BALL JOINTS

$25.99

$

In Stock, Qty 20+

0

MTD 741-0516B

WHEEL BUSHINGS

$6.49

$

In Stock, Qty 20+

0

MTD 741-0990B

WHEEL BUSHINGS

Note: in board

$10.99

$

In Stock, Qty 20+

0

MTD 925-04039

SAFETY SWITCH-DECK

$25.99

$

In Stock, Qty 20+

0

MTD 925-04039

SAFETY SWITCH-BRAKE/CLUTCH

$25.99

$

In Stock, Qty 20+

0

MTD 737-04003C

WATER NOZZLE ADAPTER
(Superseded to 737-04003D)

$24.99

$

In Stock, Qty 10

0

MTD OEM-190-032

42-inch Two-stage Snow Thrower

Note: Attachment

$

$

Not available

MTD OEM-190-193

50-inch Deck Mulch Kit

Note: Attachment

$83.99

$

In Stock, only 2 left!

0

MTD OEM-190-192

Triple Bagger Grass Collector (for 50-inch Decks)
(Superseded to 19A40002OEM)

Note: Attachment

$

$

Not available

MTD 19A-218-000

Rear Weight Kit w/ 1 Suitcase Weight

Note: Attachment

$

$

Currently unavailable

MTD OEM-19A-128

Suitcase Weight
(Superseded to 490-900-M059)

Note: Attachment

$92.99

$

Usually ships in 3-6 days

0

MTD OEM-190-607

Deluxe Tractor Sunshade

Note: Attachment

$

$

Not available

MTD OEM-190-751

Snow Cab

Note: Attachment

$

$

Not available

MTD OEM-190-964

Tire Chains, 23" x 10.5/9.5"
(Superseded to 490-241-0025)

Note: Attachment

$100.99

$

Usually ships in 3-6 days

0

MTD OEM-190-833

46-inch Front Dozer Blade
(Superseded to 19A30017OEM)

Note: Attachment

$511.99

$

Usually ships in 3-6 days

0
