13AA625P004 - MTD Gold Lawn Tractor (2009) Fender & Seat Assembly Parts Diagram

Gold Lawn Tractor

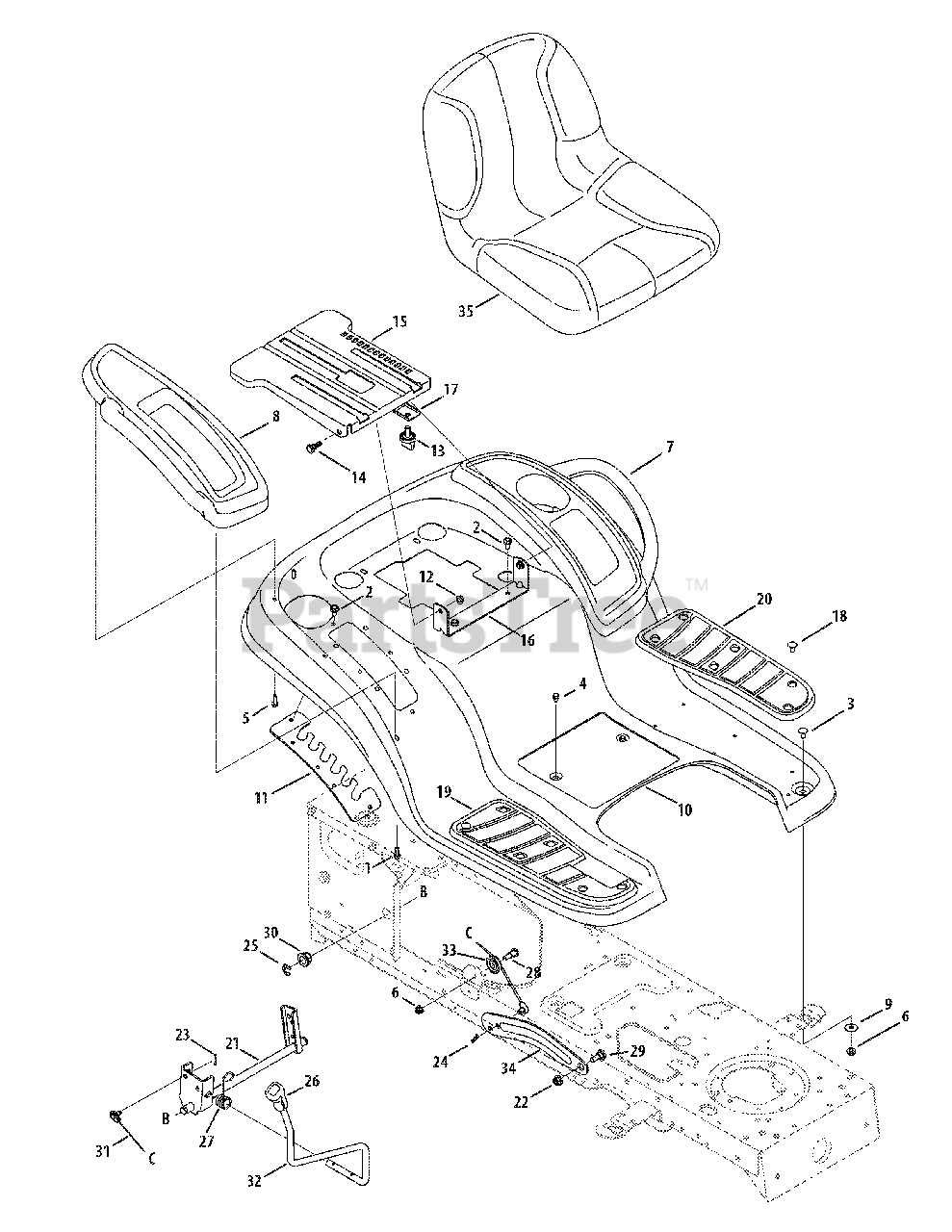

Fender & Seat Assembly Parts Diagram

  • Title

1

MTD 710-04187

Hex Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

2

MTD 710-04484

Screw, 5/16-18 x.750

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-0451

Carriage Bolt, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0599

Screw, 1/4-20 x.500

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$5.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 731-05837

LH Fender Cover

$

$

Not available

8

MTD 731-06754

RH Fender Cover

$44.99

$

Usually ships in 3-6 days

0

9

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$3.99

$

In Stock, Qty 15

0

10

MTD 783-06250-0691

Fender R-Style

$

$

Not available

11

MTD 783-0677B-0637

Lift Adjustment Bracket

$20.99

$

In Stock, only 1 left!

0

12

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.49

$

In Stock, Qty 20+

0

13

MTD 720-04061

Knob, 3/8-16 x .875

$4.99

$

In Stock, Qty 20+

0

14

MTD 938-0296

Shoulder Screw,.437 x.286
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 13

0

15

MTD 783-06049-0691

Seat Mount Bracket
(Superseded to 783-06049-0637)

$63.99

$

Usually ships in 3-6 days

0

16

MTD 783-06088-0691

Seat Pivot Bracket
(Superseded to 783-06088A-0691)

$20.99

$

In Stock, only 1 left!

0

17

MTD 783-06266-0637

Seat Knob Adjust Bracket

$8.49

$

Usually ships in 3-6 days

0

18

MTD 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 20+

0

19

MTD 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

20

MTD 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

21

MTD 683-04223-0637

Lift Assembly Shaft

$47.99

$

Usually ships in 3-6 days

0

22

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

24

MTD 914-0111

Cotter Pin
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

25

MTD 716-0106A

E-Ring

$4.99

$

In Stock, Qty 15

0

26

MTD 720-0311

Handle Grip

$14.99

$

In Stock, Qty 7

0

27

MTD 732-0874

Torsion Spring

$4.49

$

In Stock, Qty 10

0

28

MTD 738-0138A

Shoulder Screw, 3/8-16 .496 x 2.50

$6.49

$

In Stock, Qty 20+

0

29

MTD 938-0380

Shoulder Screw, 3/8-16 .500 X .270
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

30

MTD 941-0225

Hex Flange Bearing

$6.99

$

In Stock, Qty 20+

0

31

MTD 746-0968

Lift Cable, 16.16

$18.99

$

In Stock, Qty 20+

0

32

MTD 747-04447

Lift Handle

$41.99

$

In Stock, only 3 left!

0

33

MTD 756-1154

Roller Pulley

$7.49

$

In Stock, Qty 18

0

34

MTD 783-04963A-0637

Arm Lift

$24.99

$

Usually ships in 3-6 days

0

35

MTD 757-04086

High Back Seat, Gray
(Superseded to 757-05232)

$270.99

$

Usually ships in 3-6 days

0
