13AB652F729 - Yard Machines Lawn Tractor (2004) (Home Depot) Frame, Controls, Wheels Rear Parts Diagram

Lawn Tractor

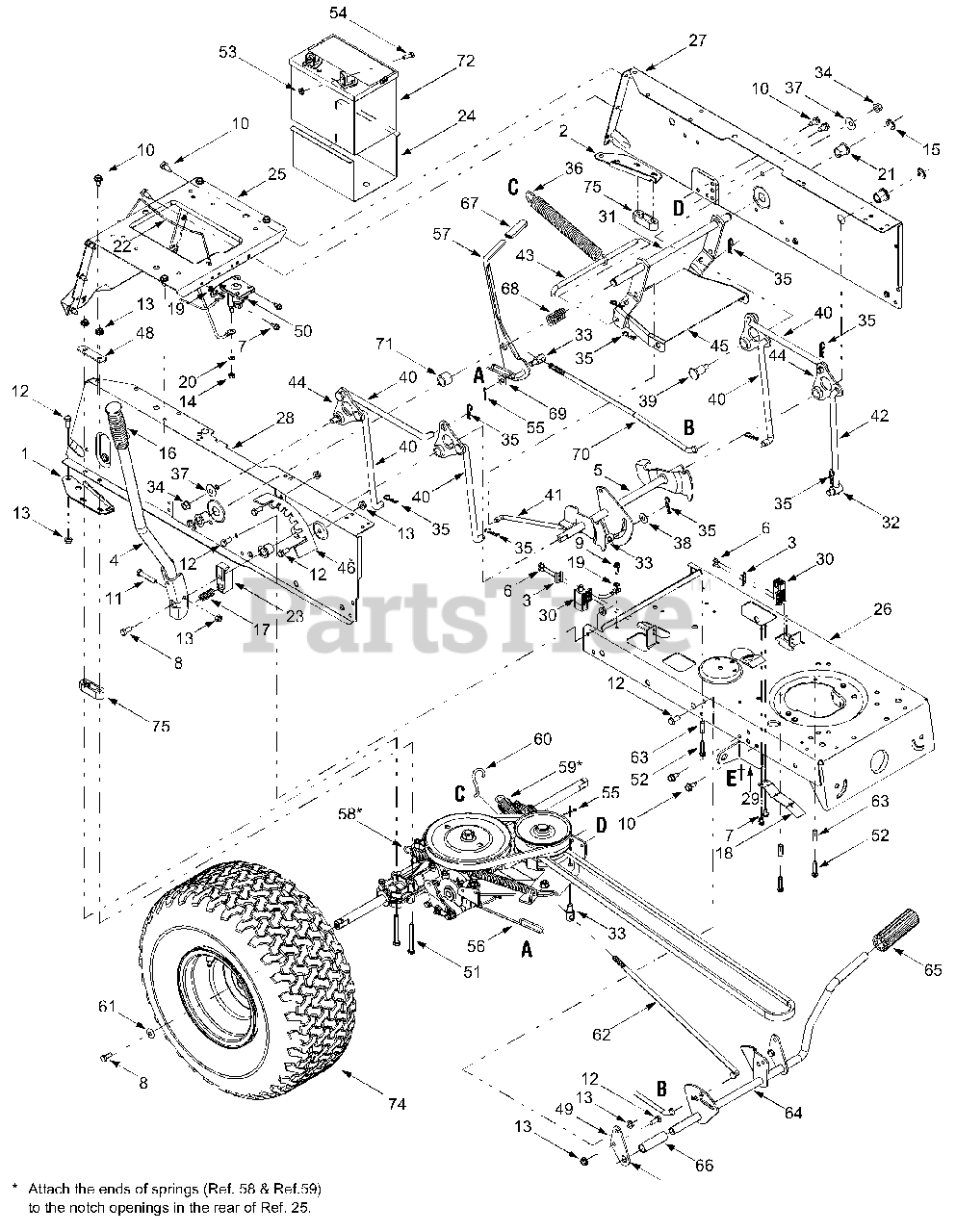

Frame, Controls, Wheels Rear Parts Diagram

  • Title

1

MTD 17668A

RH Axle Support Bracket
(Superseded to 17668A-0637)

Variations

MTD 17668A-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 17669A

LH Axle Support Bracket
(Superseded to 17669A-0637)

Variations

MTD 17669A-0637

Axle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

4

MTD 683-04025

Lift Handle Assembly

Variations

MTD 683-04025-0637

Lift Handle Assembly, Black - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

MTD 683-04025-0638

HANDLE ASM-LIFT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-04025-0650

HANDLE ASM-LIFT - RED METALLIC (0650)

$

$

Not available

$60.99

$

Usually ships in 3-6 days

0

5

MTD 683-04049

Lift Shaft Assembly
(Superseded to 683-04049A-0637)

Variations

MTD 683-04049-0637

Lift Shaft Assembly, Black - POWDER BLACK (0637)

$95.99

$

Usually ships in 3-6 days

0

$95.99

$

Usually ships in 3-6 days

0

6

MTD 710-0224

Self-tapping Screw, #10-16 x .5
(Superseded to 910-0224)

$3.49

$

In Stock, only 1 left!

0

7

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0627

Hex Cap Screw, 5/16-24 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

12

MTD 710-3008

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-0429

Hex Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

MTD 716-0106

E-Ring, .625 Dia Shaft

$3.99

$

In Stock, only 3 left!

0

16

MTD 720-0233

Handle Grip
(Superseded to 920-0233)

$

$

Not available

17

MTD 732-0369

Compression Spring, .55 x 1.37
(Superseded to 932-0369)

$9.49

$

In Stock, only 1 left!

0

18

MTD 732-0750A

Switch Actuator Spring
(Superseded to 932-0750A)

$20.99

$

Usually ships in 3-6 days

0

19

MTD 736-0222

External Lock Washer, 1/4

$5.49

$

In Stock, only 3 left!

0

20

MTD 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

21

MTD 741-0487A

Flange Bearing, .632 ID
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

22

MTD 747-04031

Battery Hold-down Rod

$10.99

$

Usually ships in 3-6 days

0

23

MTD 748-04011A

Lift Shaft Connector
(Superseded to 948-04011A)

$23.99

$

In Stock, only 3 left!

0

24

MTD 783-0345

Battery Tray
(Superseded to 783-0345-0637)

Variations

MTD 783-0345-0637

Battery Tray - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

25

MTD 783-0355D

Hitch Plate

Variations

MTD 783-0355D-0483

PLATE-HITCH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0355D-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0355D-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0355D-0648

PLATE-HITCH - TECH GRAY (0648)

$

$

Not available

MTD 783-0355D-0650

PLATE-HITCH - RED METALLIC (0650)

$

$

Not available

MTD 783-0355D-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

26

MTD 783-04011A

Lower Frame

Variations

MTD 783-04011A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04011A-0637

FRAME-LOWER - POWDER BLACK (0637)

$

$

Not available

MTD 783-04011A-0650

No Longer Available FRAME-LOWE - RED METALLIC (0650)

$

$

Not available

MTD 783-04011A-0665

No Longer Available FRAME-LOWE - YARDMAN GREEN (0665)

$

$

Not available

$

$

27

MTD 783-04031

LH Upper Frame Side Panel
(Superseded to 783-04031A)

Variations

MTD 783-04031-0637

PANEL-SIDE LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-04031-0638

No Longer Available USE 783-04031A-0638 PANEL-SID - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04031-0650

PANEL-SIDE LH - RED METALLIC (0650)

$

$

Not available

MTD 783-04031-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 783-04032

RH Upper Frame Side Panel

Variations

MTD 783-04032-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-04032-0637

PANEL-SIDE RH - POWDER BLACK (0637)

$

$

Not available

MTD 783-04032-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04032-0650

PANEL-SIDE RH - RED METALLIC (0650)

$

$

Not available

MTD 783-04032-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 783-04213

Deck Anti-sway Bracket
(Superseded to 783-04213-0637)

Variations

MTD 783-04213-0637

BRACKET-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 725-04039

Screw-mount Interlock Switch
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

31

MTD 683-04048

Stabilizer Shaft Assembly
(Superseded to 683-04048A-0637)

Variations

MTD 683-04048-0637

Stabilizer Shaft Assembly, Black - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 711-04036

Ferrule, 1/2-20 x .50
(Superseded to 911-04036)

$10.99

$

In Stock, only 1 left!

0

33

MTD 711-04075A

Ferrule, 3/8-24 x .375
(Superseded to 911-04075A)

$10.99

$

In Stock, only 4 left!

0

34

MTD 712-0130

Hex Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

MTD 714-04023

Internal Cotter Pin, .080 x 1.56

$3.99

$

In Stock, Qty 20+

0

36

MTD 732-04050A

Extension Spring, 1.07 x 9.52
(Superseded to 732-04050D)

$21.99

$

In Stock, only 1 left!

0

37

MTD 736-0219

Bell Washer, .389 x 1.12 x .030
(Superseded to 936-0219)

$3.99

$

In Stock, only 1 left!

0

38

MTD 736-0267

Flat Washer, .385 x .87 x .060

$4.49

$

Usually ships in 3-6 days

0

39

MTD 738-0322

Shoulder Bolt, .625 x .217
(Superseded to 738-0322A)

$6.49

$

In Stock, Qty 5

0

40

MTD 747-04018A

Deck Hanger Link
(Superseded to 947-04018A)

$

$

Not available

41

MTD 747-04040A

Deck Disengagement Rod

$14.99

$

Usually ships in 3-6 days

0

42

MTD 747-04069A

Deck Hanger Link

$14.99

$

Usually ships in 3-6 days

0

43

MTD 747-04157

Rear Stabilizer Rod

$

$

Not available

44

MTD 748-04010

Lift Link
(Superseded to 948-04010)

$

$

Not available

45

MTD 783-04294

Deck Stabilizer Bracket
(Superseded to 783-04294A-0637)

Variations

MTD 783-04294-0637

Deck Stabiliz Bracket - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

46

MTD 783-04113

Deck Lift Index Bracket
(Superseded to 783-04113P)

$23.99

$

In Stock, only 1 left!

0

47

MTD 17630A

Shift Lever Retainer
(Superseded to 17630A-0637)

Variations

MTD 17630A-0637

Shift Lever Bracket - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

48

MTD 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

MTD 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

49

MTD 17860

Pedal Mounting Bracket
(Superseded to 17860-0637)

Variations

MTD 17860-0637

Pedal Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

51

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

52

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

53

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-3015

Hex Screw,1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

55

MTD 714-0470

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

56

MTD 732-04029

Extension Spring, .59 x 12.38
(Superseded to 932-04029)

$

$

Not available

57

MTD 783-04059

Speed Select Lever

$

$

Not available

58

MTD 732-04075A

Extension Spring, .73 x 12.54
(Superseded to 732-04075B)

$

$

Not available

59

MTD 732-04076

Extension Spring, 1.15 x 7.90
(Superseded to 732-04076A)

$12.99

$

In Stock, Qty 9

0

60

MTD 732-0722A

Brake Return Spring
(Superseded to 932-0722A)

$11.99

$

In Stock, only 4 left!

0

61

MTD 736-0242

Bell Washer, .34 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

62

MTD 747-04043

Variable Speed Control Rod

$17.99

$

Usually ships in 3-6 days

0

63

MTD 750-0566A

Spacer, .260 x .372 x 1.030

$9.49

$

In Stock, Qty 7

0

64

MTD 683-04005A

Clutch / Brake Pedal Assembly

Variations

MTD 683-04005A-0637

No Longer Available PEDAL ASM-CLUTCH - POWDER BLACK (0637)

$

$

Not available

MTD 683-04005A-0638

No Longer Available PEDALASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-04005A-0650

No Longer Available PEDALASM - RED METALLIC (0650)

$

$

Not available

MTD 683-04005A-0665

No Longer Available PEDALASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 735-0196

Foot Pad, 4.6
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 9

0

66

MTD 750-0802

Spacer, .640 x .76 x 2.63

$6.49

$

Usually ships in 3-6 days

0

67

MTD 720-04008

Shift Handle Grip

$4.99

$

Usually ships in 3-6 days

0

68

MTD 732-04017

Compression Spring, .89 x 1.75
(Superseded to 932-04017)

$

$

Not available

69

MTD 736-0300

Flat Washer, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

70

MTD 747-04039

Speed Control Rod

$

$

Not available

71

MTD 750-04080

Spacer, .640 x 1.0 x .78
(Superseded to 950-04080)

$

$

Not available

72

MTD 725-1737A

Battery, 190 CCA
(Superseded to 925-1707D)

$

$

Not available

73

MTD 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

74

MTD 734-0592

Wheel Ass'y Complete

Variations

MTD 734-0592-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$253.99

$

Usually ships in 3-6 days

0

MTD 734-0592-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$253.99

$

Usually ships in 3-6 days

0

MTD 734-0592-0945

WHEEL ASSY W/TIRE - Duro Yellow (0945)

$253.99

$

Usually ships in 3-6 days

0

MTD 734-0592-0911

WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

MTD 734-0592-0912

WHEEL ASSY W/TIRE - Dico Gray (0912)

$

$

Not available

MTD 734-0592-0931

WHEEL ASSY W/TIRE - Carlisle Beige (0931)

$

$

Not available

$253.99

$

Usually ships in 3-6 days

0

MTD 634-0069

Rim Assembly
(Superseded to 634-0138)

Variations

MTD 634-0069-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$62.99

$

Usually ships in 3-6 days

0

MTD 634-0069-0662

RIM ASSEMBLY-8 X 5 - OYSTER GRAY (0662)

$62.99

$

Usually ships in 3-6 days

0

MTD 634-0069-0637

USE 634-0138 RIM ASSEMBLY-8 X - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-0069-0674

No Longer Available RIMASSEMBL - YARDMAN YELLOW (0674)

$

$

Not available

$131.99

$

Usually ships in 3-6 days

0

MTD 734-0294

Tire Only (18 x 6.5 x 8)

Variations

MTD 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$79.99

$

In Stock, Qty 5

0

MTD 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$79.99

$

In Stock, Qty 5

0

MTD 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$79.99

$

In Stock, Qty 5

0

$

$

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

75

MTD 749-0333

Spacer

$

$

Currently unavailable
