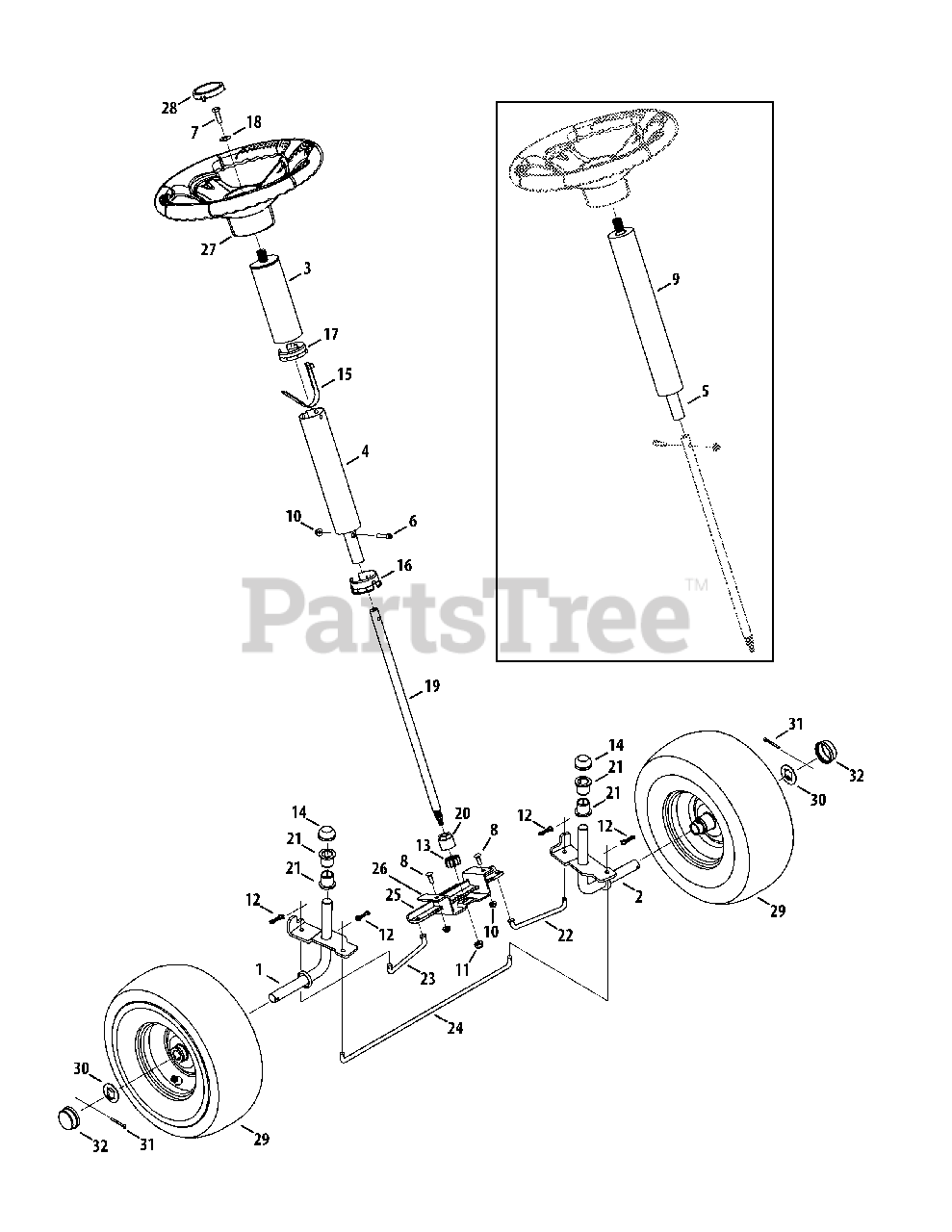

13AC26JD058 - Murray Lawn Tractor (2015) Front End Steering Parts Diagram

Lawn Tractor

Front End Steering Parts Diagram

  • Title

1

MTD 683-04726-0637

Front Axle Assembly, RH

$38.99

$

In Stock, only 2 left!

0

2

MTD 683-04727-0637

Front Axle Assembly, LH

$38.99

$

In Stock, only 2 left!

0

3

MTD 683-04761

Upper Tube Assembly

$49.99

$

Usually ships in 3-6 days

0

4

MTD 683-04762

Lower Tube Assembly

$71.99

$

In Stock, only 1 left!

0

5

MTD 983-04763-0637

Tube Assembly, Non-Telescoping

$42.99

$

In Stock, only 2 left!

0

6

MTD 738-05000

Shoulder Screw, .375 x .148 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0643

Hex Head Screw, 5/16-18:1.00

$7.49

$

In Stock, Qty 20+

0

8

MTD 710-0703

Carriage Screw, 1/4-20, .75

$4.49

$

In Stock, Qty 15

0

9

MTD 723-04095A

Steering Sleeve
(Superseded to 723-04095B)

$31.99

$

In Stock, only 1 left!

0

10

MTD 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

13

MTD 717-1554

Steering Pinion Gear

$11.99

$

In Stock, Qty 20+

0

14

MTD 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

15

MTD 726-04127

Snap Butt

$11.99

$

Usually ships in 3-6 days

0

16

MTD 731-08690

Lower Steering Collar

$4.49

$

In Stock, Qty 11

0

17

MTD 731-08691

Upper Steering Collar

$4.49

$

In Stock, only 4 left!

0

18

MTD 736-0242

Bevel Washer, .340X.872X.060

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-04537A

Steering Shaft, .625 OD X 18.03
(Superseded to 738-04537B)

$36.99

$

Usually ships in 3-6 days

0

20

MTD 741-04542A

Hex Flange Bearing, 5/8

$5.49

$

In Stock, Qty 20+

0

21

MTD 741-0660A

Flange Bearing, .760 X .941 X 1.0

$3.49

$

In Stock, Qty 20+

0

22

MTD 747-05514

Steering Rod, LH

$15.99

$

In Stock, Qty 9

0

23

MTD 747-05585

Steering Rod, RH

$15.99

$

In Stock, Qty 7

0

24

MTD 747-06027

Front Tie Rod

$15.99

$

In Stock, Qty 12

0

25

MTD 783-06988A

Steering Rack Plate
(Superseded to 753-11064C)

$76.99

$

In Stock, Qty 20+

0

26

MTD 783-07239A

Lower Steering Bearing
(Superseded to 753-11064C)

$76.99

$

In Stock, Qty 20+

0

27

MTD 631-04028

Steering Wheel, Std. Grip

$73.99

$

In Stock, only 4 left!

0

28

MTD 731-04039

No Sprig Cap

$8.99

$

In Stock, Qty 7

0

29

MTD 634-04726-0911

Complete Wheel Assembly
(Superseded to 634-04732)

$153.99

$

In Stock, only 2 left!

0

30

MTD 736-04228A

Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0

31

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$5.49

$

In Stock, Qty 20+

0

32

MTD 931-0484A

Hub Cap

$6.99

$

In Stock, Qty 20+

0
