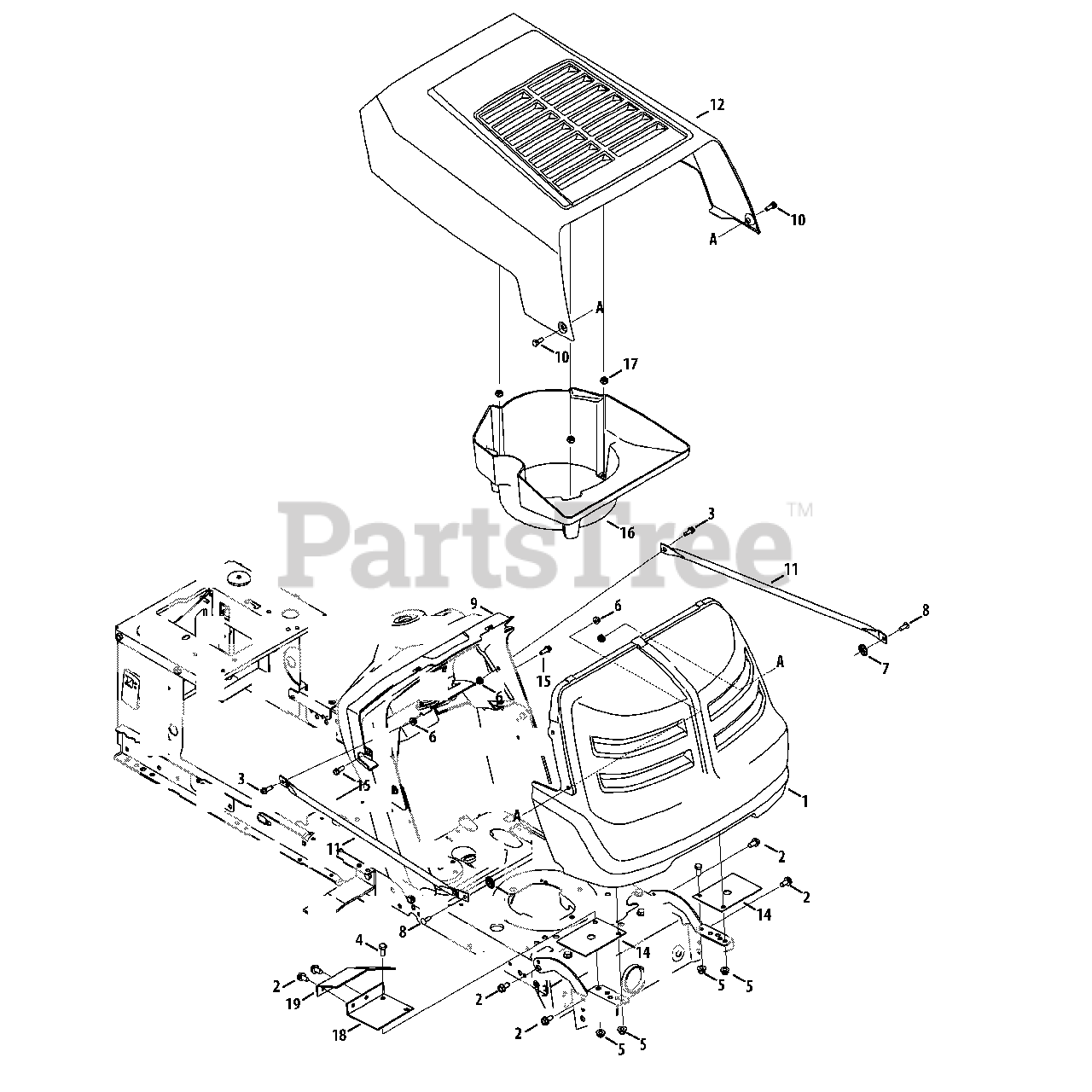

13AC76LF055 - Yard-Man Lawn Tractor (2013) Hood & Grille Parts Diagram

Lawn Tractor

Hood & Grille Parts Diagram

  • Title

1

MTD 931-05028

Grill Assembly

$

$

Not available

2

MTD 710-04484

Screw, Tap, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

Screw, Tap, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3008

Hex Screw, 5/16-18, .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

MTD 926-04012

Nut, push-On, .25 Dia
(Superseded to 726-04012)

$

$

Not available

8

MTD 728-0162

Rivet, flat Head 1/4"

$4.49

$

Usually ships in 3-6 days

0

9

MTD 731-05012B

Collar, dash, 0/2 Style

$15.99

$

Usually ships in 3-6 days

0

10

MTD 938-0952A

Bolt, Shoulder, .375 X .125

$6.99

$

In Stock, Qty 14

0

11

MTD 749-04220-0637

Grill Support Rod

$24.99

$

Usually ships in 3-6 days

0

12

MTD 783-04608-0662

Hood

$237.99

$

Usually ships in 3-6 days

0

13

MTD 783-05027-0637

Front Pivot Support Bracket

$19.99

$

Usually ships in 3-6 days

0

14

MTD 783-06682-0637

Support Bracket

$3.99

$

Usually ships in 3-6 days

0

15

MTD 710-0895

Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

16

MTD 731-09514

Plenum

$39.99

$

Usually ships in 3-6 days

0

17

MTD 748-05016

Spacer, .17 ID x .375 x .09

$3.49

$

Usually ships in 3-6 days

0

18

MTD 783-08234-0637

Heat Shield

$9.49

$

Usually ships in 3-6 days

0

19

MTD 783-08236

Heat Shield

$6.49

$

Usually ships in 3-6 days

0
