13AD678G034 - Ryobi Lawn Tractor (2002) Hood Style 8 Parts Diagram

Lawn Tractor

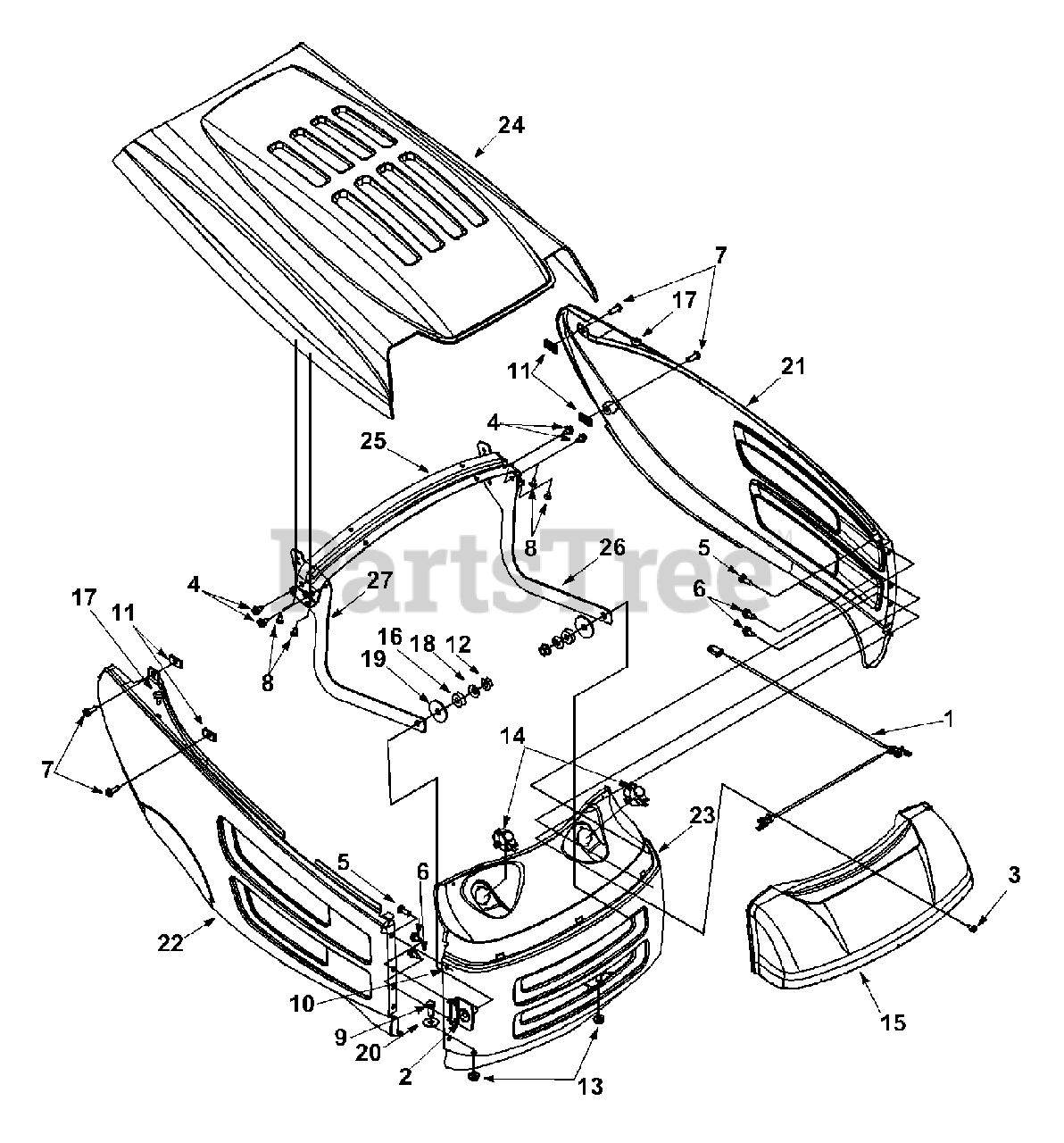

Hood Style 8 Parts Diagram

  • Title

1

MTD 629-0469A

Harness Assembly
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

2

MTD 683-0195

Bracket Assembly
(Superseded to 683-0195-0637)

Variations

MTD 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

3

MTD 710-0456

Hex Wash. Tap Screw #10-16 Thd.

$

$

Not available

4

MTD 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 Lg.

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0896

Hex Wash. Scr. 1/4-14 x .625" Lg.

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0924

Pan Hd. Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1760

Torx Scr. #10-16 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

9

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0271

Hex Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0292

Tinn Nut 1/4-20 Thd.

$9.99

$

Usually ships in 3-6 days

0

12

MTD 712-0431

Flange L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 20+

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

MTD 725-0963

Lamp
(Superseded to 925-0963)

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

15

MTD 731-1854A

Lens
(Superseded to 931-1854A)

$77.99

$

In Stock, Qty 5

0

16

MTD 735-0126

Rubber Wash.
(Superseded to 735-0126A)

$

$

Not available

17

MTD 735-0199A

Rubber Bumper

$6.99

$

In Stock, Qty 16

0

18

MTD 736-0105

Bell-Wash. .375" I.D. x .870" O.D.

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-3039

Fl-Wash. .406" I.D. x 1.5" O.D.

$4.99

$

In Stock, Qty 18

0

20

MTD 736-3078

Fl-Wash. .349" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 16

0

21

MTD 783-0475A

L.H. Side Panel
(Superseded to 783-0475C)

Variations

MTD 783-0475A-0499

PANEL-SIDE 8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0475A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0475A-0638

PANEL-SIDE 8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0475A-0662

PANEL-SIDE 8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0475A-0665

PANEL-SIDE 8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0475A-0691

PANEL-SIDE 8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0475A-0709

PANEL-SIDE 8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0475A-0724

PANEL-SIDE 8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

22

MTD 783-0476B

R.H. Side Panel

Variations

MTD 783-0476B-0629

PANEL-SIDE RH 8STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0476B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0476B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0476B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0476B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0476B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0476B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0476B-0724

No Longer Available PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

23

MTD 783-0477A

Grill

Variations

MTD 783-0477A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0477A-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0477A-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0477A-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0477A-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0477A-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0477A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0477A-0691

No Longer Available GRILLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0477A-0709

No Longer Available GRILLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0477A-0724

No Longer Available GRILLE - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0477A-0732

No Longer Available GRILLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

24

MTD 783-0478A

Hood
(Superseded to 983-0478B)

Variations

MTD 783-0478A-0499

HOOD-8 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-0478A-0629

No Longer Available HOOD-8 STY - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0478A-0638

HOOD-8 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0478A-0662

HOOD-8 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0478A-0665

HOOD-8 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0478A-0691

HOOD-8 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0478A-0709

HOOD-8 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0478A-0724

No Longer Available HOOD-8 STY - CHAMPAGNE PLUS (0724)

$

$

Not available

MTD 783-0478A-0732

HOOD-8 STYLE - SPARKLING GRAY (0732)

$

$

Not available

$274.99

$

Usually ships in 3-6 days

0

25

MTD 783-0553A

Hood Support Bracket
(Superseded to 783-0553A-0637)

Variations

MTD 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 783-1038C

L.H. Hinge Hood Bracket

$

$

Currently unavailable

27

MTD 783-1495

R.H.Hinge Hood Bracket
(Superseded to 783-1495-0637)

Variations

MTD 783-1495-0637

Hood Side Bracket - POWDER BLACK (0637)

$

$

Not available

$

$
