13AG611G706 - Estate Lawn Tractor (2005) (Blain Supply) Hood Parts Diagram

Lawn Tractor

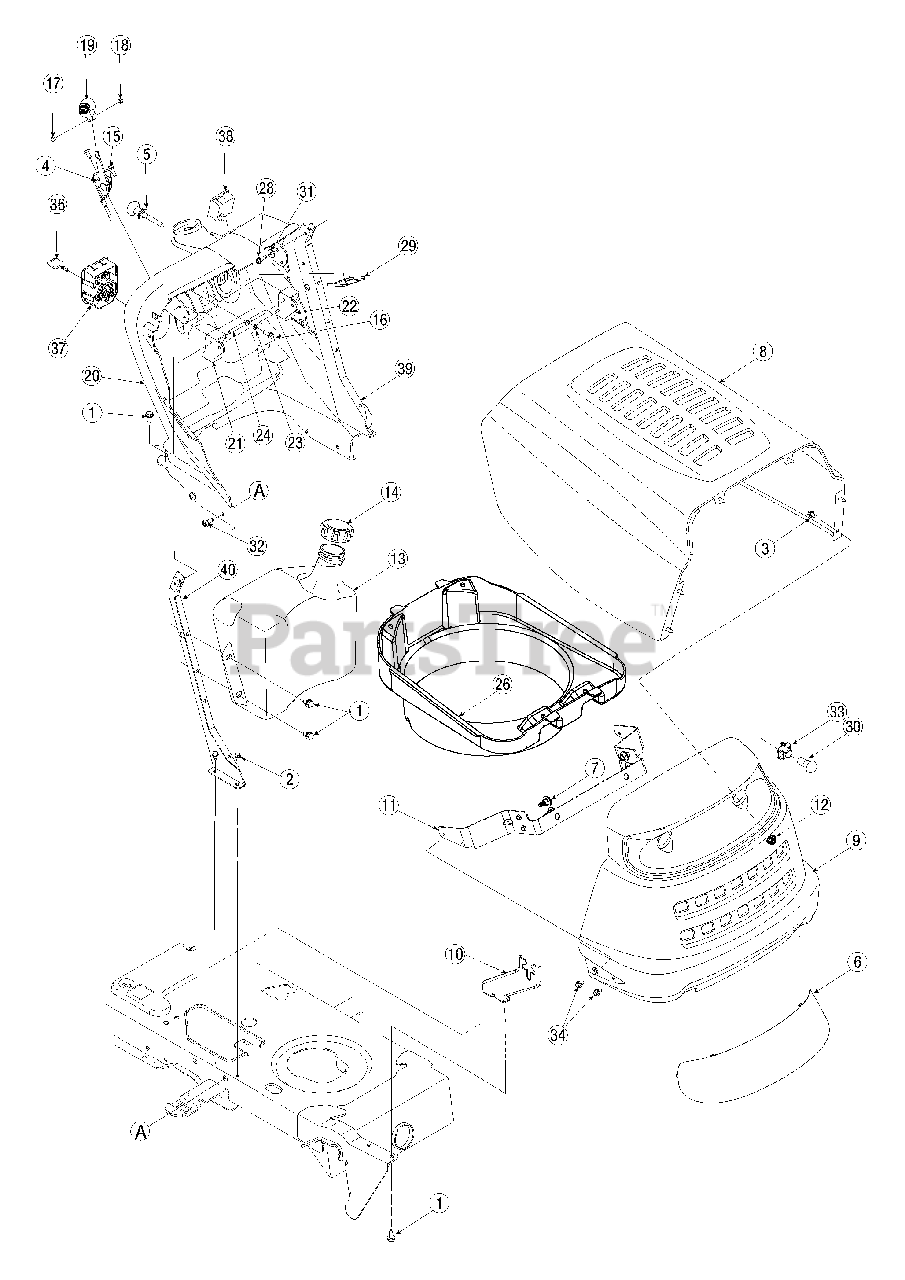

Hood Parts Diagram

  • Title

1

MTD 710-0726

Screw, 5/16-12 x.750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

4

MTD 746-1084

Throttle/Choke Cable
(Superseded to 946-1084)

Note: (Kohler Courage)

$29.99

$

Usually ships in 3-6 days

0

MTD 746-1086

Throttle Cable
(Superseded to 946-1086)

Note: (Kohler/ B&S Twin)

$31.99

$

In Stock, Qty 6

0

5

MTD 746-1085A

Choke Knob/Cable
(Superseded to 946-1085A)

Note: (Kohler/ B&S Twin)

$28.99

$

In Stock, Qty 14

0

6

MTD 731-04949

Headlight Lens
(Superseded to 731-04949A)

$25.99

$

In Stock, Qty 12

0

7

MTD 738-04091

Shoulder Screw,.43 x.29
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

8

MTD 783-04551

Hood, 1 Style

Variations

MTD 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04551-0640

No Longer Available HOOD-1 STY - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

MTD 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

9

MTD 783-04552

Grill, 1 Style

Variations

MTD 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04552-0638

GRILL 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

10

MTD 783-04578

Pivot Bracket - RH
(Superseded to 783-04578A-0637)

Variations

MTD 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$16.99

$

In Stock, only 1 left!

0

MTD 783-04577

Pivot Bracket - LH
(Superseded to 783-04577A-0637)

Variations

MTD 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 783-04621

Grill Pivot Bracket

Variations

MTD 783-04621-0637

Grill Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 751-0659C

Fuel Tank, Two Gallon
(Superseded to 751-0659D)

Note: (shown)

$79.99

$

In Stock, Qty 6

0

MTD 751-0658E

Fuel Tank, Three Gallon

$107.99

$

In Stock, Qty 5

0

14

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

Note: (fits either tank)

$21.99

$

In Stock, Qty 20+

0

15

MTD 710-1017

Screw, 1/4-14 x.625

$7.99

$

In Stock, Qty 20+

0

16

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$5.99

$

In Stock, Qty 20+

0

17

MTD 710-3217

Truss Phillips Screw, #8-32 x.375

$6.49

$

In Stock, Qty 10

0

18

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 12

0

19

MTD 731-1857

Throttle Control Knob

$13.99

$

In Stock, only 4 left!

0

20

MTD 731-05001

Dash Panel
(Superseded to 731-06167)

Note: (Models w/ Manual PTO)

$109.99

$

Usually ships in 3-6 days

0

MTD 731-05005

Dash Panel
(Superseded to 731-06169)

Note: (Models w/ Electric PTO)

$

$

Not available

21

MTD 731-04215

Cruise Control Button
(Superseded to 931-04215)

$

$

Not available

22

MTD 731-04217

Parking Brake Button
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

23

MTD 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.49

$

Usually ships in 3-6 days

0

24

MTD 747-1196

Brake/Cruise Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

25

MTD 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$36.99

$

In Stock, only 1 left!

0

26

MTD 731-05165

Hood Plenum
(Superseded to 731-05165A)

$43.99

$

Usually ships in 3-6 days

0

27

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: (If Equipped)

$65.99

$

In Stock, Qty 20+

0

28

MTD 710-0642

Self-tapping Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

29

MTD 783-0462

Switch Brkt., Electric PTO

Note: (If Equipped)

$7.99

$

In Stock, only 3 left!

0

30

MTD 725-0963

Lamp
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

31

MTD 736-0270

Bell Washer,.265 x.75 x.062

$3.99

$

In Stock, Qty 14

0

32

MTD 710-1611B

Screw, 5/16-18 x.75

$6.49

$

In Stock, only 2 left!

0

33

MTD 725-1649

Headlight Socket
(Superseded to 925-1649A)

$10.99

$

In Stock, Qty 20+

0

34

MTD 710-1652

Hex Index Screw, 1/4-20 x.625

$3.99

$

In Stock, Qty 20+

0

35

MTD 731-1999

Choke Plug

Note: (Kohler Courage)

$9.99

$

Usually ships in 3-6 days

0

36

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

37

MTD 725-04227

Ignition Switch
(Superseded to 925-06119C)

$108.99

$

In Stock, Qty 20+

0

38

MTD 725-04036A

Systems Ind. Monitor w/ Hour Meter
(Superseded to 925-06170B)

$65.99

$

In Stock, only 1 left!

0

MTD 725-04156

Systems Ind. Monitor w/ Ammeter
(Superseded to 925-04156)

$27.99

$

In Stock, Qty 6

0

39

MTD 783-04323B

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

MTD 783-04323B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

40

MTD 783-04285B

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

MTD 783-04285B-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 629-04144

Jumper Harness

Note: (Models w/ Manual PTO) Not Shown

$

$

Not available

MTD 629-04137

Wire Harness

Note: (models w/ Electric PTO & Hour Meter) Not Shown

$

$

Not available

MTD 629-04105

Wire Harness

Note: (models w/ Manual PTO & Hour Meter) Not Shown

$

$

Not available

MTD 629-04103

Wire Harness

Note: (models w/ Manual PTO & Ammeter) Not Shown

$

$

Not available
