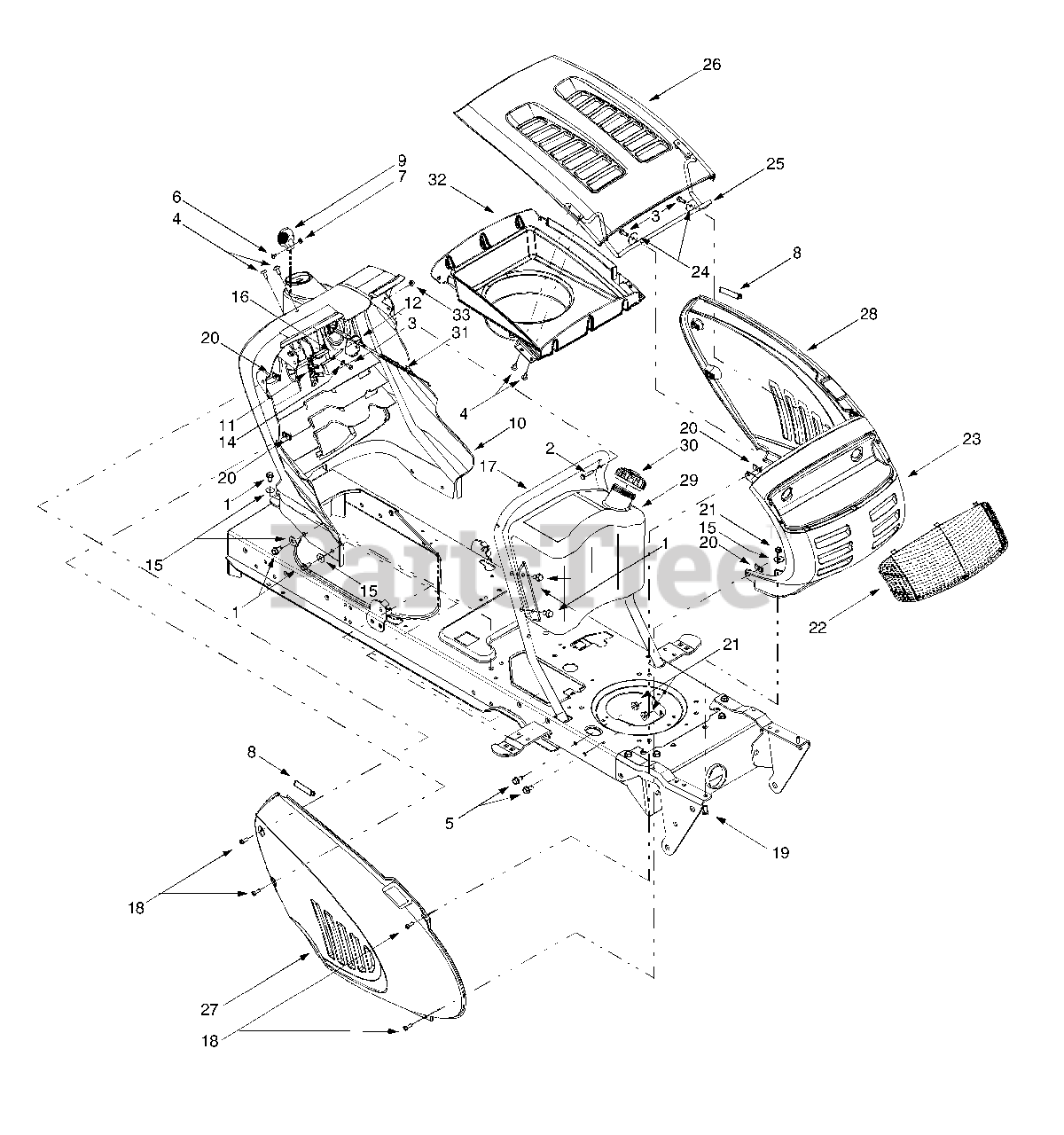

13AG619H022 - Lawn Chief Lawn Tractor (2000) (Cotter & Company) Hood Style 9 Parts Diagram

Lawn Tractor

Hood Style 9 Parts Diagram

  • Title

1

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$6.99

$

In Stock, only 4 left!

0

3

MTD 710-0895

Self-tapping Screw, 1/4-15 x .75

$5.99

$

In Stock, Qty 20+

0

4

MTD 710-1017

Torx Self-tapping Screw, 5/16-18 x .625

$7.99

$

In Stock, Qty 20+

0

5

MTD 710-1238

Screw, 5/16-18 x .875 (Grade 5)
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 6

0

6

MTD 710-3217

Torx Screw, #8-32 x .375

$6.49

$

In Stock, Qty 10

0

7

MTD 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 12

0

8

MTD 731-0511-5

Five-inch Trim Strip

$12.99

$

Usually ships in 3-6 days

0

9

MTD 731-1857

Throttle Control Lever

$13.99

$

In Stock, only 4 left!

0

10

MTD 731-2122

Dash Panel
(Superseded to 731-2122C)

$

$

Not available

11

MTD 731-2228

Plastic Plug

$

$

Not available

12

MTD 731-2227

Parking Brake Button

$

$

Not available

?13

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0142

Flat Washer, .281 x .5 x .063

$4.49

$

In Stock, only 1 left!

0

15

MTD 736-3078

Flat Washer, .349 x 1.0 x .063

$3.99

$

In Stock, Qty 15

0

16

MTD 747-1196

Pivot Rod

$14.99

$

Usually ships in 3-6 days

0

17

MTD 749-1087

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

MTD 749-1087-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0292

U-type Speed Nut, 1/4-20

$9.99

$

Usually ships in 3-6 days

0

21

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

22

MTD 731-2118

Lens, 9-style
(Superseded to 731-2118A)

$35.99

$

Usually ships in 3-6 days

0

23

MTD 731-2119

Grille, 9-style
(Superseded to 731P2119A)

$96.99

$

Usually ships in 3-6 days

0

24

MTD 736-0211

Flat Washer, .285 x 1.25 x .08

$6.49

$

In Stock, Qty 8

0

25

MTD 747-1162

Hood Hinge Rod

$

$

Not available

26

MTD 783-0783

Hood, 9-style
(Superseded to 783-0783A)

Variations

MTD 783-0783-0638

HOOD:3 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0783-0691

HOOD:3 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0783-0709

HOOD:3 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

27

MTD 783-0784

RH Side Pane, 9-style
(Superseded to 783-0784A)

Variations

MTD 783-0784-0638

PANEL-SIDE RH - MTD/TROY-BILT RED (0638)

$114.99

$

Usually ships in 3-6 days

0

MTD 783-0784-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 783-0784-0709

PANEL-SIDE RH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

28

MTD 783-0785

LH Side Panel, 9-style

Variations

MTD 783-0785-0638

PANEL:SD:LH 9 STYLE - MTD/TROY-BILT RED (0638)

$142.99

$

Usually ships in 3-6 days

0

MTD 783-0785-0691

PANEL:SD:LH 9 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-0785-0709

PANEL:SD:LH 9 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

29

MTD 751-0659

Two-gallon Fuel Tank
(Superseded to 751-0659D)

Note: (shown)

$79.99

$

In Stock, Qty 6

0

MTD 751-0658

Three-gallon Fuel Tank

$

$

Not available

30

MTD 751-0603

Fuel Cap (Fits Either Tank)
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

31

MTD 746-1085

Choke Knob/Cable Assembly (Units w/ B&S Opposed Twin or OHV Twin)
(Superseded to 946-1085A)

$28.99

$

In Stock, Qty 13

0

32

MTD 731-2270

Hood Plenum (Units w/ B&S OHV V-Twin)
(Superseded to 731-2270A)

$

$

Not available

MTD 731-2271

Hood Plenum (Units w/ B&S Opposed Twin)

$

$

Not available

33

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0
