13AH650F752 - Yard Machines Lawn Tractor (2004) (Walmart) Engine Accessories Parts Diagram

Lawn Tractor

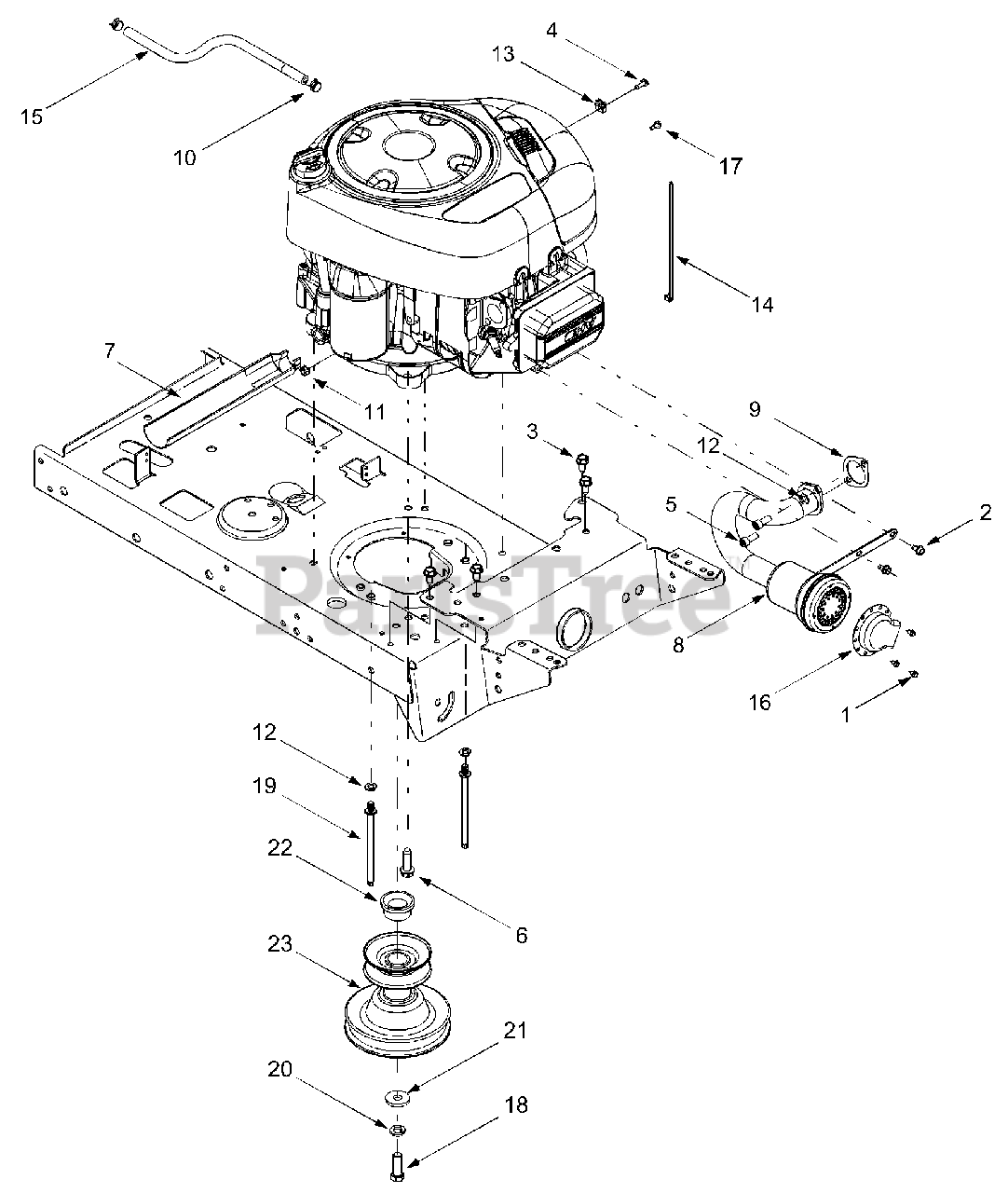

Engine Accessories Parts Diagram

  • Title

1

MTD 710-1502

Screw, #8-18 x .375

$

$

Not available

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x .625

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 12

0

7

MTD 731-1682A

Oil Drain Sleeve

$8.49

$

In Stock, Qty 20+

0

8

MTD 751-9986

Muffer, Single Inlet
(Superseded to 951-9986A)

$103.99

$

Usually ships in 3-6 days

0

9

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

10

MTD 726-0205

Hose Clamp, .490

$4.49

$

In Stock, Qty 15

0

11

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.99

$

In Stock, Qty 13

0

12

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

16

MTD 751B222261

Muffler Deflector

$10.99

$

In Stock, only 1 left!

0

17

MTD 710-0456

Screw, #10-16 x .5

Note: (Throttle Stop)

$

$

Not available

18

MTD 710-3029

Hex Screw, 7/16-20 x 1.25

$4.99

$

In Stock, only 3 left!

0

19

MTD 711-1044

Belt Keeper Pin, 5/16 x 4.75
(Superseded to 711-1044A)

$9.49

$

In Stock, Qty 9

0

20

MTD 736-0171

Lock Washer, 7/16

$4.99

$

In Stock, only 4 left!

0

21

MTD 736-0322

Flat Washer, .450 x 1.25 x .164

$9.99

$

In Stock, only 2 left!

0

22

MTD 750-0956

Spacer, 1.0 x 1.4 x .825

$20.99

$

In Stock, Qty 5

0

23

MTD 756-04023

Engine Pulley, 3.12 x 5.56
(Superseded to 956-04023)

$127.99

$

In Stock, Qty 7

0
