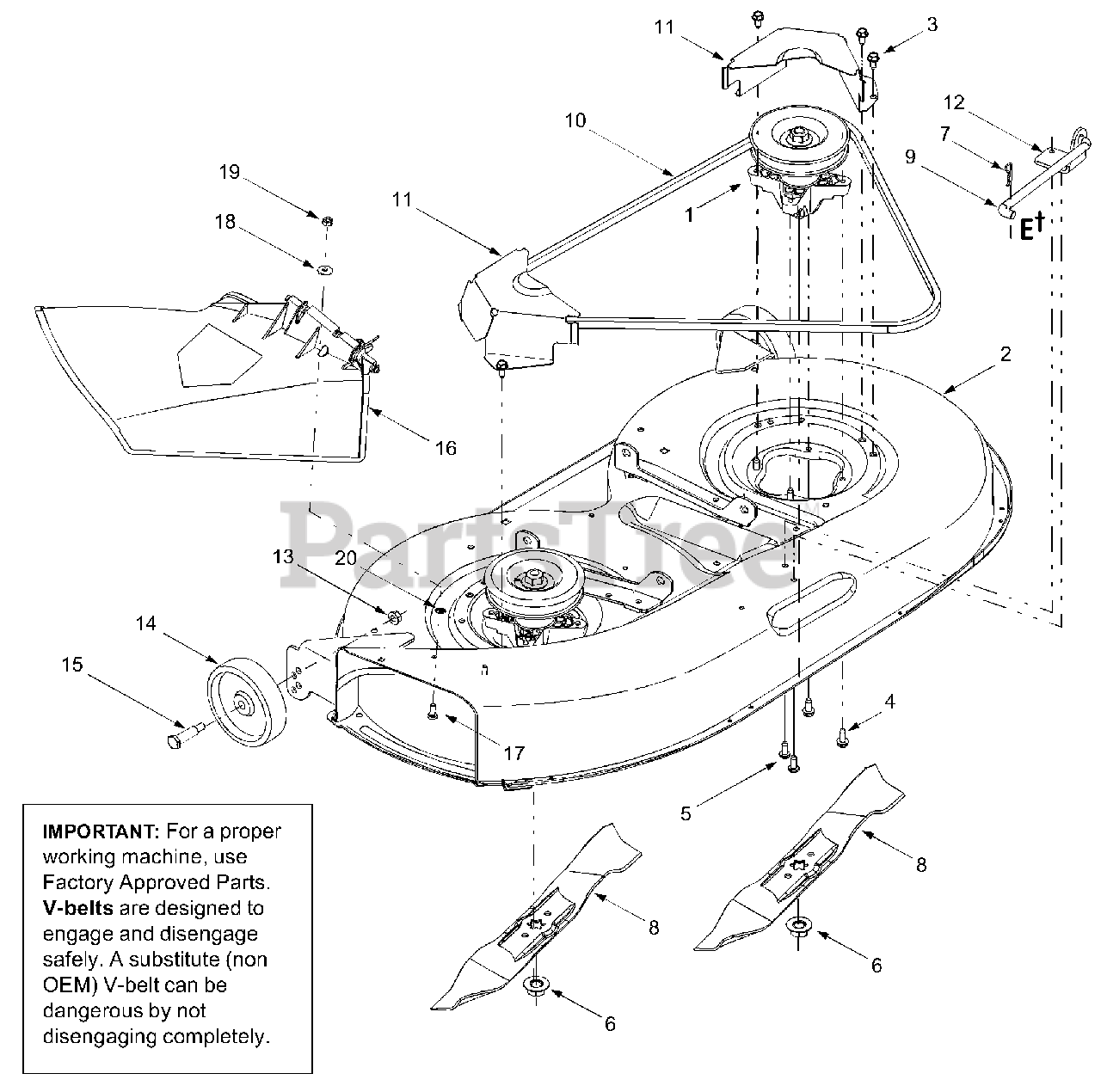

13AJ693G755 - Yard Machines Lawn Tractor (2004) (Walmart) Deck Assembly Parts Diagram

Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

MTD 618-0142A

Spindle Assembly
(Superseded to 918-0142C)

$142.99

$

In Stock, Qty 5

0

2

MTD 683-04035A

Deck Shell
(Superseded to 983-04035A)

Variations

MTD 683-04035A-0637

DECK ASM-42" SHELL - POWDER BLACK (0637)

$

$

Not available

MTD 683-04035A-0691

DECK ASM-42" SHELL - BLACK JACK (0691)

$

$

Not available

MTD 683-04035A-0650

DECK ASM-42" SHELL - RED METALLIC (0650)

$

$

Not available

$

$

3

MTD 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1260A

Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1616A

Self-tapping Screw, 5/16-18 x .75

$

$

Currently unavailable

6

MTD 712-0417A

Hex Flange Nut, 5/8-18

$7.49

$

In Stock, Qty 20+

0

7

MTD 714-04023

Internal Cotter Pin, .080 x 1.56

$4.49

$

In Stock, Qty 20+

0

8

MTD 742-0616A

Blade, 21.23"
(Superseded to 942-0616A)

$33.99

$

In Stock, Qty 20+

0

9

MTD 747-04018A

Deck Hanger Link/Anti-sway Rod
(Superseded to 947-04018A)

$

$

Not available

10

MTD 754-0371A

Deck Belt
(Superseded to 954-0371A)

$109.99

$

In Stock, only 3 left!

0

11

MTD 783-04149B

Belt Cover

Variations

MTD 783-04149B-0637

Belt Cover, 42" Black - POWDER BLACK (0637)

$29.99

$

In Stock, only 2 left!

0

MTD 783-04149B-0650

COVER-BELT 42"DK - RED METALLIC (0650)

$29.99

$

In Stock, only 2 left!

0

MTD 783-04149B-0665

COVER-BELT 42"DK - YARDMAN GREEN (0665)

$29.99

$

In Stock, only 2 left!

0

MTD 783-04149B-0691

Deck Belt Cover, 42" Black - BLACK JACK (0691)

$29.99

$

In Stock, only 2 left!

0

$23.99

$

Usually ships in 3-6 days

0

12

MTD 783-04211

Anti-sway Stabilizer Bracket
(Superseded to 783-04211-0637)

Variations

MTD 783-04211-0637

BRACKET-STABILIZER - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

13

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

14

MTD 734-0973

Deck Wheel, 5 x 1.38
(Superseded to 734-06265)

$13.99

$

Usually ships in 3-6 days

0

15

MTD 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

16

MTD 731-1032B

Discharge Chute Assembly
(Superseded to 631-05229)

$86.99

$

In Stock, Qty 20+

0

17

MTD 710-0751

Hex Cap Screw:1/4-20 x .620

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0270

Bell Washer, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 12

0

20

MTD 726-0233

Push Nut, 1/4

$4.49

$

In Stock, Qty 20+

0
