13AL450C700 - Yard Machines Lawn Tractor (1997) Mowing Deck C: 30-inch Parts Diagram

Lawn Tractor

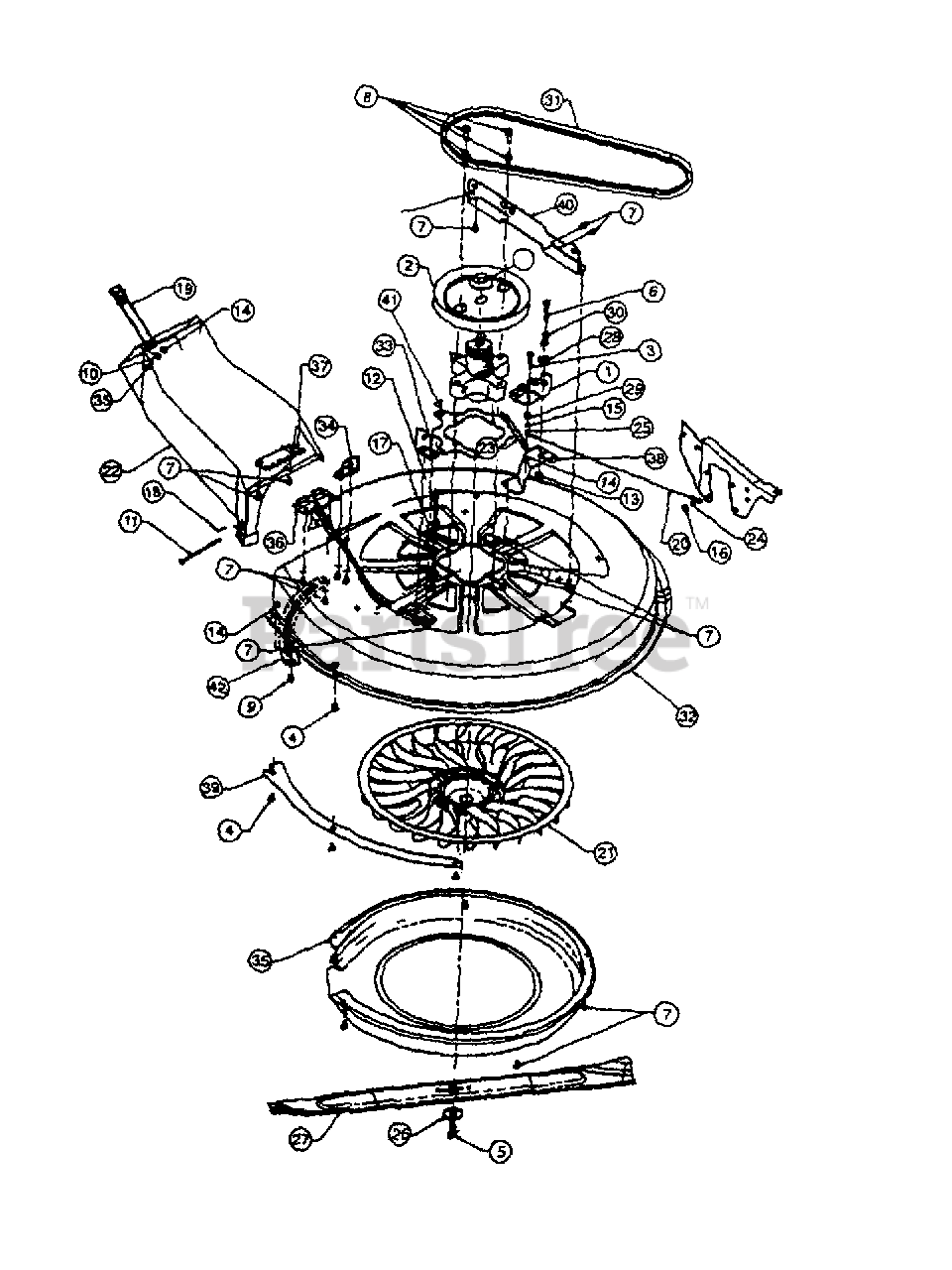

Mowing Deck C: 30-inch Parts Diagram

  • Title

1

MTD 17116

Brake Bracket Assembly.
(Superseded to 97116)

$48.99

$

In Stock, only 2 left!

0

2

MTD 618-0139

Spindle Assembly. w/Pulley

$

$

Not available

3

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

4

MTD 710-0134

Carriage Scr. 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0314

Hex Bolt 7/16-20 x 1.0"

$4.49

$

In Stock, only 3 left!

0

6

MTD 710-0380

Hex Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0599

Hex Washer Hd. TT-Tap Scr. 1/4-20 x .5"

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0602

Hex Washer Hd. TT-Tap Scr. 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0703

Hex Carriage Scr.

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3015

Hex screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

11

MTD 711-1054

Clevis Pin 4.42"

$

$

Not available

12

MTD 711-1065

Belt Guard Pin 3.06"

$

$

Not available

13

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.49

$

Usually ships in 3-6 days

0

14

MTD 712-0324

Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

15

MTD 712-3006

Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-3046

Top Lock Hex Jam Nut 5/16-18

$6.49

$

Usually ships in 3-6 days

0

18

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 4 left!

0

19

MTD 723-0383

Strap Retainer Assembly.
(Superseded to 923-0383)

$14.99

$

In Stock, Qty 13

0

20

MTD 727-0470

Brake Cable 16.47"

$

$

Not available

21

MTD 731-1583

Deck Fan
(Superseded to 931-1583)

$201.99

$

Usually ships in 3-6 days

0

22

MTD 731-1605A

Rear Discharge Chute
(Superseded to 731-1605F)

$176.99

$

Usually ships in 3-6 days

0

23

MTD 732-0604

Ext. Spring 5.52" Lg.

$

$

Not available

24

MTD 736-0204

Flat Washer .344" 1.0. x .62" O.D.

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-0342

Flat Washer .283 x .75 x .030

$6.99

$

Usually ships in 3-6 days

0

26

MTD 736-0510

Belle. Washer

$4.49

$

In Stock, Qty 5

0

27

MTD 742-0609

Blade: 30" x .150 Thk.
(Superseded to 942-04058)

$41.99

$

Usually ships in 3-6 days

0

28

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

29

MTD 750-0555

Spacer

$

$

Not available

30

MTD 750-0755

Spacer

$3.99

$

Usually ships in 3-6 days

0

31

MTD 754-0445

V Belt
(Superseded to 954-0445)

$97.99

$

Usually ships in 3-6 days

0

32

MTD 783-0247B

Deck Fan

Variations

MTD 783-0247B-0637

No Longer Available DECK ASM - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 783-0248

Deck Hanger Bracket

$

$

Not available

34

MTD 783-0249

Deck Hanger Bracket

$

$

Not available

35

MTD 783-0289

Fan Shroud
(Superseded to 783-0289-0637)

Variations

MTD 783-0289-0637

SHROUD-FAN - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 783-0291

Tube Pivot Bracket

Variations

MTD 783-0291-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 783-0292

Chute Pivot Bracket
(Superseded to 783-0292-0637)

Variations

MTD 783-0292-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 783-0295

Support Bracket

Variations

MTD 783-0295-0637

No Longer Available BRACKET-DE - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 783-0401

Deck Skirt

$

$

Currently unavailable

40

MTD 783-0304A

Deck Hanger Bracket

$

$

Not available

41

MTD 783-0571

Reinf. Plate

$

$

Currently unavailable

42

MTD 783-0572

Chute Support

$

$

Currently unavailable
