13AL450C700 - Yard Machines Lawn Tractor (1997) Mowing Deck C: Grasscatcher Parts Diagram

Lawn Tractor

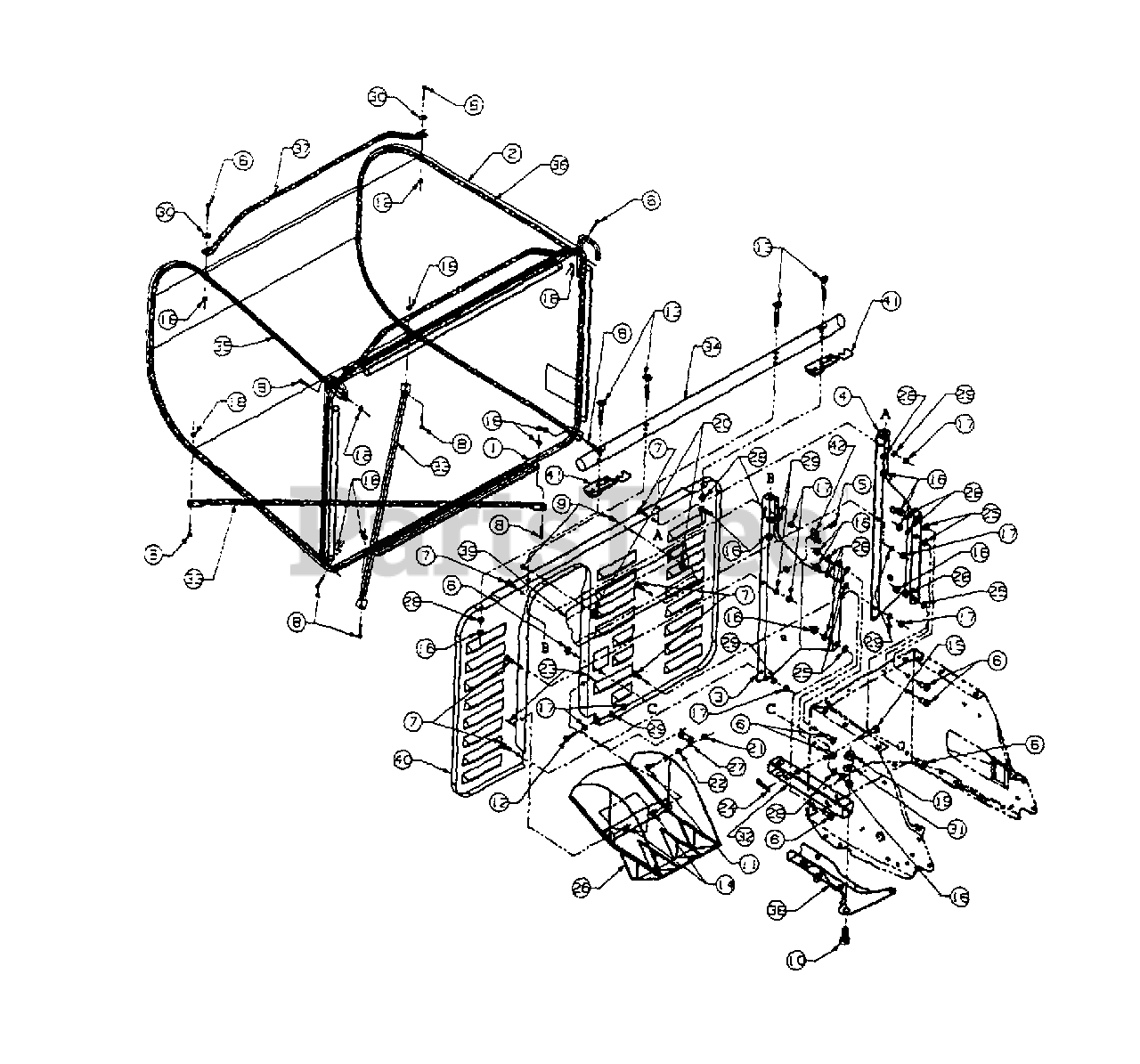

Mowing Deck C: Grasscatcher Parts Diagram

  • Title

1

MTD 649-0011

Front Grass Catcher Frame

Variations

MTD 649-0011-0637

No Longer Available TUBE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 664-0073

Grass Bag Assembly.

$

$

Not available

3

MTD 683-0106

Grass Catcher Support-R.H.

$

$

Currently unavailable

4

MTD 683-0105

Grass Catcher Support-L.H.

$

$

Not available

5

MTD 710-0599

Hex Washer Hd. AB-Tap Scr. 1/4-20 x .5"

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0258

Hex Bolt 1/4-20 x .625" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-1194

Hex Bolt #10-24 x .88" Lg.

$3.99

$

Usually ships in 3-6 days

0

9

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5"

$4.49

$

In Stock, only 4 left!

0

10

MTD 710-0493

Hex Bolt 1/2-13 x 1" Lg.
(Superseded to 710-3131)

$4.99

$

In Stock, only 1 left!

0

11

MTD 710-0134

Carriage Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0597

Hex Bolt 1/4-20 x 1" Lg.

$3.99

$

In Stock, Qty 19

0

13

MTD 710-1174

Curved Carr. Bolt 5/16-18 x 2"

$6.99

$

In Stock, Qty 20+

0

14

MTD 711-0701

Clevis Pin .25" Dia.
(Superseded to 911-0701)

$6.49

$

In Stock, only 1 left!

0

15

MTD 711-0679

Clevis Pin 3/8" Dia.
(Superseded to 711-0679A)

$13.99

$

In Stock, only 2 left!

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

18

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

19

MTD 712-0206

Hex Nut 1/2-13 Thd.

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0147

Speed Clip Nut #10-24 Thd.

$6.49

$

Usually ships in 3-6 days

0

21

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

22

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, only 4 left!

0

24

MTD 714-0147

Hairpin Clip

$4.49

$

In Stock, Qty 12

0

25

MTD 726-0201

Speed Nut 5/16-18 Thd.

$6.49

$

In Stock, Qty 20+

0

26

MTD 731-1606

Rear Discharge Chute

$

$

Not available

27

MTD 732-0755

Ext. Spring 2.1" Lg.

$

$

Not available

28

MTD 736-0119

Lock Washer 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0329

Lock Washer 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

30

MTD 736-0400

Flat Washer .194" I.D. x .62" O.D.

$4.99

$

In Stock, Qty 16

0

31

MTD 736-0253

Bell-Washer .5" I.D. x 1" O.D.

$3.99

$

In Stock, Qty 20+

0

32

MTD 749-0966

Hitch Plate Extension Tube

Variations

MTD 749-0966-0637

No Longer Available TUBE-SQUAR - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 749-0964

Cross Brace

Variations

MTD 749-0964-0637

No Longer Available TUBE-28.45 - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 749-0963

Rear Discharge Panel Tube

$

$

Not available

35

MTD 749-0960

Side Frame-R.H.

Variations

MTD 749-0960-0637

No Longer Available TUBE-RH SI - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 749-0959

Side Frame-L.H.
(Superseded to 749-0959-0637)

Variations

MTD 749-0959-0637

TUBE-LH SIDE FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 749-0962

Handle 24.2" Lg.

Variations

MTD 749-0962-0637

No Longer Available TUBE-HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 783-0286

Hitch Brkt. Extension

Variations

MTD 783-0286-0637

No Longer Available BRACKET-HI - POWDER BLACK (0637)

$

$

Not available

$

$

39

MTD 783-0308

Grass Shield

$

$

Not available

40

MTD 783-0278

Rear Discharge Panel

Variations

MTD 783-0278-0637

No Longer Available PANEL-REAR - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 15995A

Grass Catcher Support Brkt.

Variations

MTD 15995A-0637

No Longer Available PLATE-SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 16606

Retainer Hook Brkt.
(Superseded to 96606)

$6.99

$

In Stock, Qty 14

0

?43

MTD 813-04196

Grass Catcher Comp.

$

$

Not available
