13AL795S004 - MTD Gold Lawn Tractor (2014) Frame & PTO Lift Parts Diagram

Gold Lawn Tractor

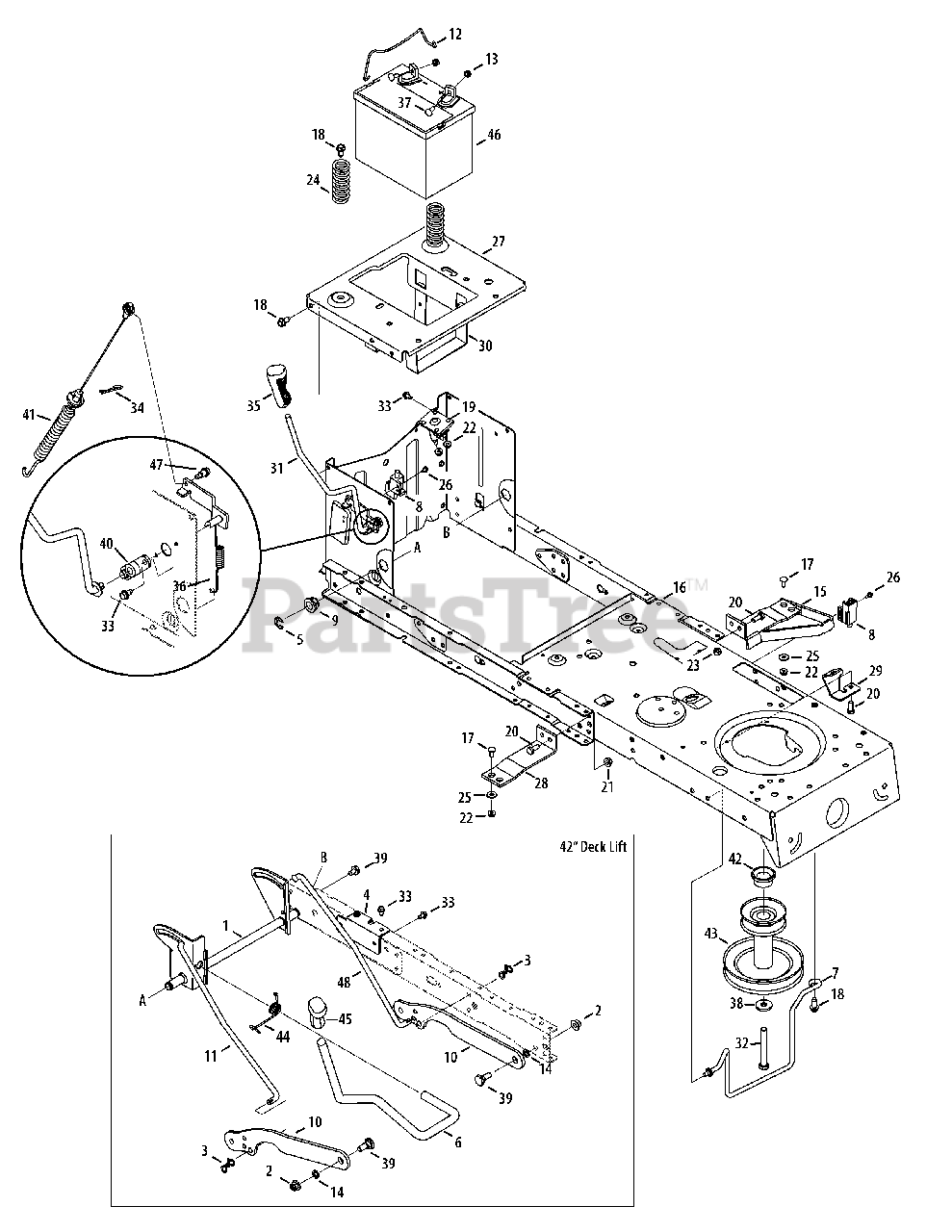

Frame & PTO Lift Parts Diagram

  • Title

1

MTD 683-04334-0637

Shaft Assembly Lift

$50.99

$

In Stock, only 3 left!

0

2

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

3

MTD 714-04040

Pin, Cotter, Bow Tie

$1.49

$

In Stock, Qty 20+

0

4

MTD 783-05389A-0637

Frame Brace Bracket

$7.99

$

Usually ships in 3-6 days

0

5

MTD 716-0106A

Ring, E-Type, .625 Dia.

$4.99

$

In Stock, Qty 15

0

6

MTD 747-05296

Deck Handle, Lift, 46" Deck

Note: 5/19/2014 & Before

$24.99

$

Usually ships in 3-6 days

0

6

MTD 747-04653A

Deck Handle, Lift, 46" Deck

Note: 5/19/2014 & After

$42.99

$

In Stock, only 3 left!

0

7

MTD 747-04857

Rod, Belt Keeper

$20.99

$

In Stock, Qty 20+

0

8

MTD 725-04363

Switch, Interlock

$14.99

$

In Stock, Qty 20+

0

9

MTD 941-0225

Bearing, Hex Flange

$6.99

$

In Stock, Qty 20+

0

10

MTD 783-0678C-0637

Deck Lift Link

$27.99

$

In Stock, Qty 9

0

11

MTD 747-06237

Lift Rod, RH
(Superseded to 747-06237A)

$9.99

$

In Stock, Qty 9

0

12

MTD 683-04448-0637

Battery Hold Down Rod

$9.99

$

In Stock, Qty 5

0

13

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

14

MTD 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

15

MTD 683-04195-0691

Support Bracket Assembly

$32.99

$

Usually ships in 3-6 days

0

16

MTD 683-05139-0691

Frame Assembly
(Superseded to 683-05139A-0637)

$193.99

$

Usually ships in 3-6 days

0

17

MTD 710-0703

Screw Carriage, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-04484

Screw, 5/16-18, .750

$3.49

$

In Stock, Qty 20+

0

19

MTD 725-06153

12V Solenoid
(Superseded to 725-06153A)

$39.99

$

In Stock, Qty 20+

0

20

MTD 710-3008

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

21

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

23

MTD 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

24

MTD 732-0735A

Compression Spacer, 1.314 x 2.55

$27.99

$

In Stock, Qty 8

0

25

MTD 736-0173

Flat Washer, .28 x .74 x .063

$3.99

$

In Stock, Qty 10

0

26

MTD 738-04237A

Shoulder Screw, #10-32 x .500

$5.99

$

In Stock, Qty 20+

0

27

MTD 783-04548D-0691

Seat Bracket, Frame

$44.99

$

Usually ships in 3-6 days

0

28

MTD 783-04637-0637

Bracket, Runing Board

$15.99

$

Usually ships in 3-6 days

0

29

MTD 783-04753-0637

Frame Support Bracket

$73.99

$

Usually ships in 3-6 days

0

30

MTD 783-04869A-0637

Bracket, Battery

$8.49

$

In Stock, Qty 12

0

31

MTD 647-05041-0637

PTO Handle Assembly

$11.99

$

In Stock, Qty 6

0

32

MTD 710-3157A

Hex Screw, 7/16-20 x 3.25

$9.99

$

In Stock, Qty 13

0

33

MTD 710-0599

Screw, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

34

MTD 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.49

$

In Stock, Qty 20+

0

35

MTD 720-04049A

Grip, Handle, 3/8

$14.99

$

In Stock, only 4 left!

0

36

MTD 732-04276A

Spring, Extension

$9.49

$

In Stock, Qty 20+

0

37

MTD 710-04666

Screw, Carriage, 1/4-20, .75, Gr5

$6.49

$

In Stock, Qty 7

0

38

MTD 736-0322

Washer, Flat, .450 x 1.250 x .164

$8.49

$

In Stock, Qty 20+

0

39

MTD 938-0380

Bolt, Shldr. .500 x .270 3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 16

0

40

MTD 741-04119A

Bearing, PTO

$4.99

$

In Stock, Qty 20+

0

41

MTD 946-05124

Deck Engage Cable
(Superseded to 946-05124A)

$22.99

$

In Stock, Qty 20+

0

42

MTD 750-0956

Spacer, 1.010 x 1.400 x .825

$17.99

$

In Stock, Qty 5

0

43

MTD 956-04067A

Engine Pulley
(Superseded to 956-04067B)

$76.99

$

In Stock, only 3 left!

0

44

MTD 732-04438

Spring, Torsion 46" Deck

$9.99

$

In Stock, only 1 left!

0

45

MTD 720-0298

Grip, Handle, 5/8

$40.99

$

Usually ships in 3-6 days

0

46

MTD 925-1707D

Battery, 155 CCA

$

$

Not available

47

MTD 738-04425

Shoulder Bolt, 1/4-28 x .342 x .335

$3.99

$

In Stock, Qty 20+

0

48

MTD 747-06253

Lift Rod, LH

$9.99

$

In Stock, Qty 7

0
