13AN779G766 - Troy-Bilt Pony Lawn Tractor (2005) Engine Assembly Parts Diagram

Pony Lawn Tractor

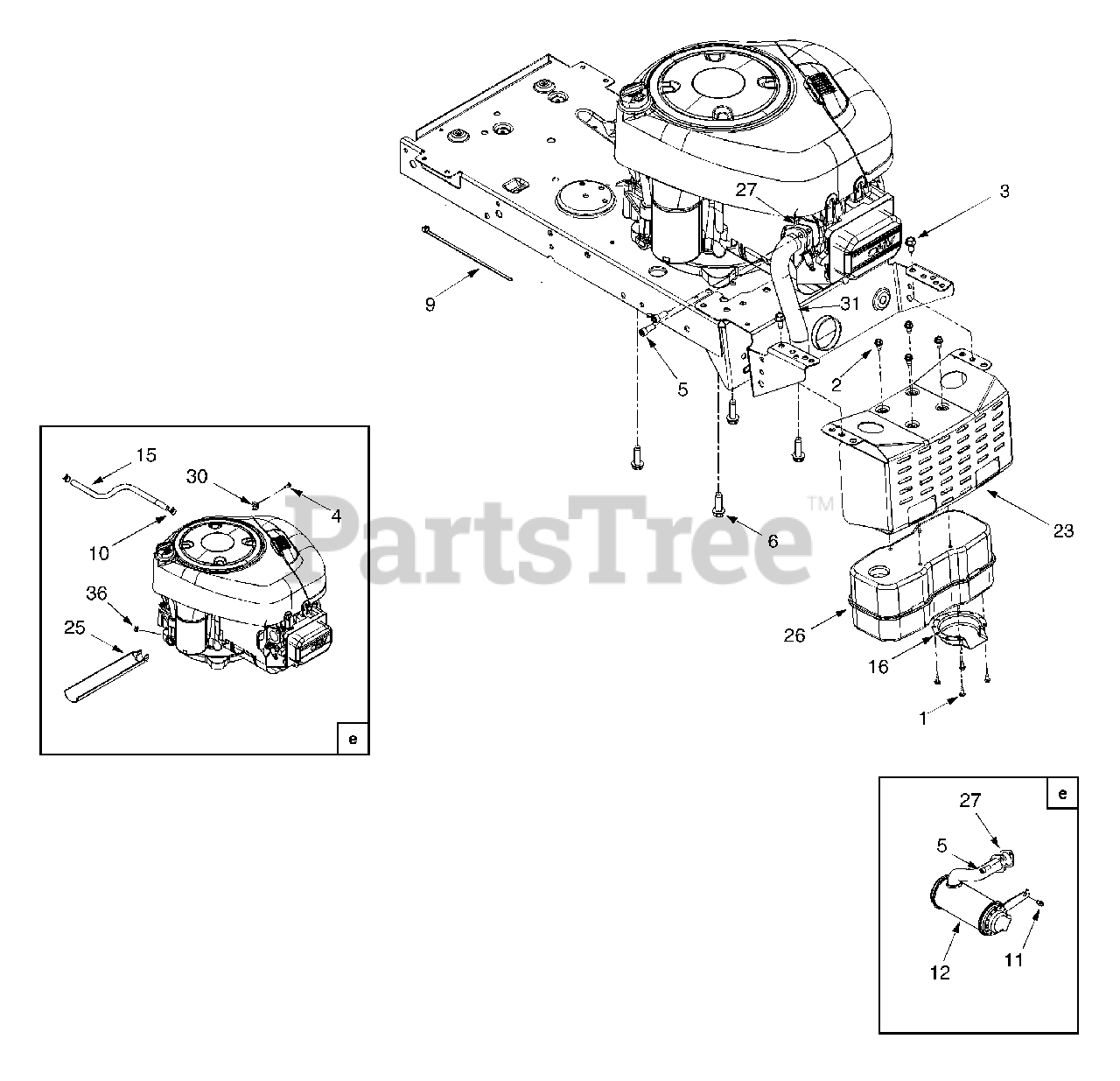

Engine Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-0148

Screw, #8-32, .375

$4.49

$

In Stock, Qty 10

0

2

Troy-Bilt 710-0896

Self-tapping Screw, 1/4-14, .625

$4.49

$

In Stock, Qty 8

0

3

Troy-Bilt 710-0726

Self-tapping Screw, 5/16-12, .75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1237

Screw, #10-32, .625

$4.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1314A

Socket Cap Screw, 5/16-18, .625

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

Self-tapping Screw, 3/8-16, 1.25

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 725-0157

Cable Tie, 7.4"

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 726-0205

Hose Clamp, .490

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

N/A

Muffler, Exhaust

$

$

Not available

15

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

16

Troy-Bilt 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, Qty 9

0

23

Troy-Bilt 783-0615D

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

783-0615D-0637

Troy-Bilt 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$67.99

$

In Stock, only 3 left!

0

$67.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 731-1682A

Oil Drain Sleeve

$8.49

$

In Stock, only 3 left!

0

26

Troy-Bilt 751-0617A

Muffer, Single Inlet
(Superseded to 951-0617C)

$158.99

$

In Stock, Qty 10

0

26

Troy-Bilt 751-10448

Muffer w/welded Exhaust Pipe, Single Inlet
(Superseded to 951-10448D)

$

$

Not available

27

Troy-Bilt 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, Qty 9

0

31

Troy-Bilt 751-0619B

Exhaust Pipe

$80.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

$4.99

$

In Stock, Qty 15

0
