13AO77BS066 (42 K) - Troy-Bilt Pony 42" Lawn Tractor (2021) Fuel Tank Parts Diagram

Pony 42" Lawn Tractor

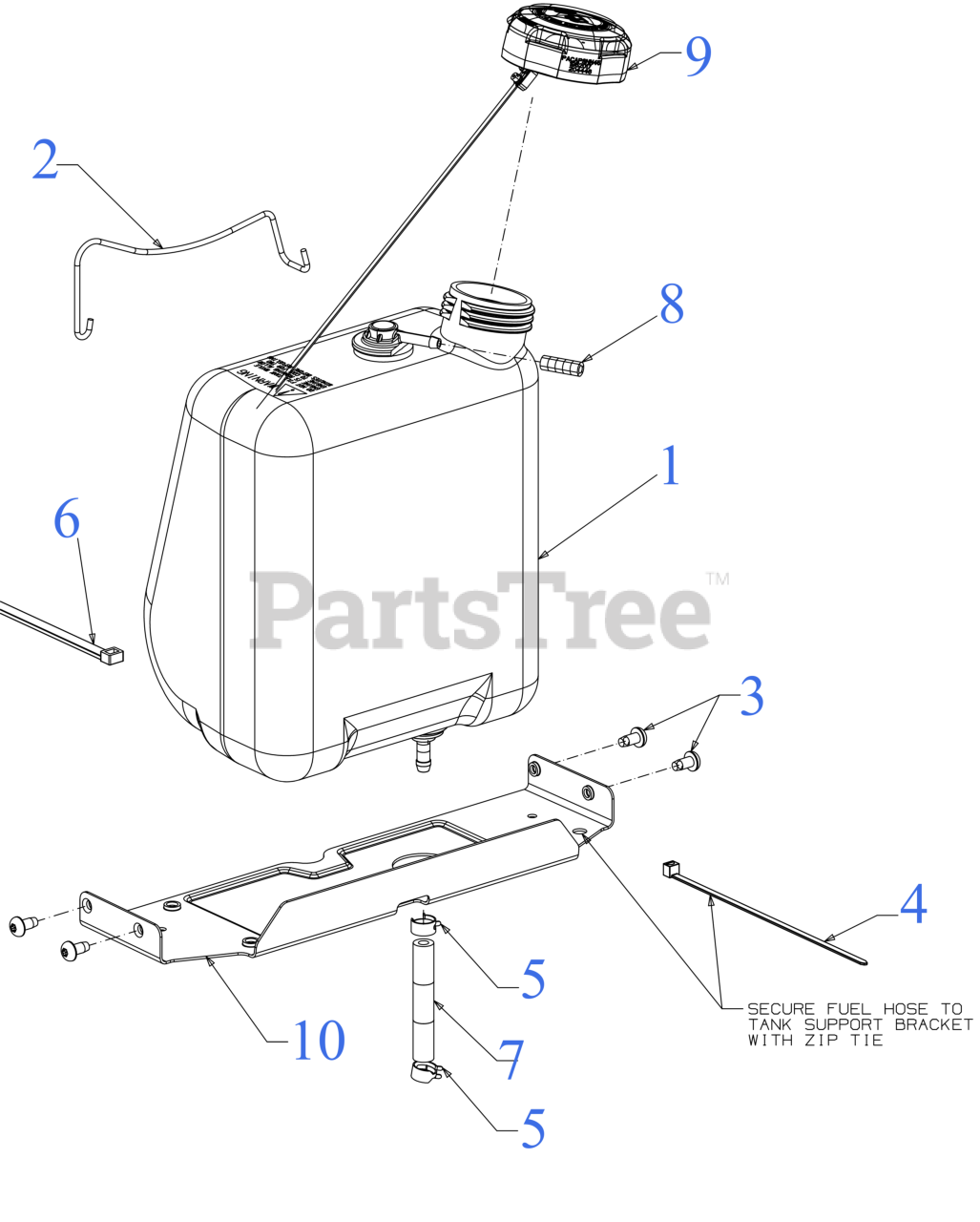

Fuel Tank Parts Diagram

  • Title

1

Troy-Bilt 951-04304B

FUEL TANK ASSEMBLY (1.36 Gal)

$

$

Not available

1

Troy-Bilt 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

$4.99

$

In Stock, Qty 8

0

1

Troy-Bilt 751-12118

ROLLOVER FUEL VALVE

$38.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 683-04448-0637

BATTERY ROD ASSEMBLY (POWDER BLACK)

$10.99

$

In Stock, only 3 left!

0

3

Troy-Bilt 710-05070A

SCREW 1/4-20 x .5

$7.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 726-0230

CABLE TIE 36"

$28.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 751-10349-13

FUEL HOSE LOW PERMEATION 13"

$18.99

$

In Stock, only 3 left!

0

8

Troy-Bilt 751-12089-28

VENT HOSE 3/16 ID 28"LG

$9.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 951-12179C

FUEL CAP W/TETHER

$40.99

$

In Stock, Qty 14

0

10

Troy-Bilt 783-07083A

FUEL TANK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-07083A-0637

Troy-Bilt 783-07083A-0637

Fuel Tank Bracket - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0
