13AO77BS266 (42 K) - Troy-Bilt Pony 42" Lawn Tractor (2021) Fuel Tank Parts Diagram

Pony 42" Lawn Tractor

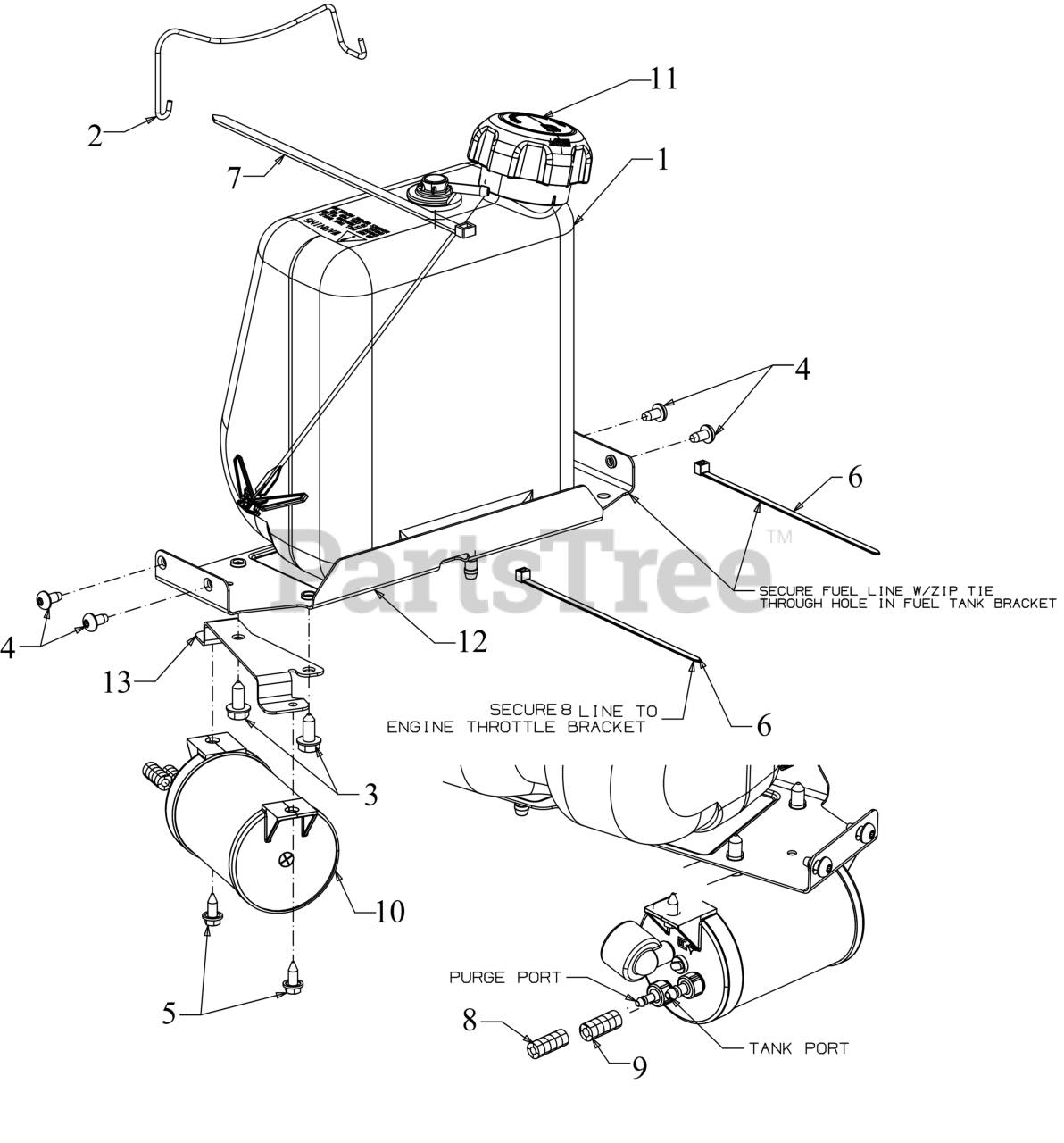

Fuel Tank Parts Diagram

  • Title

1

Troy-Bilt 951-04304

FUEL TANK ASSEMBLY
(Superseded to 951-04304B)

$

$

Not available

1

Troy-Bilt 751-12118

ROLLOVER FUEL VALVE

Note: (Not Shown)

$38.99

$

In Stock, Qty 6

0

1

Troy-Bilt 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 683-04448-0637

BATTERY ROD ASSEMBLY (POWDER BLACK)

$10.99

$

In Stock, Qty 5

0

3

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05070A

SCREW 1/4-20 x .5

$7.49

$

In Stock, Qty 5

0

5

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 726-0230

CABLE TIE 36"

$28.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 751-10749-40

FUEL HOSE LO PERMEATION 40"

$41.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 751-10750-28

FUEL HOSE LO PERMEATION 28"

$

$

Not available

10

Troy-Bilt 951-12372

CARBON CANISTER
(Superseded to 951-12372A)

$75.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-12426B

FUEL CAP (W/TETHER)

$43.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-07083A-0637

FUEL TANK BRACKET POWDER BLACK()

$30.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-09337

CARBON CANISTER BRACKET

Variations

Troy-Bilt 783-09337-0637

BRKT-CARBON CNSTR - POWDER BLACK (0637)

$14.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0
