13AO791G718 - MTD Pro Lawn Tractor (2005) Engine Accessories Parts Diagram

Pro Lawn Tractor

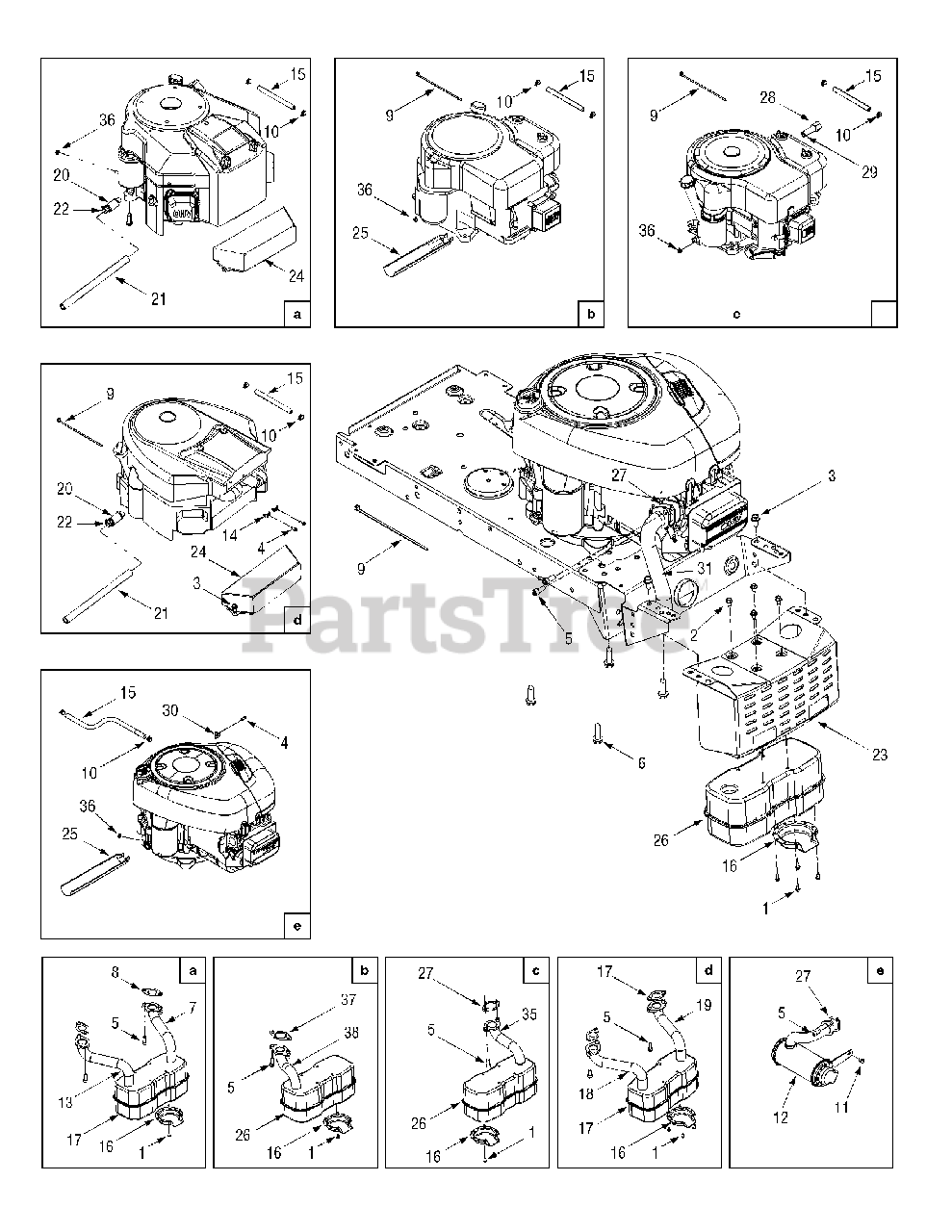

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0148

Screw, #8-32, .375

$3.99

$

In Stock, Qty 16

0

2

MTD 710-0896

Self-tapping Screw, 1/4-14, .625

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0726

Self-tapping Screw, 5/16-12, .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32, .625

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18, .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

7

MTD 751-0813A

LH Exhaust Pipe

$

$

Not available

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.49

$

In Stock, only 1 left!

0

9

MTD 725-0157

Cable Tie, 7.4"

$3.49

$

In Stock, only 2 left!

0

10

MTD 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0599

Screw, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

12

MTD 751-10111

Muffler, Exhaust

Note: NLA

$

$

Currently unavailable

13

MTD 751-0814A

RH Exhaust Pipe

$

$

Not available

14

MTD 751B221535

Casing Clamp

$9.49

$

In Stock, Qty 20+

0

15

MTD 751-10349

Fuel Line Hose

$

$

Not available

16

MTD 751-0564B

Muffler Deflector

$12.99

$

In Stock, Qty 20+

0

17

MTD 751-0616B

Muffler, Twin Inlet
(Superseded to 951-0616B)

$152.99

$

In Stock, Qty 20+

0

18

MTD 751-0650B

RH Exhaust Pipe

$58.99

$

Usually ships in 3-6 days

0

19

MTD 751-0651B

LH Exhaust Pipe

$56.99

$

Usually ships in 3-6 days

0

20

MTD 951-10517A

Oil Drain Valve

$22.99

$

In Stock, Qty 20+

0

21

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 20+

0

22

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 8

0

23

MTD 783-0615E-0637

Muffler Heat Shield

$59.99

$

In Stock, Qty 5

0

24

MTD 783-0625C

Engine Heat Shield

$111.99

$

Usually ships in 3-6 days

0

25

MTD 731-1682A

Oil Drain Sleeve

$7.49

$

In Stock, Qty 11

0

26

MTD 751-0617C

Muffer, Single Inlet
(Superseded to 951-0617C)

$138.99

$

In Stock, Qty 10

0

27

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

28

MTD 737-0143

Oil Drain Cap, 3/8-18

Note: NLA

$

$

Not available

29

MTD 937-0199

Oil Drain Pipe, 3/8-16, 2.0

$

$

Not available

30

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 2 left!

0

31

MTD 751-0619A

Exhaust Pipe
(Superseded to 751-0619B)

$70.99

$

In Stock, only 3 left!

0

32

MTD 710-0227

Screw, #8-18 x .50

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-3029

Hex Screw, 7/16-20, 1.25

$4.49

$

In Stock, Qty 15

0

34

MTD 711-1044A

Belt Keeper Pin, 5/16, 4.75

$8.49

$

In Stock, Qty 14

0

35

MTD 751-0622A

Exhaust Pipe

$76.99

$

Usually ships in 3-6 days

0

36

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

37

MTD 721-0348

Exhaust Gasket
(Superseded to TC-36365)

$3.49

$

In Stock, Qty 12

0

38

MTD 751-0620A

Exhaust Pipe

$75.99

$

In Stock, only 3 left!

0
