13AP60RP544 (LX 500) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) BLOWER HOUSING AND BAFFLE ASSEMBLY Parts Diagram

Lawn Tractor

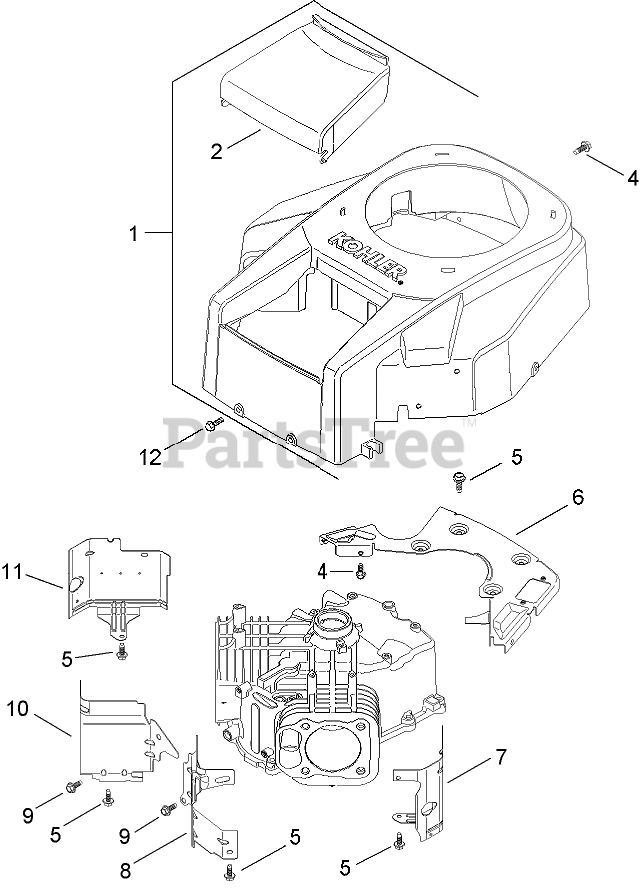

BLOWER HOUSING AND BAFFLE ASSEMBLY Parts Diagram

  • Title
1

Toro 32 027 03S

Housing-Blower (Includes2 and4103710S)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 32 096 08S

Cover-Air Cleaner

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro M545016S

Screw-Hex Flange, Thread Forming (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro M645016S

Screw-Hex Flange, Thread Forming (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 32 146 05S

Plate-Backing w/Rectifier-Rregulator Opening

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 32 063 05S

Baffle-Cylinder Barrel, No. 2 Side

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro 32 063 02S

Baffle-Valley, No. 2 Side

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro M545010S

Screw-Hex Flange, Thread Forming (M5x0.8x10)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 32 063 03S

Baffle-Valley, No. 1 Side

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 32 063 06S

Baffle-Cylinder Barrel, No. 1 Side

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro 24 086 12S

Screw-Hex Cap (M6x1.7x18)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 41 037 10S

Nameplate-Service

Note: Not illustrated

$

$

Currently unavailable
