13AP60RP544 (LX 500) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) ENGINE CONTROL ASSEMBLY Parts Diagram

Lawn Tractor

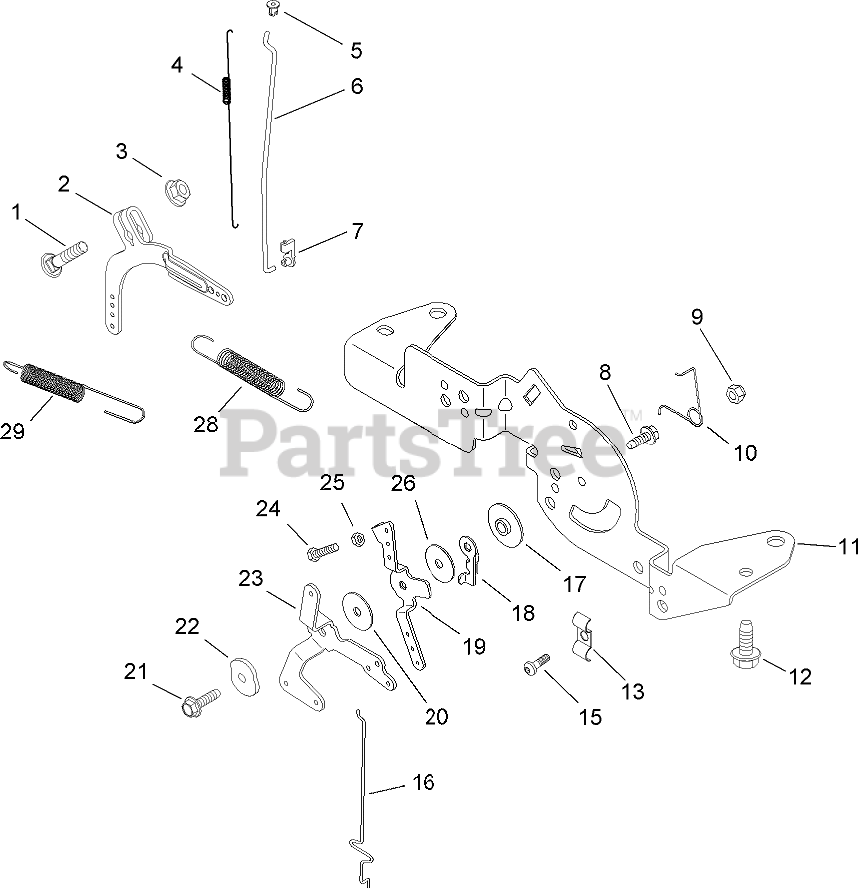

ENGINE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 24 211 03S

Bolt-Round Head Square Neck

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 24 090 33S

Lever-Governor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro M641060S

Nut-Hex Flange (M6x1.0)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 24 089 01S

Spring-Linkage

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro 25 158 08S

Bushing-Linkage Retaining

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Toro 24 079 04S

Linkage-Throttle

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

7

Toro 25 158 11S

Bushing-Throttle Linkage

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

8

Toro M545016S

Screw-Hex Flange, Thread Forming (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

9

Toro M547050S

Nut-Lock, Hex (M5x0.8)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

10

Toro 24 089 03S

Spring-Choke Return

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

11

Toro 24 126 161S

Bracket-Control

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

12

Toro M645016S

Screw-Hex Flange, Thread Forming (M6x1.0x16)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

13

Toro 47 237 02S

Clamp-Dual Conduit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

15

Toro 24 086 43S

Screw-Thread Forming

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

16

Toro 24 079 22 S

Linkage-Choke

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

17

Toro 24 112 27S

Spacer-Control ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

18

Toro 24 090 47S

Lever-Throttle Actuator

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

19

Toro 24 090 13S

Lever-Throttle Control

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

20

Toro 24 468 01S

Washer-Flat (5.5 mm)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

21

Toro M545020S

Screw-Hex Flange, Thread Forming (M5x0.8x20)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

22

Toro 41 468 03S

Washer-Spring (1/4)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

23

Toro 24 090 05S

Lever-Choke

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

24

Toro M403025S

Screw-Hex Head Cap (M4x0.7x25)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

25

Toro M446030S

Nut-Hex (M4x0.7)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

26

Toro 24 468 20S

Washer-Flat

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

28

Toro 24 089 55S

Spring-Governor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

29

Toro 24 089 25S

Spring-Governor

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
