13AP60RP544 (LX 500) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) EXHAUST STUD, GASKET AND DECAL ASSEMBLY Parts Diagram

Lawn Tractor

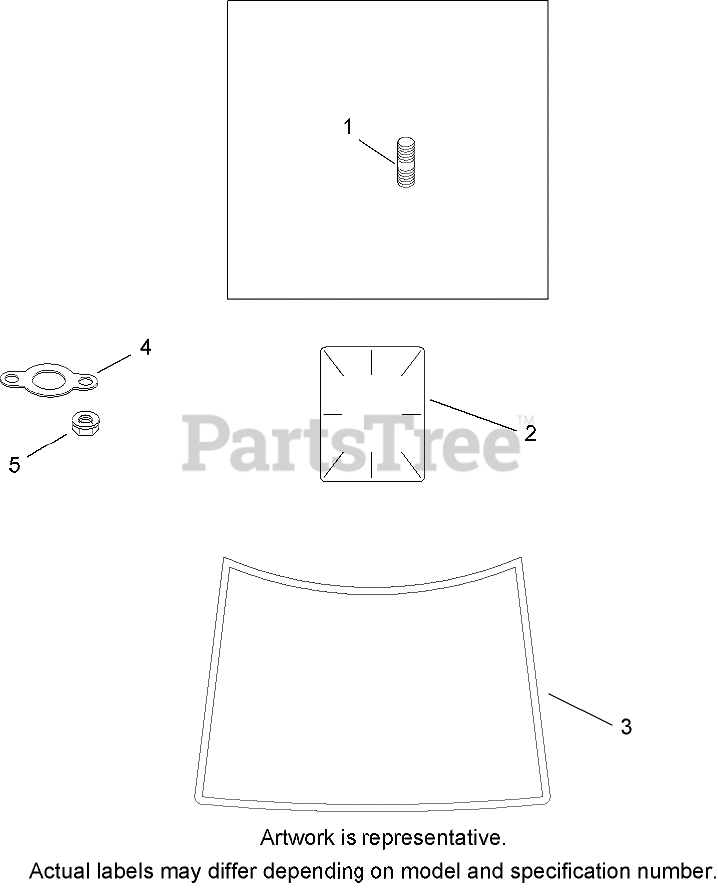

EXHAUST STUD, GASKET AND DECAL ASSEMBLY Parts Diagram

  • Title
1

Toro 25 072 04S

Stud (M8x1.25x33)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

2

Toro 25 113 39S

Decal-Clear Laminate

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

3

Toro 32 113 12S

Decal-22 HP

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

4

Toro 24 041 49S

Gasket-Exhaust Manifold

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

5

Toro M841080S

Nut-Hex Flange (M8x1.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable

6

Kohler 32 522 03

SHORTBLOCK (SV710-740)
(Superseded to 32 522 07)

Note: Not illustrated

$

$

Not available

7

Toro 32 755 01S

Overhaul Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Currently unavailable
